Specifications
Brand Name :
TIPTOP
Model Number :
Drill Pipe Power Tong
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 pc per month
Delivery Time :
5~30 days
Packaging Details :
seaworthy wooden box
Product Name :
Drill Pipe Power Tong
Tubular Size :
2 3/8''~8''
Standard :
API 7K
Key Word :
Handling Drill Pipe
Model :
ZQ127, ZQ203
Material :
Alloy Steel
Description

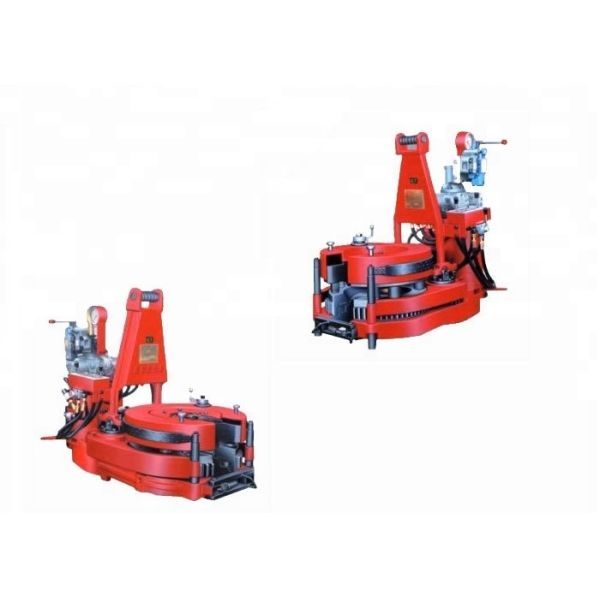

Rig Floor Handling Tool API 7K Drill Pipe Power Tong, Making up and Breaking Out Tool

The drill pipe power tong is an ideal wellhead tool for oil well drilling, widely applied for making-up and breaking-out in onshore and offshore drilling operations and workover operations. The open throat design of our drill pipe power tong allows the tongs to escape from drilling pipe freely with high mobility. The tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to API 7K.

Model ZQ127-25 ZQ162-50 ZQ203-100 ZQ203-125 ZQ127-25Ⅱ ZQ162-50Ⅱ ZQ203-100Ⅱ ZQ203-125Ⅱ ZQ203-100Ⅲ ZQ203-125Ⅲ
Size range Drill pipe mm 65-127 85-162 127-203 127-203 65-127 85-162 127-203 127-203 127-203 127-203
in 2 3/8''~3 1/2'' 2 3/8''~5'' 3 1/2''~8'' 3 1/2''~8'' 2 3/8''~3 1/2'' 2 3/8''~5'' 3 1/2''~8'' 3 1/2''~8'' 3 1/2''~8'' 3 1/2''~8''
Casing mm 65~127 114.3~153.7 　 　 65-127 114.3～153.7 　 　 　 　
in 2 3/8''~3 1/2'' 4 1/2''~ 5 1/2'' 　 　 3 1/2'' 4 1/2''~ 5 1/2'' 　 　 　 　
Tubing mm 65-127 138-156 　 　 65-127 138-156 　 　 　 　
in 2 3/8''~3 1/2'' 3 1/2''~4 1/2'' 　 　 3 1/2'' 3 1/2''~4 1/2'' 　 　 　 　
Max.torque kN.m 25 50 100 125 25 50 100 125 100 125
ft.lbf 18440 36880 73750 92200 18440 36880 73750 92200 73750 92200
Speed(High gear) rpm 65 60 40 40 65 60 40 40 40 40
Speed(Low gear) rpm 10.5 4.1 2.7 2.7 10.5 4.1 2.7 2.7 2.7 2.7
Air pressure MPa 0.5–0.9 0.5–0.9 0.5–0.9
psi 72–130 72–130 72–130
Pressure rating MPa 12 14 16.6 20.7 14 16 16.6 20.7 16.6 20.7
psi 1740 2030 2400 3000 2030 2320 2400 3000 2400 3000
Flow rating L/min 120 120 114 114 120 120 114 114 114 114
gpm 31.7 31.7 30 30 31.7 31.7 30 30 30 30
Shifting distance mm 1000 1000 1500 1500 1000 1000 1500 1500 　 　
in 39.4 39.4 59 59 39.4 39.4 59 59 　 　
Travel distance mm 　 　 　 　 　 　 　 　 0–3000 0–3000
in 　 　 　 　 　 　 　 　 0–118 0–118
Lifting distance mm 　 　 　 　 0–620 0–440 0–430 0–430 0–800 0–800
in 　 　 　 　 0–24.4 0–17.3 0–17 0–17 0–31.5 0–31.5
Weight kg 620 1500 2400 2650 700 1700 2500 2750 3250 3700
