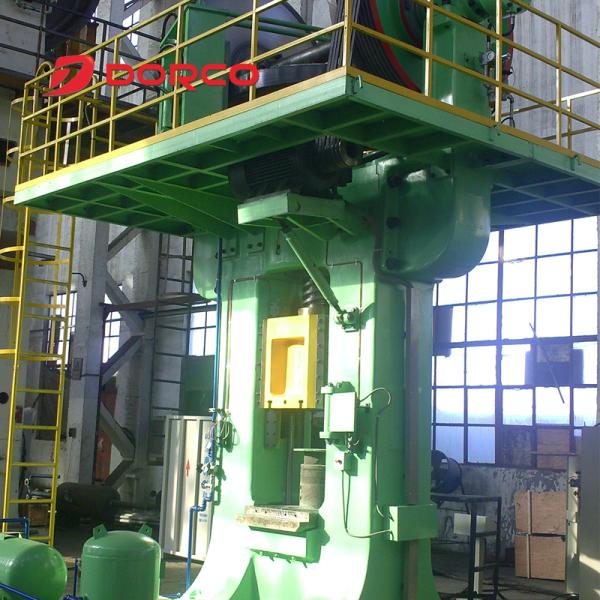

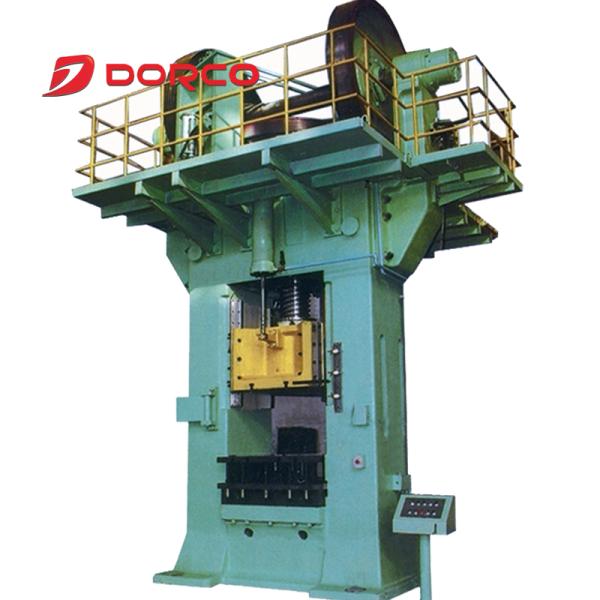

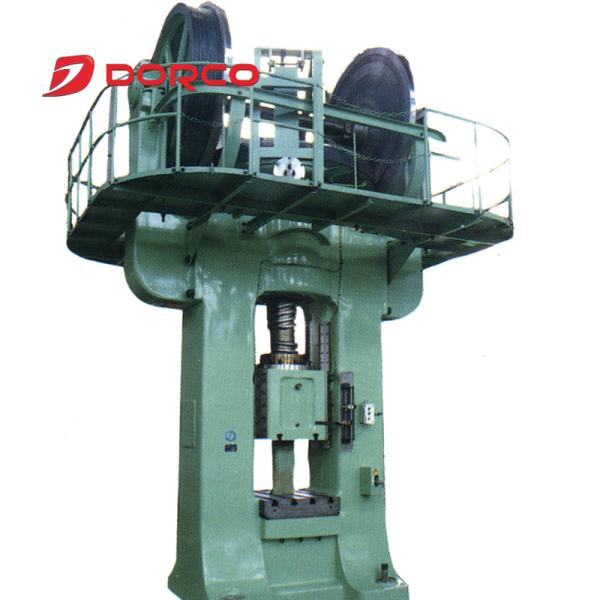

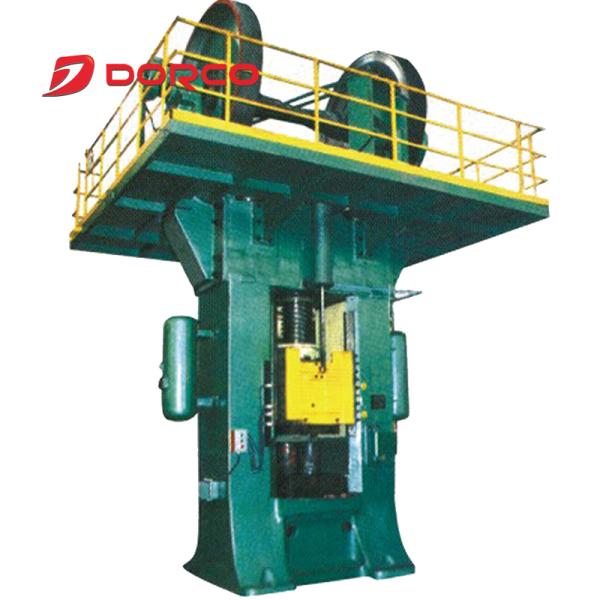

Dual Disc Friction Press 6300kN Force 55kw Motor
Dual Disc Friction Press 6300kN Force 55kw Motor
Dual Disc Friction Press 6300kN Force 55kw Motor
Dual Disc Friction Press 6300kN Force 55kw Motor
Dual Disc Friction Press 6300kN Force 55kw Motor
Dual Disc Friction Press 6300kN Force 55kw Motor
Dual Disc Friction Press 6300kN Force 55kw Motor
Dual Disc Friction Press 6300kN Force 55kw Motor
Specifications
Brand Name :
Duolek
Model Number :
630D
Place of Origin :
China
MOQ :
1 Set
Price :
60000 - 480000 USD Per Set
Payment Terms :
L/C,T/T
Delivery Time :
45 - 75 Working Days
Packaging Details :
After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Maximum top material force :
100kN
die height :
470mm
maximum stroke :
100mm
Power(w) :
55kw
Total weight :
≈42000kg
Top material method :
Pneumatic top material
Description
In the mechanical manufacturing industry, friction presses are more widely used and can be used to complete tasks such as forging, upsetting, bending, calibration, precision pressing, and stamping.

Integrated with mechanical, electrical, and pneumatic controls, it achieves sensitive and reliable operation with selectable strike energy.
The innovative translational brake system is fixed to the platform, providing strong braking force and ensuring the reliability of instantaneous braking at any point throughout the entire stroke.
The use of an integrated rack combined with a pull rod structure greatly enhances the overall strength and service life of the equipment.
Abandoning traditional shift forks, adopting dual control cylinders to directly drive the spindle, with a shorter transmission chain and more precise control.

Structural Description
This machine consists of a frame, transmission, flywheel, slider, control, brake, top material, air pipeline, centralized lubrication, electrical, platform and other parts.

Due to its high versatility in use, as well as the advantages of simple structure, installation, operation, and auxiliary equipment, and low cost, press machines are widely used in forging workshops and die forging workshops in industries such as mechanical manufacturing, automobiles, tractors, and aviation.

Double Disc Friction Screw Press Main Technical Prarmeters


Nominal force

6300kN

die height

470mm

Sports energy

80kJ

Thickness of workbench pad

180mm

Slide stroke

600mm

Motor power

55kw

Minimum sealing height

650mm

Top material method

Pneumatic top material

Stroke times

11min-1

Maximum top material force

100kN

Bottom size of slider

Workbench dimensions

left and right

700mm

left and right

820mm

front and back

760mm

front and back

920mm

Dimensions (l X w X h t)

4910X38005X6060

maximum stroke

100mm

Total weight

≈42000kg
