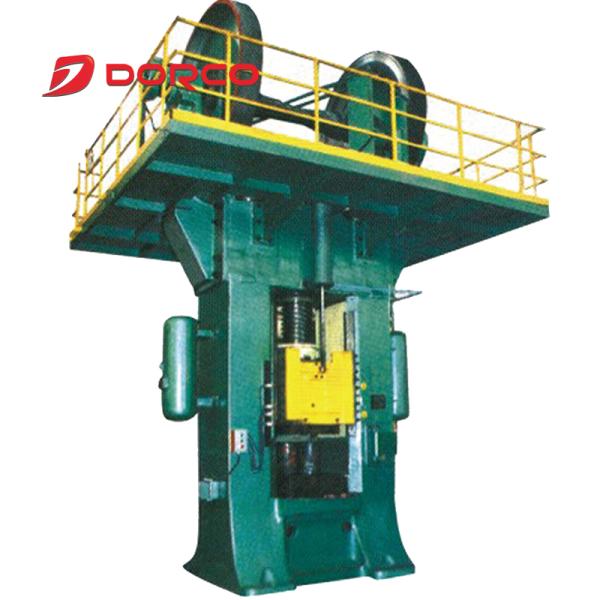

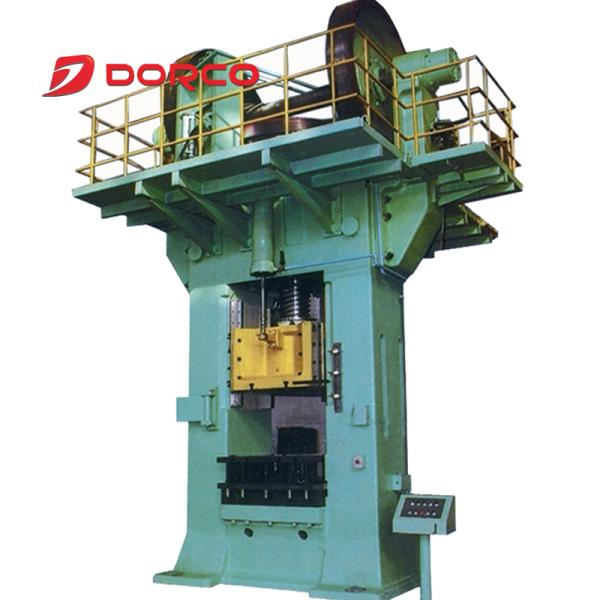

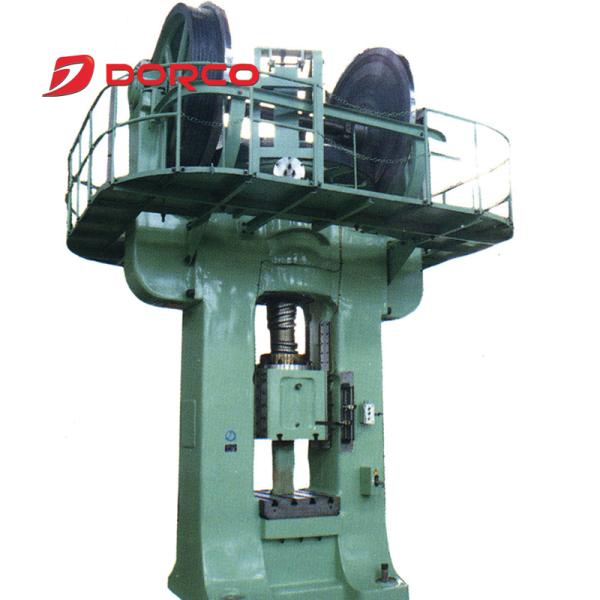

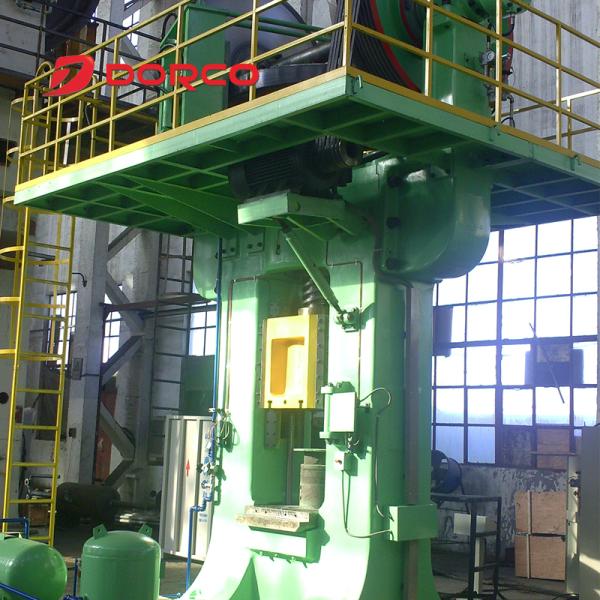

6300kN Double Disc Friction Press with 80kJ Striking Energy
6300kN Double Disc Friction Press with 80kJ Striking Energy
6300kN Double Disc Friction Press with 80kJ Striking Energy
6300kN Double Disc Friction Press with 80kJ Striking Energy
6300kN Double Disc Friction Press with 80kJ Striking Energy
6300kN Double Disc Friction Press with 80kJ Striking Energy
6300kN Double Disc Friction Press with 80kJ Striking Energy
6300kN Double Disc Friction Press with 80kJ Striking Energy
Specifications
Brand Name :
Duolek
Model Number :
630D
Place of Origin :
China
MOQ :
1 Set
Price :
60000 - 480000 USD Per Set
Payment Terms :
L/C,T/T
Delivery Time :
45 - 75 Working Days
Packaging Details :
After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Nominal force :
6300kN
Sports energy :
80kJ
maximum stroke :
100mm
Power(w) :
55kw
Total weight :
≈42000kg
Stroke times :
11min-1
Description

This dual disc friction press has strong versatility and can meet diverse pressure processing needs such as forging, bending, calibration, and precision pressing. It is an ideal choice for forging workshops in industries such as mechanical manufacturing, automotive, and aviation. It combines the advantages of diverse functions, easy installation, reliable operation, and affordability.


This machine has achieved multiple technological breakthroughs while retaining traditional advantages:


Advanced control: machine electrical joint control, high sensitivity, can pre-set processing energy, ensuring the reliability and consistency of operation.
Braking safety: The equipped translational braking device has strong braking force, rapid response, and can achieve effective braking at any position, with outstanding safety guarantee.
Stable body: The combination design of the integrated rack and pull rod makes the equipment body more stable and has stronger impact resistance.
Efficient transmission: The control system has been upgraded to a cylinder direct push type, which directly drives the spindle to move, resulting in more efficient power transmission and easier maintenance.



Nominal force

6300kN

die height

470mm

Sports energy

80kJ

Thickness of workbench pad

180mm

Slide stroke

600mm

Motor power

55kw

Minimum sealing height

650mm

Top material method

Pneumatic top material

Stroke times

11min-1

Maximum top material force

100kN

Bottom size of slider

Workbench dimensions

left and right

700mm

left and right

820mm

front and back

760mm

front and back

920mm

Dimensions (l X w X h t)

4910X38005X6060

maximum stroke

100mm

Total weight

≈42000kg
