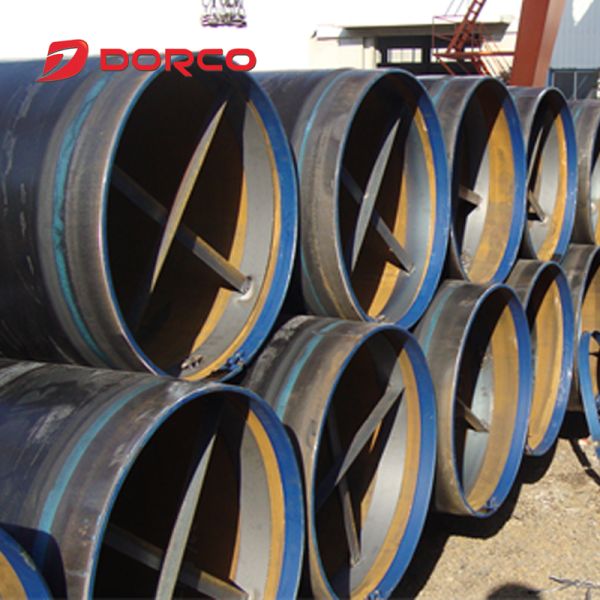

High Precision Straight Seam Welded Pipe Unit with Φ355 - Φ720 Mm Diameter and 6 - 22 Mm Thickness for Construction Pipe Piles
High Precision Straight Seam Welded Pipe Unit with Φ355 - Φ720 Mm Diameter and 6 - 22 Mm Thickness for Construction Pipe Piles
High Precision Straight Seam Welded Pipe Unit with Φ355 - Φ720 Mm Diameter and 6 - 22 Mm Thickness for Construction Pipe Piles
High Precision Straight Seam Welded Pipe Unit with Φ355 - Φ720 Mm Diameter and 6 - 22 Mm Thickness for Construction Pipe Piles
High Precision Straight Seam Welded Pipe Unit with Φ355 - Φ720 Mm Diameter and 6 - 22 Mm Thickness for Construction Pipe Piles
High Precision Straight Seam Welded Pipe Unit with Φ355 - Φ720 Mm Diameter and 6 - 22 Mm Thickness for Construction Pipe Piles
High Precision Straight Seam Welded Pipe Unit with Φ355 - Φ720 Mm Diameter and 6 - 22 Mm Thickness for Construction Pipe Piles
High Precision Straight Seam Welded Pipe Unit with Φ355 - Φ720 Mm Diameter and 6 - 22 Mm Thickness for Construction Pipe Piles
Specifications
Brand Name :
Duolek
Model Number :
ZFHGJ
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
200000 - 1190000 USD per set
Payment Terms :
,L/C,T/T
Delivery Time :
45 - 75 working days
Packaging Details :
After being wrapped with stretch film, it is shipped unpacked in the container.
Model :
DRC - 720 Straight Seam Welded Pipe Unit
Round pipe ( mm ) :
Φ 355 - Φ 720
Square pipe ( mm ) :
300 X 300 - 600 X 600
Thickness ( mm ) :
6 - 22
Speed ( m / min ) :
20
Features :
Easy to change specifications
Usage :
Construction (pipe pile)
External Diameter (mm) :
350 - 1600 (14" - 63")
Width (mm) :
6 - 60 (1/4" - 2.36")
Length (m) :
6 - 12
Name :
Straight Seam Welded Pipe Unit
Description

High frequency straight seam welded pipe unit
This production line is a specialized equipment for producing straight seam welded pipes in industries such as metallurgy, petroleum, construction, transportation, machinery, and vehicles. It uses hot-rolled steel strips as raw materials and produces round and rectangular pipes of the required specifications through cold bending and high-frequency welding methods.
This production line adopts mature, reliable, complete, and economically applicable production processes to ensure that the physical quality, cost, and various consumption indicators of the products reach a relatively advanced level. The products produced have strong competitiveness in terms of quality and price.
Production line process flow:
Raw material (strip steel coil) → uncoiling → storage → passive leveling → forming and rolling → high-frequency welding → removal of external burrs → zinc replenishment → spray cooling → sizing and shaping → rough straightening → cutting to length → pipe collection and bundling.
Straight seam submerged arc welded pipe unit
It is to open and level a steel plate of a certain width after longitudinal cutting and slitting, and then enter the forming machine. The fully automatic and accurate control flexible forming is used, and the steel plate is bent into a circular pipe using rollers. The steel pipe is pre welded using gas shielded welding. Then cut off and perform submerged arc welding on the inner and outer welds of the steel pipe offline. After water pressure testing, flat head chamfering, weld seam and pipe body inspection, qualified submerged arc welded pipes are obtained.


Technical Specifications
Model Round Pipe (mm) Square Pipe (mm) Thickness (mm) Speed (m/min)
DRC-12 Φ4-Φ12 / 0.2-0.5 120
DRC-16 Φ6-Φ16 / 0.2-0.8 120
DRC-20 Φ8-Φ20 6x6-15x15 0.3-1.0 120
DRC-25 Φ10-Φ25 7x7-19x19 0.3-1.5 120
DRC-32 Φ12-Φ32 9x9-25x25 0.5-2.0 120
DRC-50 Φ20-Φ50 15x15-39x39 0.8-3.0 120
DRC-76 Φ32-Φ76 25x25-59x59 1.2-4.0 120
DRC-89 Φ42-Φ89 35x35-70x70 1.5-4.5 110
DRC-114 Φ48-Φ114 40x40-90x90 1.5-4.5 70
DRC-140 Φ60-Φ140 50x50-110x110 2.0-5.0 60
DRC-165 Φ76-Φ165 60x60-130x130 2.0-6.0 55
DRC-219 Φ89-Φ219 70x70-170x170 2.0-8.0 50
DRC-273 Φ114-Φ273 90x90-210x210 3.0-10.0 45
DRC-325 Φ140-Φ325 110x110-250x250 4.0-12.7 40
DRC-377 Φ165-Φ377 130x130-280x280 4.0-14.0 35
DRC-406 Φ219-Φ406 170x170-330x330 6.0-16.0 30
DRC-508 Φ273-Φ508 210x210-400x400 6.0-18.0 25
DRC-660 Φ325-Φ660 250x250-500x500 6.0-20.0 20
DRC-720 Φ355-Φ720 300x300-600x600 6.0-22.0 20
Size Range by Application
Usage External Diameter (mm) Weight (mm) Length (m)
Oil and gas pipelines 406 - 1524 (16" - 60") 6 - 40 (1/4" - 1.57") 8 - 12.1
Construction (pipe pile) 350 - 1600 (14" - 63") 6 - 60 (1/4" - 2.36") 6 - 12
Rolling tube 1200 - 3800 (47.24" - 150") 12 - 120 (1/2" - 4.7") ≤3.2
Custom specifications available according to customer requirements
High Precision Straight Seam Welded Pipe Unit with Φ355 - Φ720 Mm Diameter and 6 - 22 Mm Thickness for Construction Pipe Piles High Precision Straight Seam Welded Pipe Unit with Φ355 - Φ720 Mm Diameter and 6 - 22 Mm Thickness for Construction Pipe Piles
Application Scope
Specialized equipment for producing straight seam welded pipes in industries including metallurgy, petroleum, construction, transportation, machinery, and vehicles.
High Precision Straight Seam Welded Pipe Unit with Φ355 - Φ720 Mm Diameter and 6 - 22 Mm Thickness for Construction Pipe Piles
Customer Factory Inspection
High Precision Straight Seam Welded Pipe Unit with Φ355 - Φ720 Mm Diameter and 6 - 22 Mm Thickness for Construction Pipe Piles
Frequently Asked Questions
What information do we need customers to provide?
Duolek has an R&D Center focused on product development. We can design and modify products according to customer requirements, maintaining an open approach to customer service.
What's your quality control system?
We operate an ISO9001 Quality Management System. Our quality control includes materials inspection, machining process control, finished product testing, and pre-shipment inspection. Each step has dedicated inspectors with recorded test results.
What payment terms do you accept?
We prefer bank transfer (T/T): 30% deposit with order confirmation and 70% before shipment. Letters of Credit (L/C) are accepted for orders over $200,000 USD.
What is your warranty policy?
All products carry a one-year warranty from delivery date against defects in materials and workmanship. Normal wear and tear are not covered.
