Aluminum Alloy Spiral Fast Door Security Heavy Metal Doors Industrial Windproof
Aluminum Alloy Spiral Fast Door Security Heavy Metal Doors Industrial Windproof
Aluminum Alloy Spiral Fast Door Security Heavy Metal Doors Industrial Windproof
Aluminum Alloy Spiral Fast Door Security Heavy Metal Doors Industrial Windproof
Specifications
Brand Name :
YOHO
Model Number :
High Speed Stacking Door
Certification :
ISO 9001/CE
Place of Origin :
China
MOQ :
IUNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300 unit per month
Delivery Time :
10~15DAYS
Packaging Details :
plywood package
Name :
Spiral Fast Door
Color :
Yellow/Blue/Red/Grey/White/Transparent
Size :
3x3 m or customized (max size:6x8m)
Voitage :
380V or 220V
Panel Material :
Anti-skid Checkered Plate
Material :
PVC curtain / Galvanized steel / Stainless steel
PVC Door Curtain Thickness :
0.8–1.2 mm
Power :
0.75-1.5KW
Door Width :
1000mm–12000mm
Door Height :
1500mm–12000mm
Opening speed :
0.6–1.2 m/s (adjustable)
Closing speed :
0.6 m/s (adjustable)
Application :
Steel Plants
Description

Aluminum Alloy Spiral Fast Door Security Heavy Industrial Metal Electric Automatic Windproof For Steel Plants

Steel plants operate in demanding industrial environments. The Industrial High Speed Stacking Door provides reliable access for steel production facilities.

The High Speed Stacking Door is a specialized Heavy Duty High Speed Door for steel plants and metallurgical facilities. Built to withstand harsh environments, dust, vibration, and strong airflow, this Industrial High Speed Stacking Door ensures reliable access control in extreme industrial conditions.

Product Specifications

Parameter Description
Special Door Type High Speed Stacking Door
Opening Method Electric Side Opening
Maximum Dimensions Door width: 1000mm–12000mm, Door height: 1500mm–12000mm
Operating Speed Opening speed: 0.6–1.2 m/s (adjustable)
Closing speed: 0.6 m/s (adjustable)
Door Curtain Material 0.8–1.2 mm thick curtain; available colors: Blue, Orange, Gray
Frame Material Standard track frame: Galvanized steel with powder coating
Optional upgrade: Stainless steel
Project Solution Capability 3D model design
Surface Finishing Finished
Sealing Performance High-quality brush sealing on tracks, bottom equipped with EPDM sealing structure
Wind Resistance Up to Class 6 wind, can be reinforced to Class 8
Manual Operation In case of power failure or malfunction, the door can be manually opened using a standard wrench
Power Supply Requirements Three-phase 380V/50Hz, IP54 control box, compliant with national electrical safety standards
Insulation Protection IP54, waterproof and dustproof for harsh environments
Opening/Closing Control Standard one-button operation with emergency stop; optional control methods: Radar sensor, loop detector, pull cord switch, remote control
Pre-reserved Ports Electrical system pre-reserved for: infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock; highly compatible
Control System (Servo System) Uses dedicated servo system with DSP chip core

System sets door opening height based on incremental encoder signals from the motor and limit switch signals

LED display shows fault codes

Direction protection: controller reports error if motor wiring is reversed; door remains stationary

Torque loop, position loop, and speed loop fully closed

Motor can stop at exact position without using an electromagnetic brake

Product Features

  • Heavy duty structure
  • Stable operation in harsh environments
  • Suitable for large vehicles
  • Automatic industrial control

Product Advantages

  • Designed for heavy industry use
  • Supports continuous production
  • Durable under vibration and dust
  • Improves logistics efficiency

Applications

  • Steel rolling mills
  • Metal processing plants
  • Raw material transfer zones

Feature Highlight: Heavy Industry Adaptation

This high speed door for heavy industry withstands extreme working conditions.

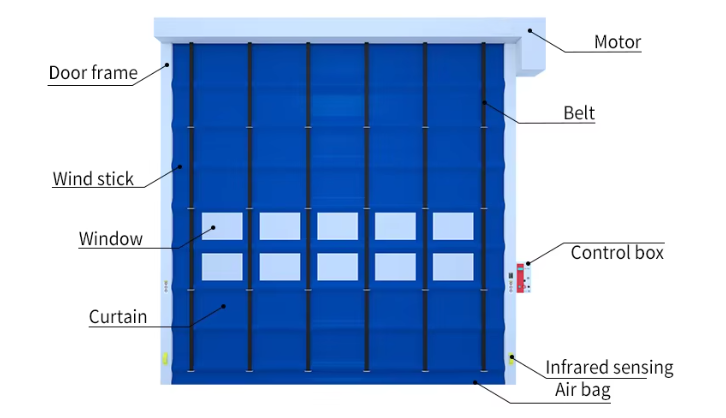

The component of product

Aluminum Alloy Spiral Fast Door Security Heavy Metal Doors Industrial Windproof

Options of Door Opening ways

our door's opening way has the push buttom,motion sensor,induction loop,remote control,pull swith,infrared light curtain and so on.

Aluminum Alloy Spiral Fast Door Security Heavy Metal Doors Industrial Windproof

FAQ

Q1: Is this suitable for steel factories?
Yes, it is a High Speed Door for Heavy Industry.

Q2: Can it handle harsh environments?
Yes, it is designed for extreme industrial conditions.

Q3: Is wind resistance important here?
Yes, steel plants often have strong airflow.

Q4: Can it be customized?
Yes, heavy-duty customization is available.
