Specifications
Brand Name :
YOHO
Model Number :
High Speed Stacking Door
Certification :
ISO 9001/CE
Place of Origin :
China
MOQ :
IUNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300 unit per month
Delivery Time :
10~15DAYS
Packaging Details :
plywood package
Color :
Yellow/Blue/Red/Grey/White/Transparent
PVC Door Curtain Thickness :
0.8–1.2 mm
Size :
3x3 m or customized (max size:6x8m)
Voitage :
380V or 220V
Name :
High-Speed PVC Industrial Door
Panel Material :
Anti-skid Checkered Plate
Material :
PVC curtain / Galvanized steel / Stainless steel
Power :
0.75-1.5KW
Door Width :
1000mm–12000mm
Door Height :
1500mm–12000mm
Opening speed :
0.6–1.2 m/s (adjustable)
Closing speed :
0.6 m/s (adjustable)
Application :
Logistics Transit Warehouses
Description

The Latest DesignIndustrial High Speed Stacking Door Automatic Rolling Shutter Door Pvc For Logistics Transit Warehouses

The High Speed Stacking Door is a professional High Speed Industrial Door for logistics transfer hubs and cross-docking centers. Designed for fast truck turnaround and intensive forklift movement, this Industrial High Speed Stacking Door ensures rapid opening, strong wind resistance, and reliable operation in logistics-heavy environments.

Product Specifications

Parameter Description
Special Door Type High Speed Stacking Door
Opening Method Electric Side Opening
Maximum Dimensions Door width: 1000mm–12000mm, Door height: 1500mm–12000mm
Operating Speed Opening speed: 0.6–1.2 m/s (adjustable)
Closing speed: 0.6 m/s (adjustable)
Door Curtain Material 0.8–1.2 mm thick curtain; available colors: Blue, Orange, Gray
Frame Material Standard track frame: Galvanized steel with powder coating
Optional upgrade: Stainless steel
Project Solution Capability 3D model design
Surface Finishing Finished
Sealing Performance High-quality brush sealing on tracks, bottom equipped with EPDM sealing structure
Wind Resistance Up to Class 6 wind, can be reinforced to Class 8
Manual Operation In case of power failure or malfunction, the door can be manually opened using a standard wrench
Power Supply Requirements Three-phase 380V/50Hz, IP54 control box, compliant with national electrical safety standards
Insulation Protection IP54, waterproof and dustproof for harsh environments
Opening/Closing Control Standard one-button operation with emergency stop; optional control methods: Radar sensor, loop detector, pull cord switch, remote control
Pre-reserved Ports Electrical system pre-reserved for: infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock; highly compatible
Control System (Servo System) Uses dedicated servo system with DSP chip core

System sets door opening height based on incremental encoder signals from the motor and limit switch signals

LED display shows fault codes

Direction protection: controller reports error if motor wiring is reversed; door remains stationary

Torque loop, position loop, and speed loop fully closed

Motor can stop at exact position without using an electromagnetic brake

Product Features

  • Fast opening industrial door system
  • High frequency operation capability
  • Wind resistant for dock areas
  • Automated control options

Product Advantages

  • Reduces loading and unloading time
  • Improves cross-docking efficiency
  • Suitable for 24/7 logistics operations
  • Reliable performance under heavy traffic

Applications

  • Cross-docking hubs
  • Transit logistics warehouses
  • Distribution transfer centers

Feature Highlight: High Frequency Performance

Designed as a high frequency industrial door, it operates thousands of cycles per day without performance loss.

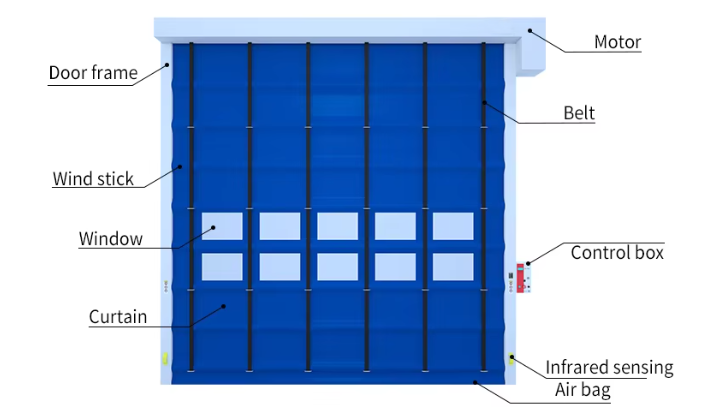

The component of product

The Latest DesignIndustrial High Speed Stacking Door Automatic Rolling Shutter Door Pvc For Logistics Transit Warehouses

Options of Door Opening ways

our door's opening way has the push buttom,motion sensor,induction loop,remote control,pull swith,infrared light curtain and so on.

The Latest DesignIndustrial High Speed Stacking Door Automatic Rolling Shutter Door Pvc For Logistics Transit Warehouses

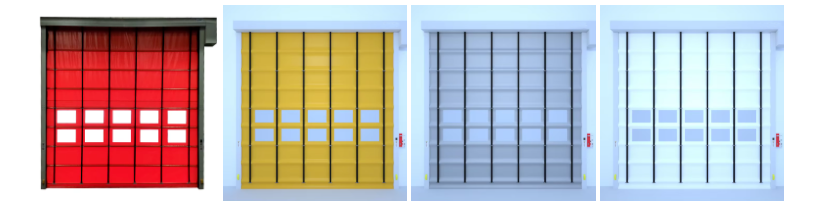

Various of colors to choose

The Latest DesignIndustrial High Speed Stacking Door Automatic Rolling Shutter Door Pvc For Logistics Transit Warehouses

FAQ

Q1: Is this suitable for logistics centers?
Yes, it is a High Speed Door for Logistics Center.

Q2: Can it handle frequent vehicle traffic?
Yes, it is designed for continuous forklift and pallet movement.

Q3: Does it support outdoor installation?
Yes, it can be used as an Outdoor High Speed Door.

Q4: Is it better than sectional doors?
Yes, stacking doors open faster and handle higher traffic volumes.
