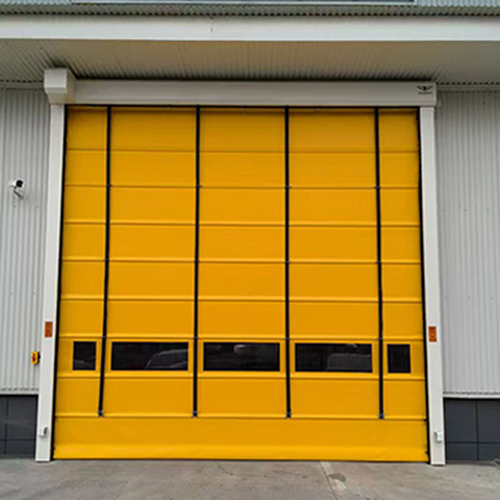

High Speed Stacking Door With Temperature Stability For Food Processing Plants

The High Speed Stacking Door for food processing plants is designed to improve workflow efficiency, hygiene, and safety in modern food production facilities.

Frequent material and personnel movement between preparation, processing, and packaging areas can increase the risk of cross-contamination and energy loss. This door combines a fast-opening insulated curtain, robust servo-controlled motor system, and advanced safety features to ensure high-frequency operation while maintaining clean and controlled production environments.

Product Parameters

Product Advantages

Enhance Food Safety

• Infrared sensors and bottom soft edge prevent contamination accidents
• Smooth PVC curtain reduces dust and particle accumulation

Maximize Production Efficiency

• High-speed opening and closing minimizes workflow interruptions
• Supports high-frequency operation for busy processing lines

Energy & Temperature Control

• Tight EPDM sealing at the bottom and track brush sealing reduce energy loss
• Maintains stable ambient temperature between processing zones

Durable and Reliable

• Galvanized steel or stainless steel frame suitable for wet and harsh food processing environments
• Servo motor with gearbox and brake system ensures thousands of cycles per day

Product Features

Door Dimensions and Construction

• Maximum Dimensions: Width 1000–12000 mm, Height 1500–12000 mm
• Curtain Material: 0.8–2.0 mm PVC; colors: Blue, Orange, Gray
• Frame & Track: Standard galvanized steel with powder coating; optional stainless steel
• Wind Resistance: Class 6 (reinforced to Class 8)

Operating Speed

• Opening Speed: 0.6–1.2 m/s (adjustable)
• Closing Speed: 0.6 m/s (adjustable)

Control & Safety

• DSP-based servo control system with torque, position, and speed loops fully closed
• LED display for fault codes
• Direction protection prevents motor damage

Applications

The High Speed Stacking Door is ideal for food processing facilities, including:

• Internal passages between preparation, processing, and packaging areas
• High-frequency loading and unloading corridors
• Material handling zones with forklifts and pallet jacks
• Ambient-temperature storage and production sections
• Areas requiring hygiene compliance and fast internal traffic

Frequently Asked Questions (FAQ)

Can this door be used in cold storage rooms?

No. This High Speed Stacking Door is designed for ambient-temperature areas only.

How does it maintain hygiene in food plants?

Smooth PVC curtain surfaces and tight sealing reduce dust, particle accumulation, and cross-contamination risks.

Is it suitable for high-frequency operation?

Yes. The servo motor system supports thousands of cycles per day, ideal for busy food processing lines.

Can the door size and frame material be customized?

Yes. Width, height, curtain color, and frame material (galvanized steel or stainless steel) can be customized.
