Adjustable Operating Speed Heavy Duty Industrial PVC Stacking Door For Large Openings
Adjustable Operating Speed Heavy Duty Industrial PVC Stacking Door For Large Openings
Adjustable Operating Speed Heavy Duty Industrial PVC Stacking Door For Large Openings
Adjustable Operating Speed Heavy Duty Industrial PVC Stacking Door For Large Openings
Specifications
Brand Name :
YOHO
Model Number :
High Speed Stacking Door
Certification :
ISO 9001/CE
Place of Origin :
China
MOQ :
IUNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300 unit per month
Delivery Time :
10~15DAYS
Packaging Details :
plywood package
Color :
Yellow/Blue/Red/Grey/White/Transparent
PVC Door Curtain Thickness :
0.8–1.2 mm
Size :
3x3 m or customized (max size:6x8m)
Voitage :
380V or 220V
Name :
High-Speed PVC Industrial Door
Panel Material :
Anti-skid Checkered Plate
Material :
PVC curtain / Galvanized steel / Stainless steel
Power :
0.75-1.5KW
Door Width :
1000mm–12000mm
Door Height :
1500mm–12000mm
Opening speed :
0.6–1.2 m/s (adjustable)
Closing speed :
0.6 m/s (adjustable)
Application :
Large Openings
Description
High Speed Stacking Door for Large Industrial Openings
Engineered for demanding industrial environments, the High Speed Stacking Door is designed to handle oversized entrances and continuous operation. Its stacking lifting mechanism ensures smooth movement even under high wind pressure, making it ideal for large-scale facilities.
Core Benefits
  • Optimized for Large Industrial Entrances: Supports extra-wide and extra-high door openings up to 12 meters
  • Fast Response Opening System: High-speed operation improves workflow efficiency and reduces waiting time
  • Strong Structural Stability: Reinforced frame and curtain system enhance durability under heavy use
  • Weather & Dust Protection: Equipped with sealing system to reduce dust, airflow, and contamination
Technical Specifications
Parameter Description
Maximum Dimensions Door width: 1000mm-12000mm, Door height: 1500mm-12000mm
Operating Speed Opening speed: 0.6-1.2 m/s (adjustable)
Closing speed: 0.6 m/s (adjustable)
Door Curtain Material 0.8-1.2 mm thick curtain; available colors: Blue, Orange, Gray
Frame Material Standard track frame: Galvanized steel with powder coating
Optional upgrade: Stainless steel
Sealing Performance High-quality brush sealing on tracks, bottom equipped with EPDM sealing structure
Wind Resistance Up to Class 6 wind, can be reinforced to Class 8
Manual Operation In case of power failure or malfunction, the door can be manually opened using a standard wrench
Power Supply Requirements Three-phase 380V/50Hz, IP54 control box, compliant with national electrical safety standards
Insulation Protection IP54, waterproof and dustproof for harsh environments
Opening/Closing Control Standard one-button operation with emergency stop; optional control methods: Radar sensor, loop detector, pull cord switch, remote control
Pre-reserved Ports Electrical system pre-reserved for: infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock; highly compatible
Adjustable Operating Speed Heavy Duty Industrial PVC Stacking Door For Large Openings
Installation Requirements
All measurements are taken indoors, with at least three points measured for each value:
  • H - Doorway height: Distance from the floor to the top of the doorway
  • B - Doorway opening width: Distance from the left edge to the right edge of the doorway
  • h - Ceiling clearance: Distance from the top of the doorway to the ceiling, which must be at least 900 mm
  • b1/b2 - Side clearance: Distance from the corresponding edge of the doorway to the obstacle on the left/right side, which must be at least 350 mm
When measuring H and B, the maximum value is taken as the final dimension. When measuring h, b1, and L, the minimum value is taken as the final dimension.

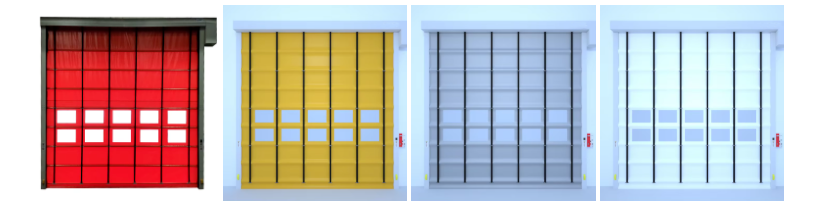

Available Color Options
Adjustable Operating Speed Heavy Duty Industrial PVC Stacking Door For Large Openings
Industrial Application Scenarios
  • Metallurgical Industry: Handles high temperature and dust-intensive environments
  • Logistics Terminals: Enhances traffic efficiency for forklifts and trucks
  • Manufacturing Plants: Separates different production zones efficiently
Operational Advantages
  • Energy Efficiency Improvement: Fast operation reduces air exchange
  • Reduced Downtime: Stable servo system minimizes maintenance
  • Enhanced Safety: Multiple sensors ensure safe operation
Frequently Asked Questions
What safety features are included?
Infrared sensors, emergency stop, torque protection, and obstacle detection.
Is customization available?
Yes, full OEM/ODM customization is supported.
What industries use stacking doors?
Steel plants, logistics centers, factories, and heavy industrial environments.
