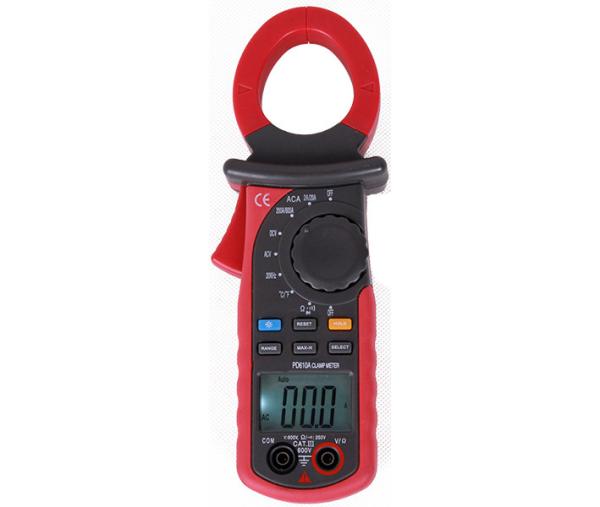

AC DC digital clamp on meter 20Mhz High frequency for industry
AC DC digital clamp on meter 20Mhz High frequency for industry
Specifications
Brand Name :
HD or OEM
Model Number :
610A
Certification :
CE
Place of Origin :
Shenzhen China
MOQ :
500
Price :
Negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
1 ,000PCS/week
Delivery Time :
30-35 days
Packaging Details :
Gift box
Color :
Black
Holster :
Red
Brand :
HD or OEM
MOQ :
200pcs
Test :
AC and DC
Frequency :
20Mhz
Description

AC DC digital clamp on meter 20Mhz High frequency for industry


Quik details :

Place of Origin : Shenzhen ,China
Model : 610A
Brand Name : HD , OEM
Measuring Current Range : 20A-1000A
Measuring Voltage Range :1000V
Measuring Resistance Range : 2KΩ-20MΩ
Frequency : 2KHz-20MHz
Temperature : 0-1000C
Weight : 450g
MOQ : 200PCS
Payment : T / T , Paypal , West Union



Features :

  • Clamp opens 55 mm
  • Portable design, easy to operate.
  • Full function protection, anti high voltage circuit design
  • CE standard design,improves the safety of the test.
  • Relative value, data hold.



Specification :

Basic function

Measurement range

Basic accuracy

DC voltage

1000V

±(1.0%+3)

AC voltage

700V

±(1.5%+5)

AC current

20A/200A/1000A

±(2.0%+5)

Resistance

2KΩ/200KΩ/20MΩ

±(1.5%+10)

Frequency

2KHz-20MKHz

±(0.1%+3)

Temperature

0-1000℃ ±(1.0%+3)

Diode test

V

Continuity buzzer

V

Low power display

V

Maximum display

1999

Displayer size

55*35mm

Data Hold

V

Battery

9V




General Characteristic :
Color Black+red
Weight 450g(including batteries)
Dimension 260*90*45mm
Accessories Test lead ,manual ,battery
Standard inner package Color box
Standard package quality 30 sets
Outer packing size 55*32*42cm
Standard packing gross weight 21kg


Application :

Ground fault current measurements
Electrical safety testing
Medical equipment safety testing
Process monitoring
General ac load monitoring
