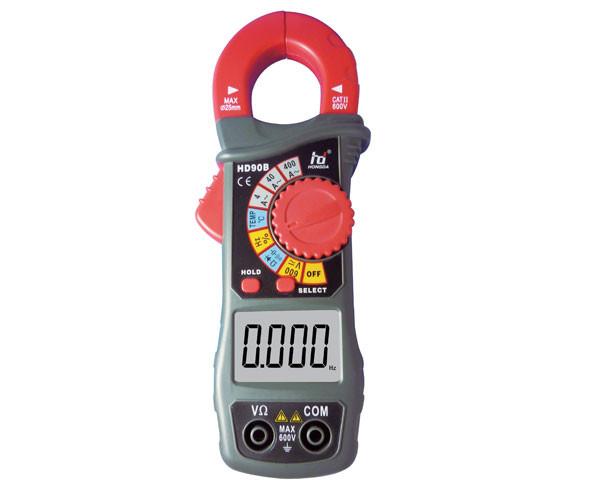

AC Pocket True RMS Digital Clamp on Meter 4000 Countswith Auto Zero

Quik details :

Place of Origin : Shenzhen ,China
Model : HD90B
Mini Clamp On Meter
True RMS
Brand Name : HD , OEM
Measuring Current Range : 4A-400A
Measuring Voltage Range :400mV-600V
Measuring Resistance Range : 40MΩ
MOQ : 300PCS
Jaw Size : 25MM
Payment : T / T , Paypal , West Union

Description

100% Brand New
HD90B, AC digital clamp meter, is designed to the safety standard of electronic measure instrument and hand-held current clamp meter: IEC1010-1 and IEC1010-2-032. Strictly comply to the safety standard of double insulation DC 600V CATII or 300V CAT III and pollution degree 2.

Specification

General Characteristic

Safety

Voltage between voltage input end to earth: CAT II 600V or CAT III 300V

Display

Display mode: LCD, max display 4000.

Low battery display: “ ” on LCD.

Data holds function: “H” on LCD.

Unit display: with function, electric symbols display.

Polarity display: Auto.

Over range display: “OL”.

Measurement

Range selection: Auto range

Conversion speed: 3 times per sec

Function key-press: function selection “SELECT”, data holds “HOLD”

Power supply

Auto power off: the meter will be off automatically in 15 min when there is no operation with the function switch and other key-press. It still cost low battery with it is off, please take off the battery if the meter is available long time.

Trigger power on: under the condition of auto power off, rotate function range switch or press button, the meter will be on itself.

Battery: 7 Battery 1.5V×2.

Dimension

Meter size: 170×65×27 mm

Weight: 140g (without battery)

Max open size of jaw: 25mm

Environment

Operation temperature: 5℃—35℃

Store temperature: -10℃—50℃

Application

Ground fault current measurements
Electrical safety testing
Medical equipment safety testing
Process monitoring
General ac load monitoring
