Mini Duty Cycle 25mm Jaw electrical clamp meter 40MΩ Resistance

Description :

HD90B AC digital clamp meter, is designed to the safety standard of electronic measure instrument and hand-held current clamp meter: IEC1010-1 and IEC1010-2-032. Strictly comply to the safety standard of double insulation DC 600V CATII or 300V CAT III and pollution degree 2. It has Rrue RMS and Temperature .

Quik details :

True RMS
Measuring Current Range : 4A-400A
Measuring Voltage Range :400mV-600V
Measuring Resistance Range : 40MΩ
Jaw Size : 25MM


Application :

Ground fault current measurements
Electrical safety testing
Medical equipment safety testing
Process monitoring
General ac load monitoring
​

• Specification:


  Basic function	Measurement range		Basic accuracy
  DC voltage	400mV/4V/40V/400V/600V		±(1.5%+2)
  AC voltage	4V/40V/400V/600V		±(1.8%+3)
  AC current	4A/40A/400A		±(2.5%+10)
  Resistance	400Ω/4KΩ/400KΩ/40MΩ		±(1.5%+3)
  Capacitance	51.2nF/512nF/5.12uF/51.2uF/100uF		±(3.0%+5)
  Frequency	2KHz-20MKHz		±(0.1%+6)
  Duty cycle	0.1%-99.9%		±(1.0%+3)
  Temperature	0-1000℃		±(3.0%+15)
  Auto power off		V
  Continuity buzzer		V
  Maximum display		4000
  Auto Zero Function		V
  Data Hold		V
  Auto range		V




• General Characteristic :

• Color Black+red
  Weight 283g(including batteries)
  Dimension 170*60*27mm
  Accessories Test lead ,manual ,battery,K-type themocouple
  Standard inner package Color box
  Standard package quality 50 sets
  Outer packing size 41.5*39*36.5cm
  Standard packing gross weight 18.5kg

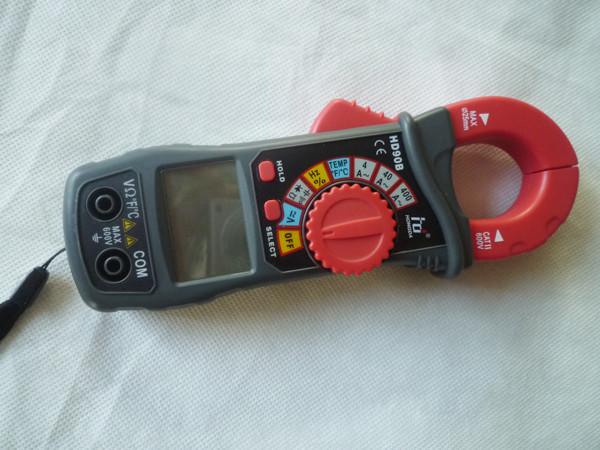

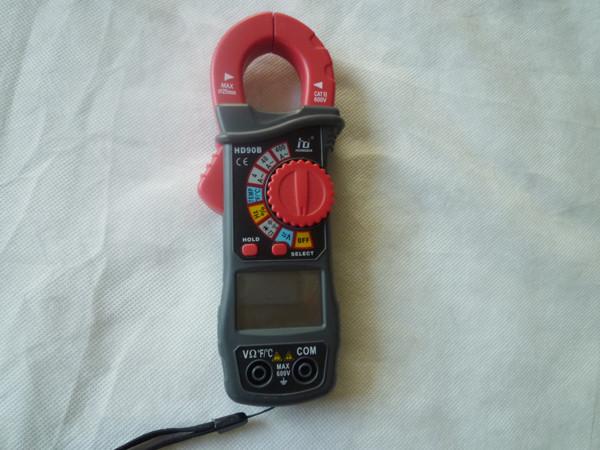

Poduct Pictures :
