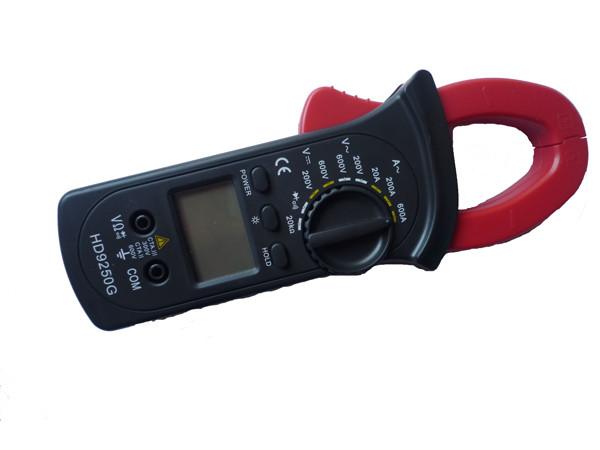

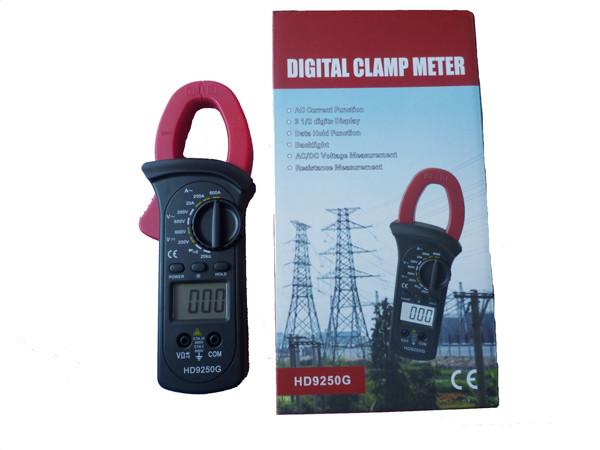

200V / 600V Clamp Meter Backlight Buzzer Data Holds Auto Range
200V / 600V Clamp Meter Backlight Buzzer Data Holds Auto Range
200V / 600V Clamp Meter Backlight Buzzer Data Holds Auto Range
200V / 600V Clamp Meter Backlight Buzzer Data Holds Auto Range
Specifications
Brand Name :
HD , OEM
Model Number :
HD9250G
Certification :
CE
Place of Origin :
Shenzhen ,China
MOQ :
500
Price :
Get the newest price
Payment Terms :
Paypal , T/T, Western Union
Supply Ability :
1500PCS/Per Week
Delivery Time :
20-25days
Packaging Details :
Color Box
Color :
Red + Grey
Clamp size :
25mm
Usage :
Test instruments
Display type :
Digital Only
Power supply :
9V
Dispaly counts :
1999
Description

200V / 600V Clamp Meter Backlight Buzzer Data Holds Auto Range

Quik details

3 1/2 Digital Clamp meter with current Size

Continuty Test / Auto Power off / Auto Zero Function / Data Holds / Backlight

DC Current 200/600v

AC Voltage 200v/600v

Resisitance 20KΩ

LCD size ； 37*23.5MM

Jaw Size : 25MM

Meter Size :213*74*32mm

Description

Accuracy: ±(% reading + digit) one year guarantee.

Environmental temperature: 23℃±5℃

Relative humidity: <75%

Temperature coefficient: 0.1 × accuracy/1℃

Max voltage between the voltage input terminal and earth: CAT II DC 1000V and AC 750V

Display Model: LCD display, Max reading is 1999.

Measurement principle: double integration A/D transform.

Range selection: Manual, Frequency position is auto-ranged.

Measurement speed: 2.5～3 times/sec.

Polarity display: Negative polarity input displays“—” symbol.

Overload display: “OL”.

Data hold function: “H” is shown on the top of LCD.Backlight function: Backlight is on, and it turns off after 3～5 seconds automatically.

Specification

DC Voltage

200/600V

AC Voltage

200V/600V

AC Current

20A/200A/600A

Resistance

20KΩ

Continuity Buzzer

√

Auto Zero funciton

√
Backlight √

Data hold

 √

Auto Power off

 √

General Characteristic

Battery: 1604 6F22 006P 9V.

Dimension: 240 ×86 × 40mm

Weight: Approx 280g

Max Jaw Opening: 38mm

Operation environmental temperature: 5℃～35℃

Storage temperature: -10℃～50℃

Accessories

  • User’s manual x1
  • Warranty Card / Certification Card x1
  • Test Leads x1 pair
  • 9V battery NEDA 1604 6F22 006P x1

Products Pictures
