Backlight Digital Clamp on Meter 1000amp AC Current Resistance
Backlight Digital Clamp on Meter 1000amp AC Current Resistance
Backlight Digital Clamp on Meter 1000amp AC Current Resistance
Backlight Digital Clamp on Meter 1000amp AC Current Resistance
Backlight Digital Clamp on Meter 1000amp AC Current Resistance
Backlight Digital Clamp on Meter 1000amp AC Current Resistance
Specifications
Brand Name :
HD , OEM
Model Number :
HD9591
Certification :
CE
Place of Origin :
Shenzhen ,China
MOQ :
200pcs
Price :
negotiation
Payment Terms :
FOB HK , T / T ,Paypal
Supply Ability :
1 ,000 0PCS/week
Delivery Time :
30-35 days
Packaging Details :
Gift box
Display :
Digital
Color :
Red + Black
Display count :
1999
Over Range Display :
OL
Test Model :
Clamp CT
Weight :
450g
Description

Backlight Digital Clamp on Meter 1000amp AC Current Resistance




Quik details

AC Current : 20A/200A/1000A
DC Voltage Range : 200V /1000V

AC Voltage Range 200v / 700V
Measuring Resistance Range : 20KΩ / 2MΩ
Frequency : 2KHz-20MHz

Diode Test / Continuity test / Low power Display / Data Hold / Backlight




Discription :


HD9591 AC/DC digital clamp meter is designed and produced in accordance with the safety standard of IEC1010-1 and IEC1010-2-032,relating to electronic measuring instruments and hand-held electronic current clamp meter.This meter completely conforms to double insulation DC 1000V,AC700V CAT II and safety standard pollution degree II.



Specification :

Basic function

Measurement range

Basic accuracy

DC voltage

200V / 1000V

±(1.0%+3)

AC voltage

200V / 700V

±(2.0%+5)

DC current

20A/200A/1000A

±(2.0%+5)

Resistance

20k /2MΩ

±(1.5%+10)

Frequency

2KHz/20MHz

±(0.1%+6)

Diode test

V

Continuity buzzer

V

Data holds

V

Measurement

V

Backlight

V

Maximum display

1999

Displayer size

55*35mm

Low battery diesplay

V

Battery

9V




General Characteristic :


Color Black+red
Weight 450g(including batteries)
Dimension 260*90*45mm
Accessories Test lead ,manual ,battery
Standard inner package Color box
Standard package quality 30 sets
Outer packing size 55*32*42cm
Standard packing gross weight 21kg

Physics

dimension: 260×91×44.5 mm

weight:approx 469 g

Max jaw opening: 60 mm

Environment

Operation environmental temperature: 5℃~35℃

Storage temperature: -10℃~50℃

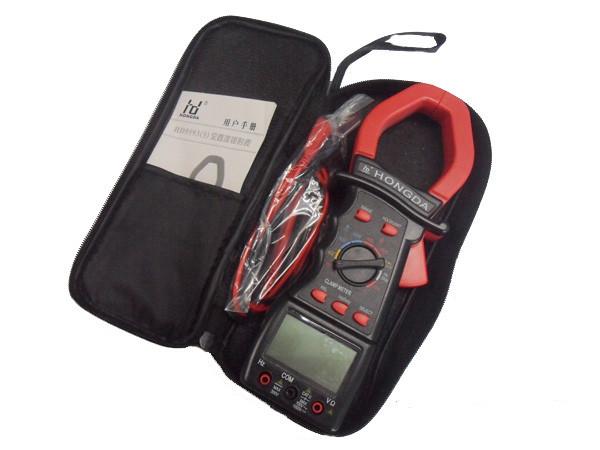

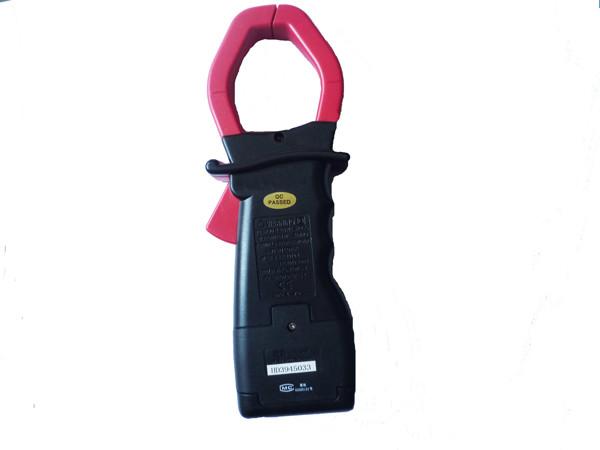

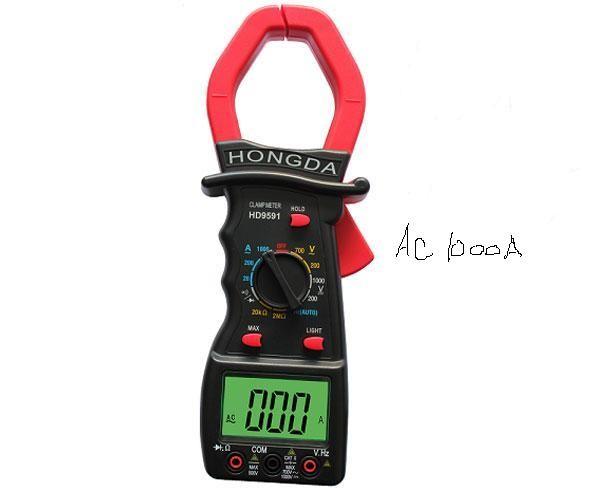

Products Pictures :
