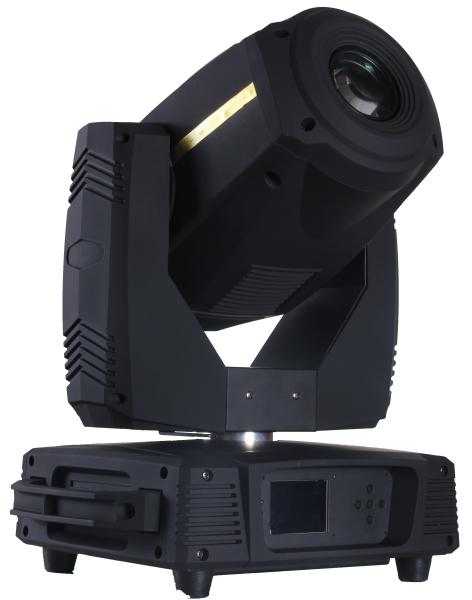

350W IP20 Power Beam Spotlights 16CH / 20CH 17R Yodn Lamp for Disco Club

Quick Detail:

Model Number: Q-2014A

Brand Name: Qshine

Type: Beam light

Lamp Power (W): 350

Input Voltage (V): AC100~250V, 50~60 Hz

Place of Origin: Guangdong China

Lamp: Yodn 17R 350W

DMX Channels: 16CH/20CH

Gross Weight: 20kg

Package Size: 46*37*61 cm

Description:

Control channel: 16/20 DMX 512 channels optional

Voltage: AC100~240V, 50~60 Hz

Ballast: E-ballast

Lamp: 17R Yodn 350W lamp

Life span: 2000 hours

Display software functions:

Clicking directly on the display can control all functions

Can rotate in 180 degrees

Can show lamp life span

Adopting color LCD touch screen (2.8 inches) in display board

Can input customized brand name and item number directly

Random replacement between English and Chinese

Can be directly monitor and set all functions from the display

Gobo wheel:

Gobo wheel 1: rotatable with 9 glass gobo plus white plus auto rotation, changeable gobo

Gobo wheel 2: 17 metal gobo plus white

Color wheel: one color wheel with 14 colors plus white

Prism: 1 Bilateral rotation 3-face prism, beam angle can be free to zoom

Lens: high precision more groups of agglutination optical lens

Wash effect: adjustable wash effect angle

Beam: multi-class beam adjustment

Focus: linear adjustment

Dimmer: 0-100% linear adjustment

Projecting range: Pan 540°, Tilt 239° automatically accurate positioning

Scanning speed: Pan 540°/ 3 sec, Tilt 239° / 2 sec

Beam angle: linear zoom 4-25°

Strobe: double strobe function, 0.5-14 times / sec adjustable)

Motor quantity: 16 units mute sound motors s, containing 2 units three-phase motors, 16bit drive

Control mode: Standard DMX512

Appearance: heat-proof plastic, module pressing alloy materials

IP Rate: IP20

Light size: 43*34*58 cm

Carton case size: 46*37*61 cm

Net weight: 17.2 kg

Gross weight: 20 kg

Applications:

Disco and Club

Live performance

Stage show

Specifications :

Competitive advantages:

good price, reliable quality, guarantee of delivery
