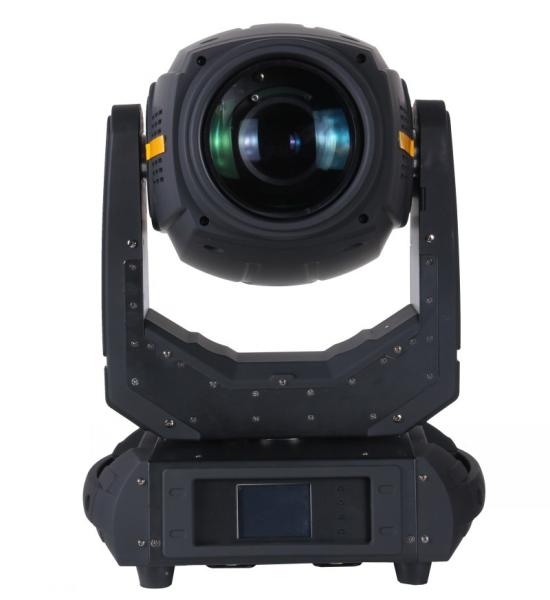

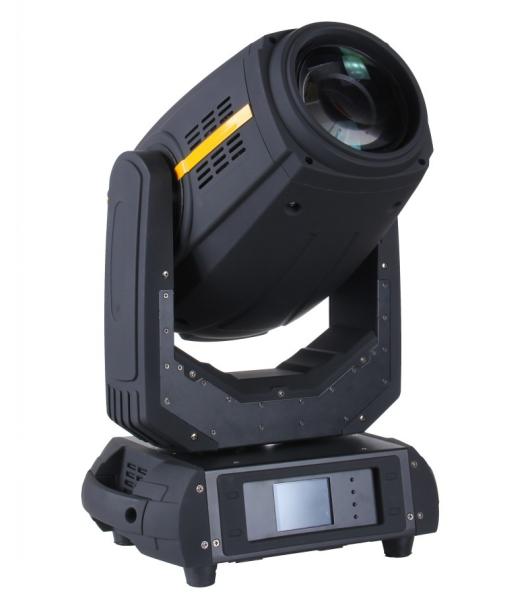

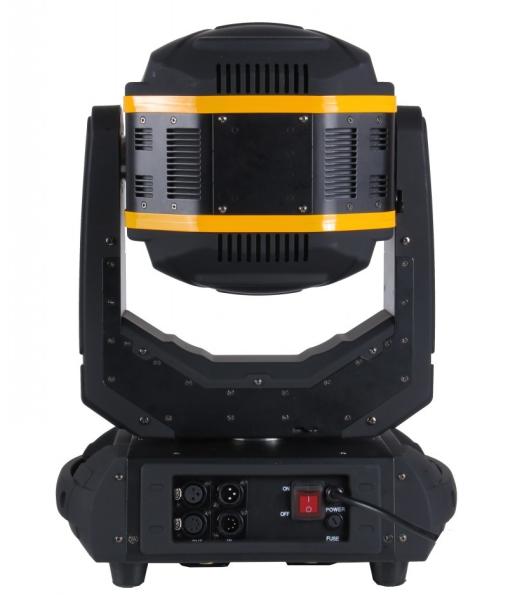

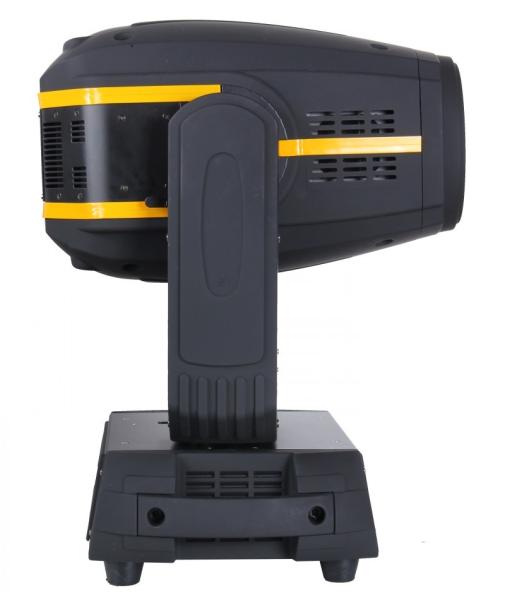

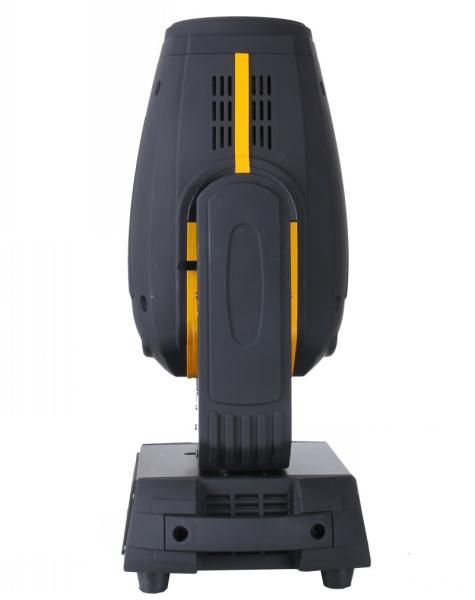

280W DMX 512 Power Beam Spotlights LCD 16 / 24 Channels For Disco / Club

Quick Detail:

Model Number: A2

Brand Name: AOG

Type: Beam light

Lamp Power (W): 280

Input Voltage (V): AC100~240V, 50~60 Hz

Place of Origin: Guangdong China

Lamp: Yodn 10R 280W lamp

DMX Channels: 16/24CH

Gross Weight: 16 kg

Package Size: 40*29*63 cm

Description:

Beam & Spot 280W

A2 (10R)

TECHNICAL PARAMETER

Control channel: 16/24 DMX 512 channels optional

Voltage: AC100~240V, 50~60 Hz

Ballast: E-ballast

Lamp: Yodn 10R 280W lamp

Power: 470W

Life span: 2000 hours

Display software functions:

Clicking directly on the display can control all functions

Can rotate in 180 degrees

Can show lamp life span

Adopting color LCD touch screen (2.8 inches) in display board

Can input customized brand name and item number directly

Random replacement between English and Chinese

Can be directly monitor and set all functions from the display

Gobo wheel:

Gobo wheel 1: rotatable with 9 glass gobos plus white plus auto rotation, changeable gobos (diameter: 15.4 mm, effective inner diameter: 13 mm)

Gobo wheel 2: 13 metal gobos plus white

Color wheel: one color wheel with 13 colors plus white

Effect wheels: two rotating prisms: Bilateral circular 8-face prism and Bilateral straight line 6-face prism, with frost effect

Lens group of optics system: electric focus, with beam angle 0 ~ 20 °; adopting photoelectric reposition system, can automatically retrieve reset if false action happens accidentally

Wash effect: adjustable wash effect angle

Beam: multi-class beam adjustment

Focus: linear adjustment

Dimmer: 0-100% linear adjustment, supporting mechanical strobe, adjustable speed strobe effect and strobe macro functions

Projecting range: Pan 540°, Tilt 239° automatically accurate positioning

Scanning speed: Pan 540°/ 3 sec, Tilt 239° / 2 sec

Beam angle: linear zoom 4-25°

Strobe: double strobe function, 0.5-14 times / sec adjustable)

Motor quantity: 15 units mute sound motors s, containing 2 units three-phase motors, 16bit drive

Control mode: Standard DMX512

Appearance: heat-proof plastic, module pressing alloy materials

IP Rate: IP20

Light size: 37*25.6*60 cm

Carton case size: 40*29*63 cm

Net weight: 16 kg

Gross weight: 20 kg

Applications:

Disco and Club

Live performance

Stage show

Specifications :

Competitive advantages:

good price, reliable quality, guarantee of delivery
