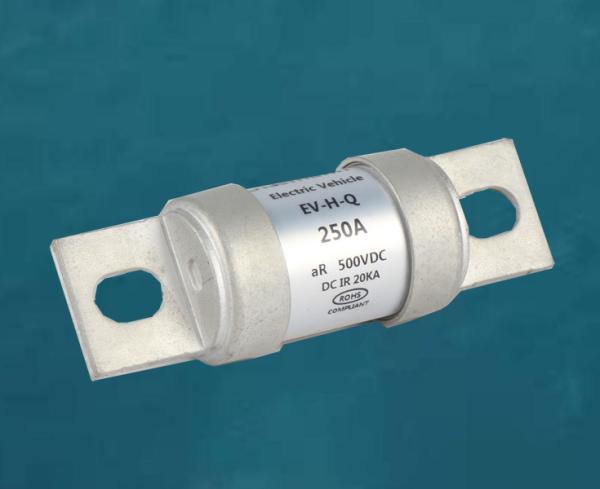

White ceramic EV fuse with bolted connection fuse for car main battery——EV-H-Q Module series

EV Car Battery DC500V Ceramic Automotive Fuses for EV / PHEV / HEV / FCV

Dissmann ceramic EV fuse EV-H-Q Module series compact and high-performance are designed to protect a car battery, high-voltage circuit, on-board charger, and auxiliary equipment.

The EV-H-Q Module series are white ceramic body with metal bolted connection EV fuses, offer rated current 80A - 500A, rated voltage AC / DC500V.

Dissmann ceramic EV fuses differ by fuse speed, voltage and amperage rating and comply with RoHS compliant and halogen free,and certified UL 248-20,ISO 8820,JAS0-D622.

Product introduction

1.Shape and mounting dimensions of the EV fuses:

EV Car Battery DC500V Ceramic Automotive Fuses for EV / PHEV / HEV / FCV

Model Size doce A±2 B±1.5 C±1 D±1.5 F±1 G±0.5 H±0.2 J±1
EV-H-Q VH1 94.5 30.5 52.5 74.5 9 25 4 13
VH2 119.5 37 56.5 88.5 11 25 6 15

2.Model classification according to EV fuses rated current:

Model

Rated current

(A)

 I²t(A²s)

Power consumption

(W)

Size Code

 Install
弧前 熔断
EV-H-Q-80 80 5500 6400 15 VH1

Mounting Bolt M8 recommended torque 11N·m
EV-H-Q-100 100 8700 10000 19
EV-H-Q-125 125 15000 17810 23.5
EV-H-Q-150 150 25000 29000 28
EV-H-Q-175 175 40500 45000 33
EV-H-Q-200 200 60300 68000 37
EV-H-Q-225 225 83100 95000 40
EV-H-Q-250 250 120000 138000 45
EV-H-Q-275 275 173200 189000 48
EV-H-Q-300 300 203000 243000 55.5
EV-H-Q-350 350 252000 355000 62
EV-H-Q-300 300 148500 260000 53.5 VH2

Mounting Bolt M10 recommended torque 20N·m
EV-H-Q-315 315 168000 280000 57
EV-H-Q-350 350 203000 350000 61
EV-H-Q-400 400 312000 496000 68
EV-H-Q-500 500 550000 865000 78

3.Current characteristic curve of the EV fuses :

EV Car Battery DC500V Ceramic Automotive Fuses for EV / PHEV / HEV / FCVEV Car Battery DC500V Ceramic Automotive Fuses for EV / PHEV / HEV / FCV
Warm tips:You can choose the right EV fuse for your project based on the model, so you will get a quote within one business day. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within three working days.
Why you choose us?
1.Focus on the production and development of fuse products for 20 years:
Shenzhen Deer Electronic(Dissmann Fuse) is National High-Tech company was founded in 2000 by Senior Engineers Team. The Engineers were responsible for products’ R&D in famous companies, reorganized and founded Shenzhen Deer in 2005. Focused on R&D and production Current limiting Fuses. Now we’ve got 4 Patents of Invention of China and 12 Patents for Utility Model.
EV Car Battery DC500V Ceramic Automotive Fuses for EV / PHEV / HEV / FCV
2.All fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

EV Car Battery DC500V Ceramic Automotive Fuses for EV / PHEV / HEV / FCV

Welcome you to get more information of the Ceramic Automotive EV fuses,We will provide you with fast and efficient services and high-quality fuse products.
