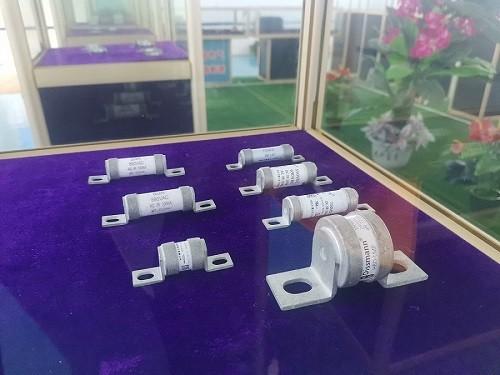

Hybrid EV DC20KA Ceramic Fuses DC750V Replacement UL Certified
Hybrid EV DC20KA Ceramic Fuses DC750V Replacement UL Certified
Hybrid EV DC20KA Ceramic Fuses DC750V Replacement UL Certified
Hybrid EV DC20KA Ceramic Fuses DC750V Replacement UL Certified
Specifications
Brand Name :
Dissmann
Model Number :
HBD-EPL
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C/TT
Supply Ability :
1,000,000pcs
Delivery Time :
5-8days
Packaging Details :
Standard Carton Packing
Material :
Ceramic
Color :
White
Rated Current :
6A-700A
Rated Voltage :
DC750V
Breaking Capacity :
DC20KA
Category :
aR
Executive Standard :
UL248-20、ISO8820、JASO-D622、GB/T13539、RoHS compliant
Appliaction :
electric vehicle drive power system, power conversion system
Description

DC20KA BS88 series ceramic fuses in China

Product description of BS88 series fuse

Rated Voltage

 DC750V or lower

Type Protection

 aR
Rated Current 6A-700A

Breaking Capacity

 DC20KA

Meet the Requirement

UL248-20,ISO8820,JASO-D622,GB/T13539,RoHS compliant

Remarks

 UL,CCC

Application of the BS88 series fuse

This BS88 series fuses for applications in Electric Vehicles (EV) or Hybrid EV are relatively new in the industry and they could be regarded as a crossover product between low voltage fuse and automotive fuse.

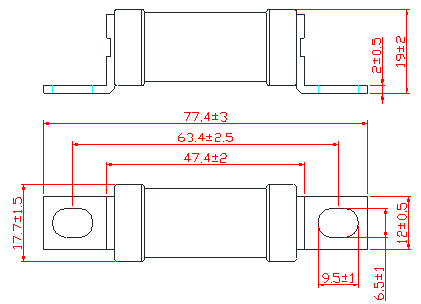

Dimension of the BS88 series fuse

Hybrid EV DC20KA Ceramic Fuses DC750V Replacement UL Certified

Electrical parameters

Model Code

Rated Current

A

100% voltage drop

mV
HBD-EPL HBD-16EPL 16 266.6
HBD-EPL HBD-20EPL 20 317.4
HBD-EPL HBD-32EPL 32 253.5
HBD-EPL HBD-40EPL 40 224.4

FAQ

Question:Is this BS88 series products sufficient inventory?

Answer:Most of our BS88 series products have inventory. Except for individual currents, there is no inventory, but it is generally sufficient material, and the production date is also short.
