No PCB Board HMI Display Module Touch Screen 3.5 Inch Module 480x270 Medical
No PCB Board HMI Display Module Touch Screen 3.5 Inch Module 480x270 Medical
Specifications
Model Number :
TJC4832T135_011N_F
Place of Origin :
China
MOQ :
50PCS
Price :
￥110/PCS
Payment Terms :
L/C, T/T
Supply Ability :
5000PCS/day
Delivery Time :
28day
Size :
3.5inch
Resolution :
480*270
Touch :
Without touch

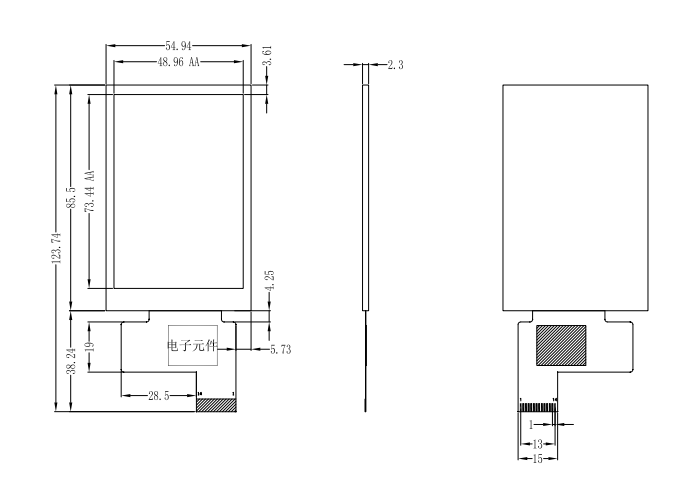

Display area dimensions :
73.44mm（L）×48.96mm（W）
External dimensions :
123.75（L）×54.94（W）×2.3（H）
flash :
8MB
Display color :
65K（65536）
Description
3.5-inch without touch COF HMI 3.5” serial port screen 480*270 code-free font image
3.5-inch COF module, is a new serial port screen, the market general 4:3 screen, Resolution 480 * 272, no PCB board, can be used for medical, automation, testing, instrumentation and equipment, etc. , the product is powered by FPC to light up the use, greatly saving product space and design costs for customers
FPC wiring pin definition
1 GND
2 GND
3 NRST
4 NC
5 NC
6 RXD
7 TXD
8 TF_CS
9 SPI_MOSI
10 SPI_CLK
11 SPI_MISO
12 NC
13 3.3V
14 3.3V
