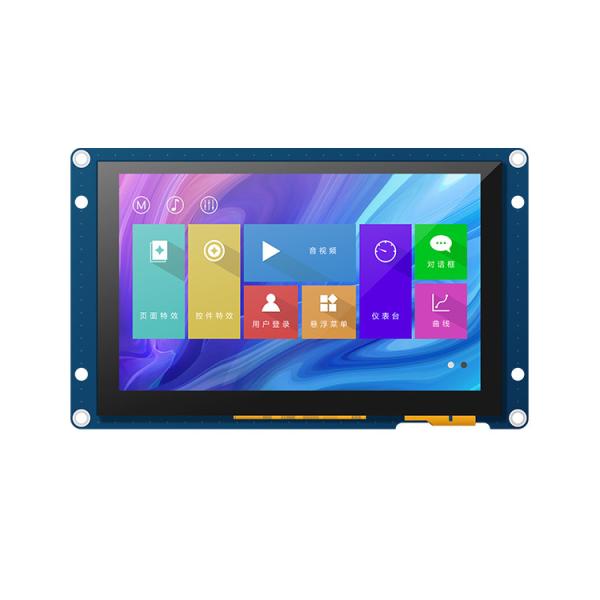

800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
Specifications
Model Number :
TJC8048X550_011CS
Place of Origin :
China
MOQ :
50pcs
Price :
￥159/PCS
Payment Terms :
L/C, T/T
Delivery Time :
28day
Size :
5.0inch
Resolution :
800*480
Touch :
Capacitive touch
Models :
TJC8048X550_011CS
Operating voltage :
5V
Display color :
RGB 65K color
Description

5.0 inch Capacitive touch 5.0”HMI serial port screen 800 * 480 no code font image support video playback.”

The main hardware is: LCD module + Touch Screen + PCB + electronic components
Product features: development simple editing
applicable Industries: New Energy, financial equipment, engineering machinery, medical equipment, industrial equipment and consumer electronics

Hardware Features

5.0” LCD-TFT HMI display module
800 x 480 screen resolution
RGB 65K true-to-life colours
Capacitive touch panel
300 nit Brightness
Onboard 200MHz MCU
512 KB of SRAM
128 MB of Flash memory
1024 Byte EEPROM
XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
1.25T-2-2A Audio port for external speaker connection
8 Digital extended GPIO
(IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)
Built-in RTC support
