MachineU > China Products
5.64 Inch FHD TFT Display 2160*3840 60pins MIPI Interface Driving Ic R63455
5.64 Inch FHD TFT Display 2160*3840 60pins MIPI Interface Driving Ic R63455
5.64 Inch FHD TFT Display 2160*3840 60pins MIPI Interface Driving Ic R63455
5.64 Inch FHD TFT Display 2160*3840 60pins MIPI Interface Driving Ic R63455
5.64 Inch FHD TFT Display 2160*3840 60pins MIPI Interface Driving Ic R63455
5.64 Inch FHD TFT Display 2160*3840 60pins MIPI Interface Driving Ic R63455
Specifications
Brand Name :
HuaXin
Model Number :
HX055QUB-NH1
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$76~$75
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
tft panel display
Name :
lcd module tft
Display size :
5.46 inch TFT display
Resolution :
2160*3840
interface :
60pins MIPI
view angle :
all
Driving IC :
R63455
Description
5.64 inch High Resolution TFT Display Module
Product Specifications
Display Technology TFT Panel Display
Name LCD Module TFT
Display Size 5.46 inch TFT Display
Resolution 2160×3840
Interface 60pins MIPI
View Angle All
Driving IC R63455
Technical Parameters
Part No. HX055QUB-NH1
Display Mode 5.64 inch High Resolution TFT Display
Outline Size (mm) 120.96×68.04
VA Size (mm) 68.04×120.96
Display Dots 2160×3840
Working Temperature 0~60°C
Storage Temperature -10~70°C

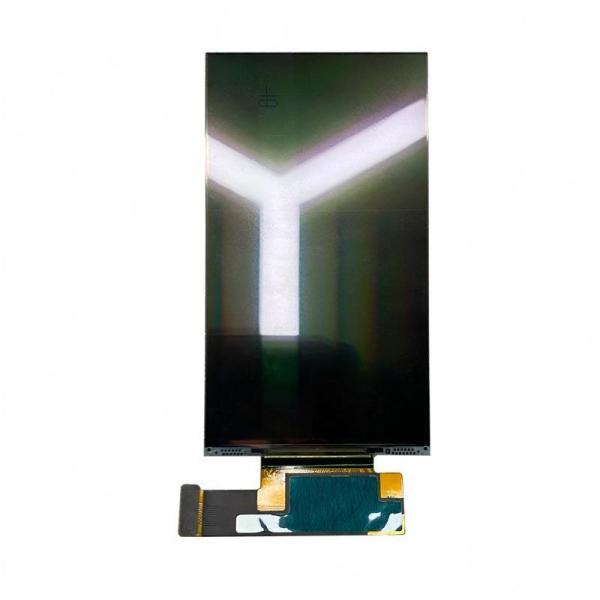

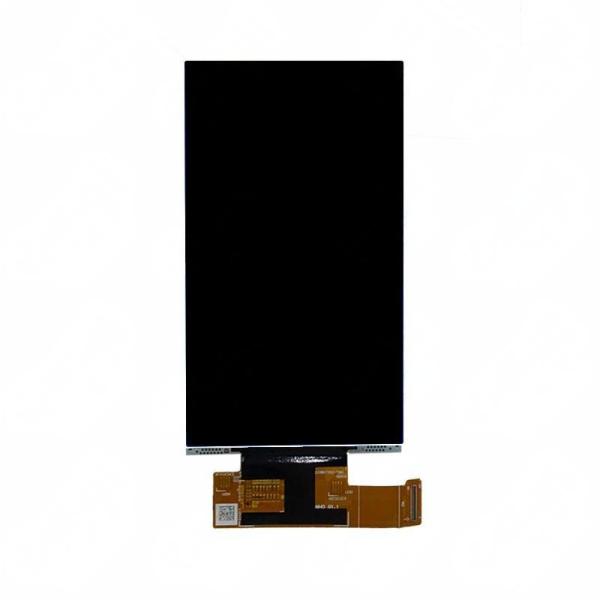

Product Images
5.64 Inch FHD TFT Display 2160*3840 60pins MIPI Interface Driving Ic R63455 5.64 Inch FHD TFT Display 2160*3840 60pins MIPI Interface Driving Ic R63455 5.64 Inch FHD TFT Display 2160*3840 60pins MIPI Interface Driving Ic R63455
TFT Product Knowledge

TFT substrate input and CF substrate input flow chart:

TFT structure diagram:

Huaxin Advantages
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders with over 20 years experience in LCD field
  • Self design capability for customized products
Company Information
  • Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
  • LCD product range: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM product range: COB, TBA, COG, TP, LED backlight and other series
  • Registered capital: Twenty million
  • Current staff: 500+
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
  • Image Quality: Excellent with high resolution, sharpness, and color accuracy
  • Response Time: Fast switching of pixels
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: More efficient than other display technologies
  • Size and Flexibility: Available in various sizes from small handheld to large panels
  • Backlighting: Typically uses LED backlighting
  • Wide Applications: Versatile usage across multiple industries
TFT Display Limitations
  • Limited Viewing Angles: Compared to some newer technologies
  • Limited Contrast Ratio: May not achieve deep blacks
  • Backlighting and Power Consumption: Requires constant backlight
  • Response Time and Motion Blur: Can show motion artifacts
  • Limited Flexibility: Rigid structure compared to flexible displays
  • Limited Color Gamut: May not cover full color spectrum
