3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
Specifications
Brand Name :
HuaXin
Model Number :
ESHX035FHD05
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$10.8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
TFT lcd
Name :
high resolution tft
Display size :
3.5 inch TFT display
Resolution :
1920x1080
interface :
LVDS 50PIN
Brightness :
900cd/m2
Driving IC :
/
Description
3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
Technical Parameters
part No: ESHX035FHD05
Size 尺寸 3.5 inches
Resolution 分辨率 1920*1080 pixels
Active Area 显示区域 77.76*43.74 mm
Outline dimension 外观尺寸 87.1*56.8*2.7 mm
Pixel pitch 点距 TBD mm
Color Depth 颜色 16.7 M colors
Display Mode 显示模式 Normally black Transmissive
Surface treatment 表面处理 TBD
Interface 接口 LVDS 50PIN
View Angle 可视角度 80/80/80/80
Brightness 亮度 900 Nits
Contrast ratio 对比度 1000
Response time 响应时间 40 ms
Operating temperature 工作温度 -20 ... +70 °C
Storage temperature 储存温度 -30 ... +80 °C

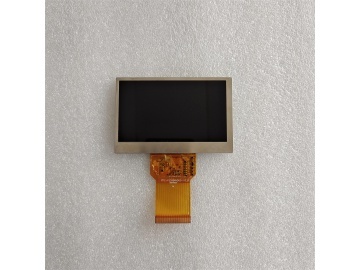

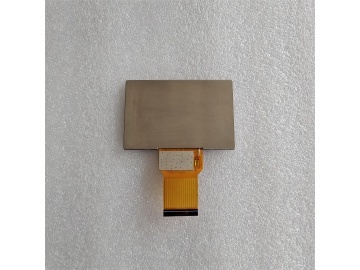

Product Images

3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d

3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d




Technical Drawing

3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d


TFT Technology Overview
3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
3.5 Inch FHD TFT Display High resolution Tft Display1920*1080 Dots 50 pins LVDS interface 900c/d
Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment ensuring stable quality
  • Automated processes for maximum efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities available
Certifications
  • ISO14001 Environmental Management
  • ISO9001/IATF16949 Quality Management
  • SGS certified LCD modules
TFT Display Characteristics
  • High resolution with excellent color accuracy
  • Fast response times for smooth visuals
  • Wide viewing angles for flexible positioning
  • Energy efficient LED backlight system
  • Available in versatile size options
Common Applications
  • Automotive: navigation systems, dash displays
  • Medical devices and diagnostic equipment
  • Industrial control systems and HMI
  • Consumer electronics and home appliances
  • Digital signage and information displays
Technical Considerations
  • Viewing angle limitations in some models
  • Contrast ratio constraints compared to newer technologies
  • Backlight power requirements
  • Potential motion blur in fast-moving content
  • Fixed panel structure with limited customization
Company Profile
Huaxin Technology (Enshi) Co., LTD

Founded 2009 in Hubei, China

  • Specializes in LCD, LCM, TFT, backlight, and OLED technologies
  • 500+ employees with dedicated R&D and QC teams
  • Registered capital: 20 million RMB
