5 Inch Full Hd Tft Display 3840*2160 EDP Interface 500c/D Brightness
5 Inch Full Hd Tft Display 3840*2160 EDP Interface 500c/D Brightness
5 Inch Full Hd Tft Display 3840*2160 EDP Interface 500c/D Brightness
5 Inch Full Hd Tft Display 3840*2160 EDP Interface 500c/D Brightness
5 Inch Full Hd Tft Display 3840*2160 EDP Interface 500c/D Brightness
5 Inch Full Hd Tft Display 3840*2160 EDP Interface 500c/D Brightness
Specifications
Brand Name :
HuaXin
Model Number :
HX0504K
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$88~$86.5
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
tft display panel
Name :
lcd panel tft
Display size :
5 inch TFT display
Resolution :
3840*2160
interface :
EDP
view angle :
all
Brightness :
500c/d
Description
5 Inch High Resolution TFT Display Module 3840×2160 Dots EDP Interface 500c/d
Product Specifications
Attribute Value
Display Technology TFT Display Panel
Name LCD Panel TFT
Display Size 5 inch TFT Display
Resolution 3840×2160
Interface EDP
View Angle All
Brightness 500c/d

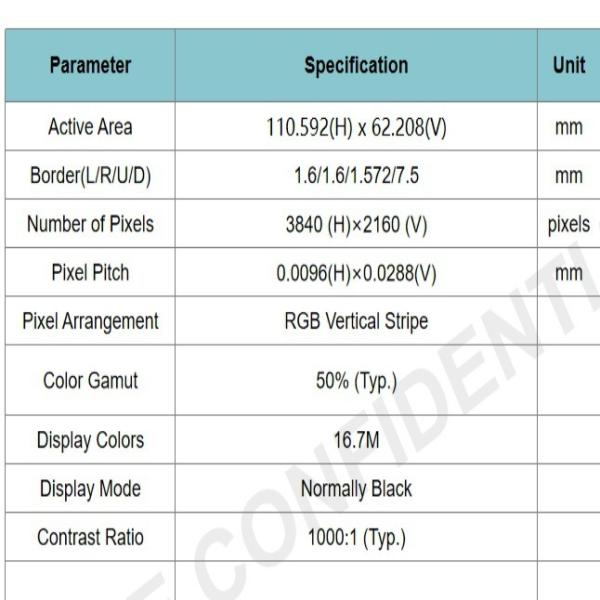

Technical Parameters
Part No. HX0504K
Display Mode 5 inch high resolution TFT display
Outline Size (mm) 116×65×4.0
AA Size (mm) 110.59×62.2
Display Dots 3840×2160
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Brightness 500 nits

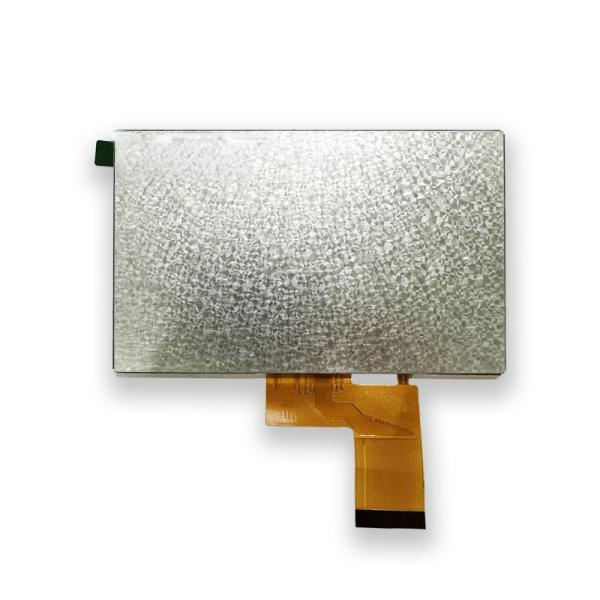

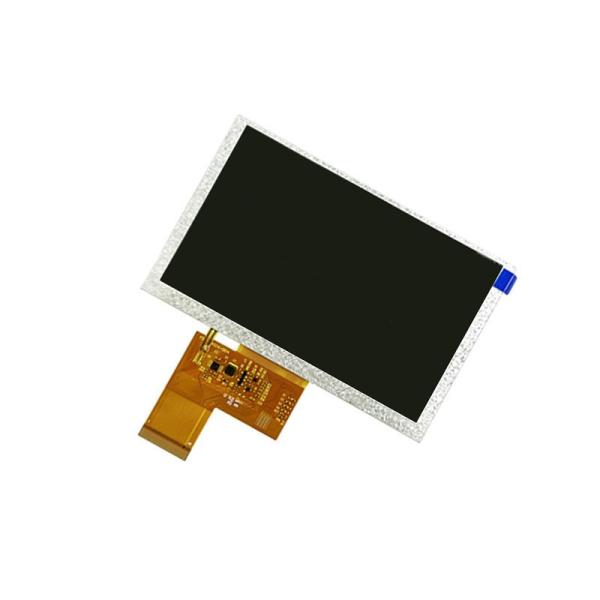

Product Images
5 Inch Full Hd Tft Display 3840*2160 EDP Interface 500c/D Brightness 5 Inch Full Hd Tft Display 3840*2160 EDP Interface 500c/D Brightness
Drawing & Pin Definition
5 Inch Full Hd Tft Display 3840*2160 EDP Interface 500c/D Brightness
TFT Product Knowledge

TFT substrate input and CF substrate input flow chart:

TFT structure diagram:

Manufacturer Advantages
  • Cost-effective factory base located in inland city
  • Most advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and consistency
  • Professional engineering team with 20+ years experience in LCD field
  • Custom product design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Information

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009
High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, and OLED products.

Product Range:
LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
LCM: COB, TBA, COG, TP, LED backlight and other series

Company Statistics:
Registered capital: 20 million
Current staff: 500+
R&D accounts for 10%
QC accounts for 15%

Production Capacity
Annual Production Capacity 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Size Flexibility: Available in various sizes for different applications
  • Backlighting: Typically uses LED backlight systems
  • Applications: Versatile use across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some alternatives
  • Moderate contrast ratio
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving images
  • Limited flexibility in physical form
  • Restricted color gamut range
