Specifications
Brand Name :
HuaXin
Model Number :
HX020092
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$5.8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
e paper e ink display
name :
e ink digital paper
Resolution :
128X296
size :
2.9 inch
Color :
black/white/red
Interface :
SPI
View angle :
Free
Description
2.9 inch Black/White/Red E-Paper Display
Product Overview

2.9 inch black/white/red E-paper display with 128×296 resolution, SPI interface, and free viewing angle.

Technical Specifications
Attribute Value
Display Technology E Paper E Ink Display
Name E Ink Digital Paper
Resolution 128×296
Size 2.9 inch
Color Black/White/Red
Interface SPI
View Angle Free
Detailed Technical Parameters
Part No. HX020092
Type E-Paper
Display Color Black/White/Red
Display Size 2.9 inch E-Paper
Active Area 29.06×66.9mm
Outline Size 36.7×79mm
Storage Temperature -10°C to 40°C
Working Temperature -25°C to 40°C
Product Images
2.9 Inch E Paper Display 128X296 SPI Interface ISO9001 Certified 2.9 Inch E Paper Display 128X296 SPI Interface ISO9001 Certified 2.9 Inch E Paper Display 128X296 SPI Interface ISO9001 Certified 2.9 Inch E Paper Display 128X296 SPI Interface ISO9001 Certified

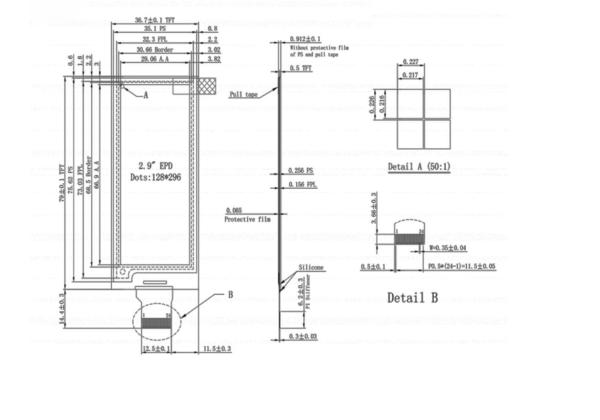

Technical Drawing
2.9 Inch E Paper Display 128X296 SPI Interface ISO9001 Certified
E-Paper Technology
Advantages
  • Paper-like reading experience
  • Ultra wide view angle
  • Ultra low power consumption
  • Ultra thin design
  • Eye protection
  • Environmental protection
  • No backlight required
Disadvantages
  • Best performance in lower temperatures
  • Limited size availability in market
  • Limited color options (no full color capability)
Key Characteristics
  • Reflective Display
  • Bi-stable
  • Low Power Consumption
  • High Contrast and Readability
  • Flexible and Lightweight
  • Limited Color Capabilities
  • Slow Refresh Rate
Potential Drawbacks
  • Limited Color Capabilities
  • Slow Refresh Rate
  • Limited Viewing Angles
  • Limited Brightness and Contrast
  • Slower Image Updates
  • Limited Availability of Larger Sizes
  • Susceptibility to Environmental Factors
Applications
  • Supermarket retail labels
  • E-book readers
  • Financial field applications
  • Smart healthcare devices
  • Smart transportation and smart home systems
Manufacturer Information

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009

High technology enterprise specializing in research, development, production and sales of:

  • LCD, LCM, TFT, backlight, OLED
  • LCD series: VA, TN, HTN, STN, FSTN, CSTN
  • LCM series: COB, TBA, COG, TP, LED backlight

Company Statistics:

  • Registered capital: 20 million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Company Advantages
  • Factory located in cost-effective inland city
  • Most advanced equipment for stable quality
  • Fully automated processes for efficiency and quality
  • Professional engineers with 20+ years experience in LCD field
  • Self-design capability for customized products
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production 10 20 30 40 50 Unit: Thousand piece/Day
