Specifications
Brand Name :
HuaXin
Model Number :
HX0400NW43-MNG
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$9.8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
colour epaper
name :
color epaper display
Resolution :
480*800
size :
4 inch
Color :
white/black
Interface :
SPI
Description
4 Inch White/Black E-paper Display with 480×800 Resolution and SPI Interface
Attribute Value
Display Technology Color E-paper
Resolution 480×800
Size 4 inch
Color White/Black
Interface SPI
Product Overview

The HX0400NW43-MNG-A0 is an Active Matrix Electrophoretic Display (AM EPD) with SPI interface and reference system design. The 3.97" active area contains 480×800 pixels. This TFT-array driven electrophoretic display module features integrated circuits including gate buffer, source buffer, MCU interface, timing control logic, oscillator, DC-DC, SRAM, LUT, and VCOM. Ideal for portable electronic devices such as Electronic Shelf Label (ESL) systems.

Technical Specifications
Part No. HX0400NW43-MNG
Type E-paper display
Display Color White/Black
Display Size 4 inch E-paper
Resolution 480×800
Outline Size 56.24(H)×96.62(V)×0.92(D)
Active Area 51.84(H)×86.4(V)
Interface SPI

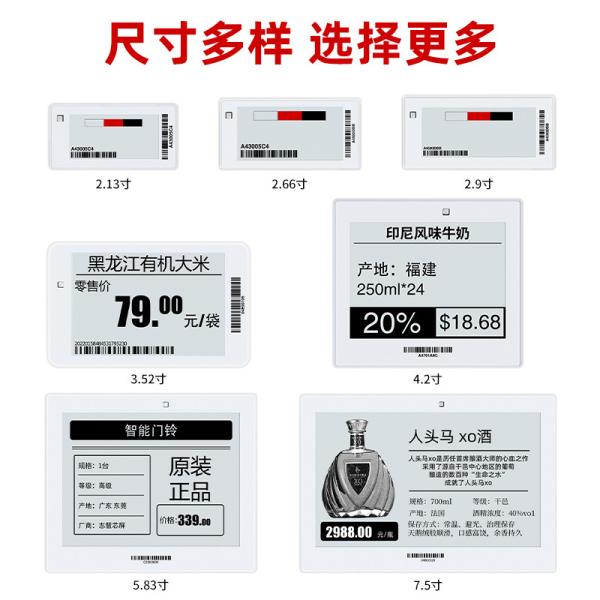

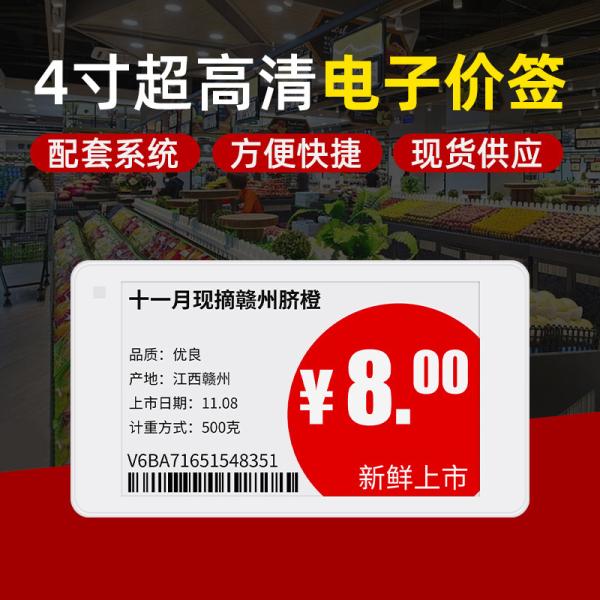

Product Images
4 inch white/black E-paper display 480*800 resolution SPI interface 4 inch white/black E-paper display 480*800 resolution SPI interface 4 inch white/black E-paper display 480*800 resolution SPI interface

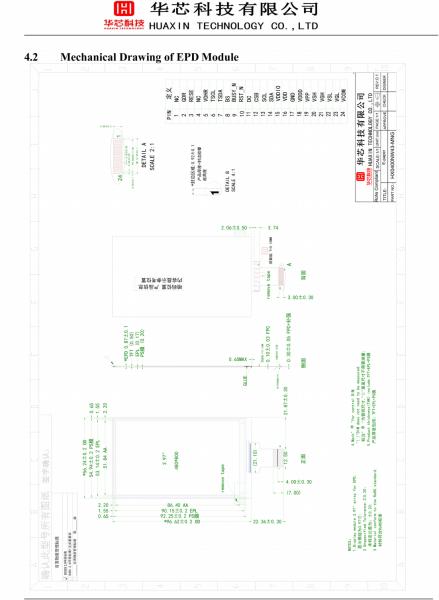

Drawing & Pin Definition
4 inch white/black E-paper display 480*800 resolution SPI interface
E-paper Technology Overview
Advantages
  • Paper-like reading experience
  • Ultra wide viewing angle
  • Ultra low power consumption
  • Ultra thin design
  • Eye protection
  • Environmentally friendly
  • No backlight required
Limitations
  • Best performance in lower temperatures
  • Market size limitations
  • Limited color options (no full color capability)
Key Characteristics
  • Reflective Display Technology
  • Bi-stable operation
  • Low Power Consumption
  • High Contrast and Readability
  • Flexible and Lightweight Design
  • Slow Refresh Rate
Manufacturer Information

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009
Registered Capital: 20 Million
Employees: 500+ (10% R&D, 15% QC)

Company Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years experience in LCD field
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD 4.5 9 9 9 9 Thousands/Day
LCM 70 150 300 450 450 Thousands/Day
Backlight 100 200 300 500 500 Thousands/Day
OLED 10 20 30 40 50 Thousands/Day
Applications
  • Supermarket retail labels
  • E-book readers
  • Financial displays
  • Smart healthcare devices
  • Smart transportation and home systems
