6 Inch Color Epaper Display With PCB 1024x758 TYPE-C Interface ANDROID 8.1
6 Inch Color Epaper Display With PCB 1024x758 TYPE-C Interface ANDROID 8.1
6 Inch Color Epaper Display With PCB 1024x758 TYPE-C Interface ANDROID 8.1
6 Inch Color Epaper Display With PCB 1024x758 TYPE-C Interface ANDROID 8.1
6 Inch Color Epaper Display With PCB 1024x758 TYPE-C Interface ANDROID 8.1
6 Inch Color Epaper Display With PCB 1024x758 TYPE-C Interface ANDROID 8.1
6 Inch Color Epaper Display With PCB 1024x758 TYPE-C Interface ANDROID 8.1
6 Inch Color Epaper Display With PCB 1024x758 TYPE-C Interface ANDROID 8.1
Specifications
Brand Name :
HuaXin
Model Number :
HX0600NX24
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$54.2
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
epaper display module
name :
digital paper screen
Resolution :
1024x758
size :
6 inch
Color :
black/white/red
Interface :
TYPE-C
operating system :
ANDROID 8.1
Description

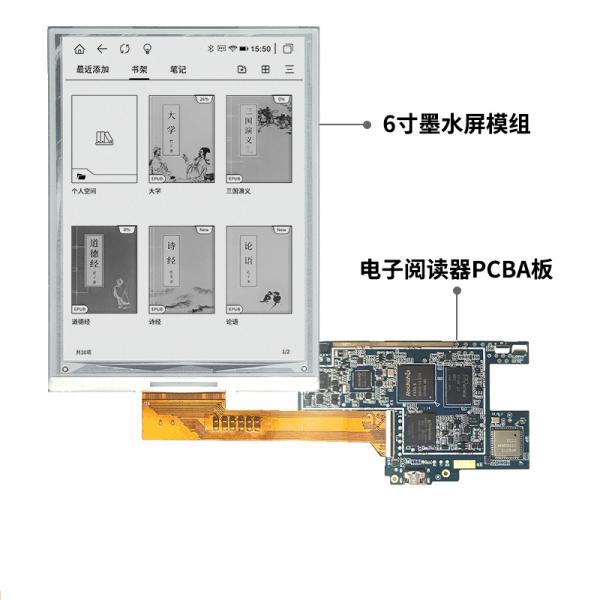

6 Inch Black/White/Red E-Paper Display with PCB
Product Specifications
Attribute Value
Display Technology Epaper display module
Name Digital paper screen
Resolution 1024×758
Size 6 inch
Color Black/White/Red
Interface TYPE-C
Operating System ANDROID 8.1
Technical Parameters
Part No. HX0600NX24
Type E-paper with touch panel + PCB
Display Color Black/White/Red
Display Size 6 inch E-paper
Outline Size 153.3×108.8×7.9 mm
Resolution 1024×758
Connecting Type TYPE-C
Storage Volume 1G+32GB
Battery Volume 3.8V/1800mAH
Processor 4-core 64bit Cortex-A35
Operating System ANDROID 8.1
Product Images
6 Inch Color Epaper Display With PCB 1024x758 TYPE-C Interface ANDROID 8.1 6 Inch Color Epaper Display With PCB 1024x758 TYPE-C Interface ANDROID 8.1 6 Inch Color Epaper Display With PCB 1024x758 TYPE-C Interface ANDROID 8.1 6 Inch Color Epaper Display With PCB 1024x758 TYPE-C Interface ANDROID 8.1
E-Paper Product Knowledge

Advantages:

  • Paper-like reading experience
  • Ultra wide view angle
  • Ultra low power consumption
  • Ultra thin
  • Eye protection
  • Environmental protection
  • Without backlight

Disadvantages:

  • Suitable to lower temperature
  • Size is limited in the market
  • Color is limited and can't make full color
Company Information

HuaXin Advantages:

  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who works in LCD field for more than 20 years
  • Self design for customized product

Our Certificates:

  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Date of foundation: 2009
High technology enterprise mainly work on research and development, producing and sells LCD, LCM, TFT, backlight, OLED

Product Range:

  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, LED backlight and other series

Register capital: twenty million
Current staff: 500+
R&D accounts for 10%
QC accounts for 15%

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Supermarket retail label
  • E-book reading
  • Financial field
  • Smart healthcare
  • Smart transportation and smart home
E-Paper Display Characteristics
  • Reflective Display
  • Bi-stable
  • Low Power Consumption
  • High Contrast and Readability
  • Flexible and Lightweight
  • Limited Color Capabilities
  • Slow Refresh Rate
Potential Drawbacks of E-Paper Displays
  • Limited Color Capabilities
  • Slow Refresh Rate
  • Limited Viewing Angles
  • Limited Brightness and Contrast
  • Slower Image Updates
  • Limited Availability of Larger Sizes
  • Susceptibility to Environmental Factors
