3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
Specifications
Brand Name :
HuaXin
Model Number :
HX034-30MB-A1
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$15.2
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
lcd tft display panel
Name :
custom tft display
Display size :
3.4 inch tft
Resolution :
800*800
interface :
30PINS MIPI
Driving IC :
D9365DA
Brightness :
300c/d
View angle :
all
Description

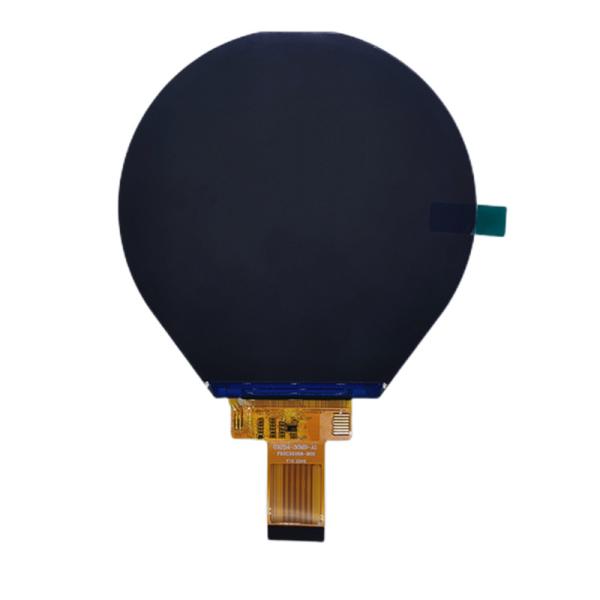

3.4 Inch Round TFT Display with MIPI Interface
Key Specifications
Attribute Value
Display Technology LCD TFT Display Panel
Display Size 3.4 inch TFT
Resolution 800×800 dots
Interface 30PINS MIPI
Driving IC D9365DA
Brightness 300cd/m²
View Angle All directions
Technical Parameters
Part No. HX034-30MB-A1
Panel Size 3.4 inch TFT
LCD Type IPS
Module Size 94.9×96.95×2.22mm
Display Area 87.6×87.6mm
Operating Temperature -20°C to 70°C
Storage Temperature -25°C to 75°C
Product Images
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2

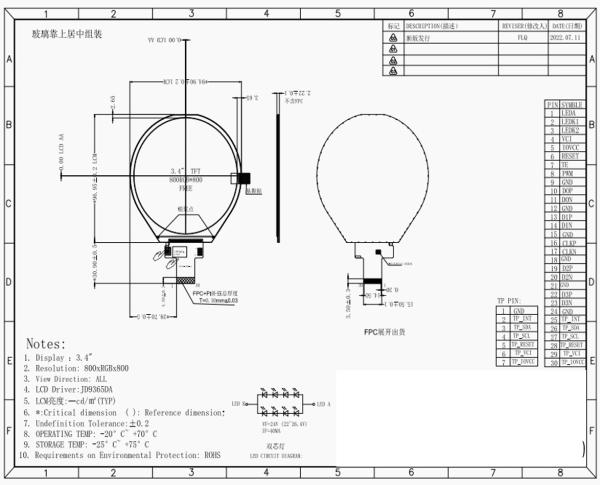

Pin Definition Diagram
3.4 Inch Circular Lcd Display 800*800 Dots 30PINS MIPI Interface Driving IC D9365DA 300CD/M2
TFT Technology Overview
Manufacturer Advantages
  • Cost-effective production facility located in inland China
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency and consistency
  • Expert engineering team with 20+ years LCD experience
  • In-house design capability for customized products
About Huaxin Technology

Founded in 2009 and headquartered in Hubei Enshi, Huaxin Technology is a high-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Product Range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs

Certifications: ISO14001, ISO9001, IATF16949, SGS

Company Scale: 500+ employees, 10% R&D staff, 15% QC staff

Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD 4.5 9 9 9 9 Thousands/Day
LCM 70 150 300 450 450 Thousand/Day
Backlight 100 200 300 500 500 Thousand/Day
OLED 10 20 30 40 50 Thousand/Day
Typical Applications
  • Car navigation systems and printers
  • Video communication and advertising displays
  • Automotive and medical equipment
  • Fitness equipment and handheld devices
  • Industrial control systems and home appliances
TFT Display Advantages
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Versatility: Available in sizes from small handheld to large panel formats
TFT Display Considerations
  • Viewing angles may be limited compared to some alternatives
  • Contrast ratio may be lower than other display types
  • Requires backlighting which affects power consumption
  • Potential for motion blur in fast-moving content
  • Color gamut may be narrower than some competing technologies
