5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2
5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2
5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2
5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2
5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2
5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2
5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2
5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2
5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2
5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2
Specifications
Brand Name :
HuaXin
Model Number :
ESHX050YMM-J40
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$35
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
round Display
Name :
round display module
Display size :
5 inch tft
Resolution :
1080*1080
interface :
50 PINS mipi
Driving IC :
HX8399C
Brightness :
350c/d
View angle :
all
Description
5 inch Round TFT Display - 1080×1080 Resolution - 50PINS MIPI Interface
Product Specifications
Attribute Value
Display Technology Round Display
Name Round Display Module
Display Size 5 inch TFT
Resolution 1080×1080
Interface 50 PINS MIPI
Driving IC HX8399C
Brightness 350cd/m²
View Angle All
Technical Parameters
Part No. ESHX050YMM-J40
Panel Size 5 inch round TFT display
LCD Type IPS
Module Size 129.808 × 133.258 mm
Display Area 127.008 × 127.008 mm
Number of Dots 1080×1080
View Angle Free view angle
Module Driver IC HX8399C
Interface Pins 50 PINS MIPI
LED Numbers 6 LEDs
Luminance 350cd/m²
Operating Temperature -20°C to 60°C
Storage Temperature -30°C to 70°C

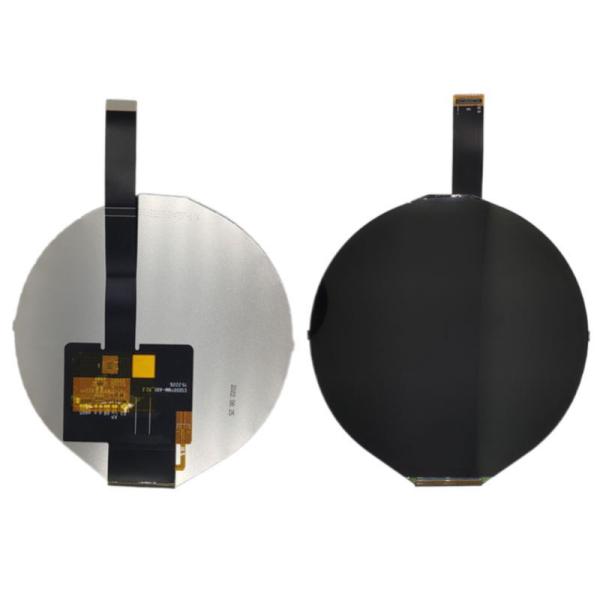

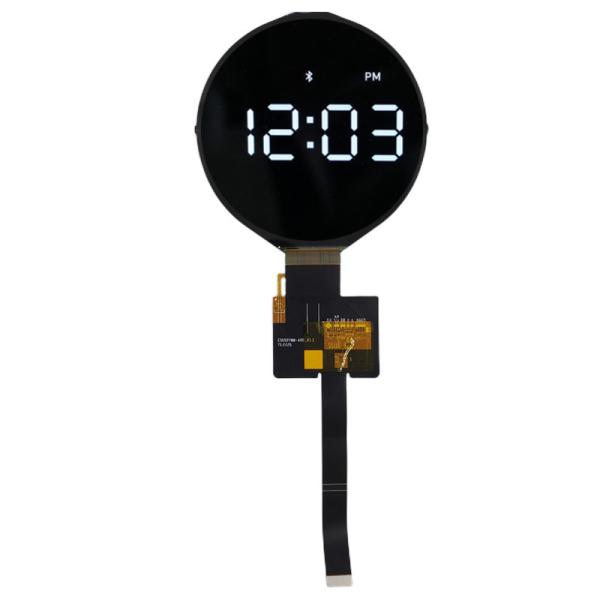

Product Images
5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2 5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2 5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2
Technical Drawings
5 Inch Round TFT Display 1080*1080 Resolution 50PINS MIPI Interface Driving IC HX8399C 350cd/M2
TFT Product Knowledge
TFT substrate input and CF substrate input flow chart:
TFT structure diagram:
Company Advantages
  • Factory base located in inland city with cost-effective operations
  • Most advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and quality consistency
  • Professional engineers with over 20 years experience in LCD field
  • In-house design capability for customized products
Certifications:
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Company Profile:
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, OLED
Product Range:
- LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM: COB, TBA, COG, TP, LED backlight and other series
Registered Capital: 20 million
Employees: 500+
R&D: 10% of workforce
Quality Control: 15% of workforce
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
Image Quality: Excellent with high resolution, sharpness, and color accuracy.
Response Time: Fast switching of pixels for smooth motion.
Viewing Angles: Wide angles with minimal color shift.
Energy Efficiency: Lower power consumption compared to alternatives.
Size and Flexibility: Available in various sizes from small to large panels.
Backlighting: Typically uses LED backlighting for illumination.
Applications: Versatile usage across multiple industries.
TFT Display Limitations
  • Limited viewing angles compared to some newer technologies
  • Limited contrast ratio
  • Backlighting requirements increase power consumption
  • Potential for motion blur in fast-moving images
  • Limited flexibility in physical form
  • Limited color gamut compared to some alternatives
