1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
Specifications
Brand Name :
HuaXin
Model Number :
ESHX108102
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$5
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
round lcd
Name :
round lcd panel
Display size :
1.08 inch
Resolution :
240x210
interface :
SPI4 Lane
Driving IC :
ST7789V2
Brightness :
400C/D
View angle :
all
Description
1.08 Inch Round TFT Display

240×210 dots resolution with SPI4 Lane interface and ST7789V2 driving IC, 400c/d brightness

Product Specifications
Attribute Value
Display Technology Round LCD
Name Round LCD Panel
Display Size 1.08 inch
Resolution 240×210
Interface SPI4 Lane
Driving IC ST7789V2
Brightness 400C/D
View Angle All
Technical Parameters
Part No. ESHX108102
Display Mode 1.08 inch round TFT display
Outline Size (mm) 31.28(H) × 30.3(V) × 1.45(T)
AA Size (mm) 27.58 (H) × 24.13(V)
Display Dots 240×210
Working Temperature -20°C ~ 70°C
Storage Temperature -30°C ~ 80°C

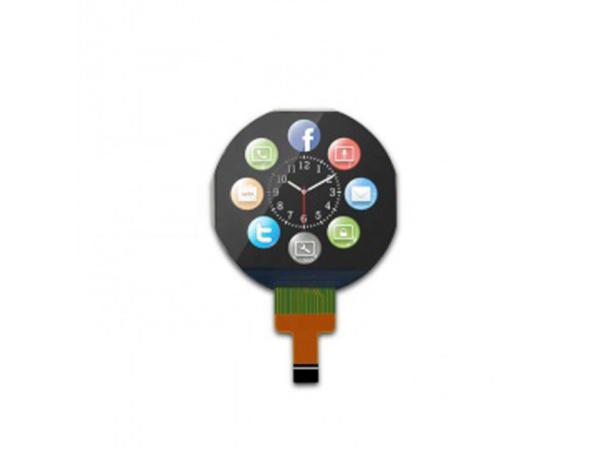

Product Images
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
Drawing & Pin Definition
1.08 Inch Round Display Tft Lcd 240x210 Dots SPI4 Lane Interface Driving IC ST7789V2 400c/D
TFT Product Knowledge

TFT substrate input and CF substrate input flow chart:

TFT structure diagram:

Huaxin Technology Advantages
  • Factory base located at inland city with cost-effective operations
  • Most advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and quality consistency
  • Professional engineering team with 20+ years LCD experience
  • Custom product design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Information
  • Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • High-tech enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
  • LCD product lines: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM product lines: COB, TBA, COG, TP, LED backlight and other series
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D team: 10% of workforce
  • QC team: 15% of workforce
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Car navigation & printers
  • Video call & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliances
TFT Display Characteristics
  • Image Quality: Excellent with high resolution, sharpness, and color accuracy
  • Response Time: Fast switching of pixels
  • Viewing Angles: Wide angles with minimal color shift
  • Energy Efficiency: Lower power consumption than other technologies
  • Size and Flexibility: Available in various sizes from small to large panels
  • Backlighting: Typically uses LED backlighting
  • Wide Applications: Suitable for diverse industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving images
  • Limited flexibility in physical form
  • Limited color gamut in some models
