High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
Specifications
Brand Name :
HuaXin
Model Number :
ESHX0095Y009
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$3.9
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
tft panel
name :
round TFT display
size :
0.95 inch
resolution :
128*128
Brightness :
1000c/d
Interface :
SPI
Driving IC :
GC9D01
view angle :
6 O'CLOCK
Description
High Brightness 0.95 Inch Round TFT Display 128×128 Dots 4SPI Interface Driving IC GC9D01
Product Specifications
Display Technology TFT Panel
Name Round TFT Display
Size 0.95 inch
Resolution 128×128
Brightness 1000c/d
Interface SPI
Driving IC GC9D01
View Angle 6 O'CLOCK
Technical Parameters
Part No. ESHX0095Y009
Display Mode 0.95 inch round TFT display
Outline Size (mm) 25.24×27.14×1.9
AA Size (mm) 23.04×23.04
Display Dots 128×128
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

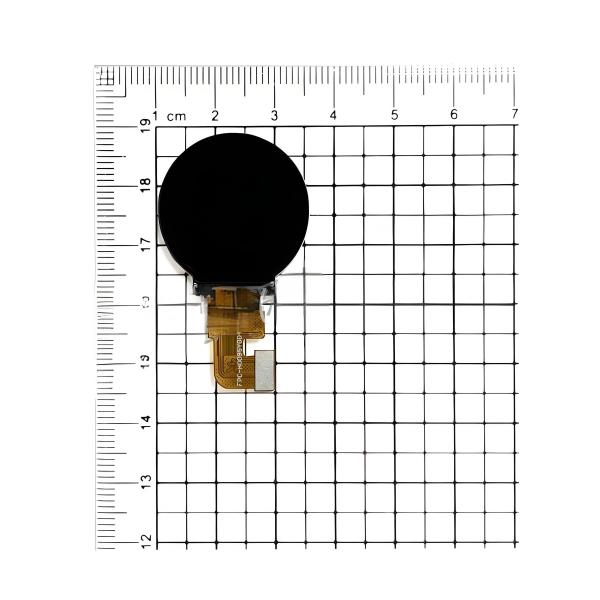

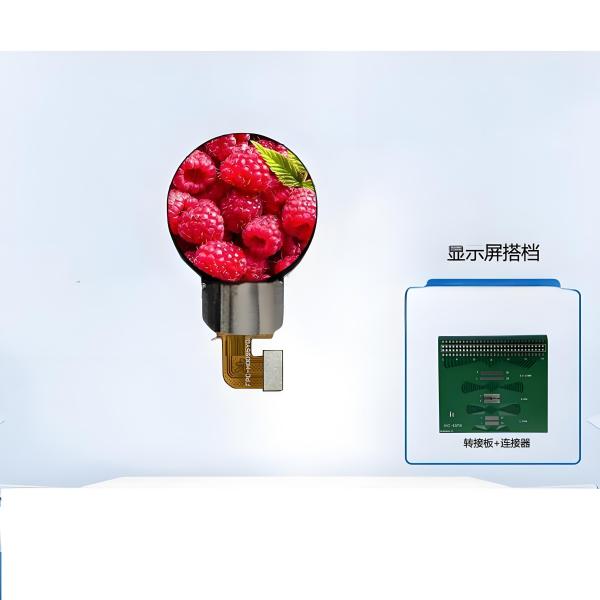

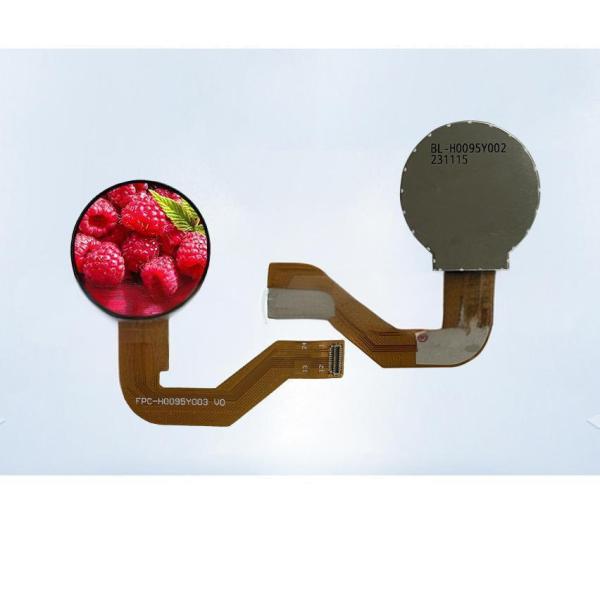

Product Images
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01
High Brightness 0.95 Inch Round Tft Screen Circular Tft Lcd Display 128*128 Dots IC GC9D01

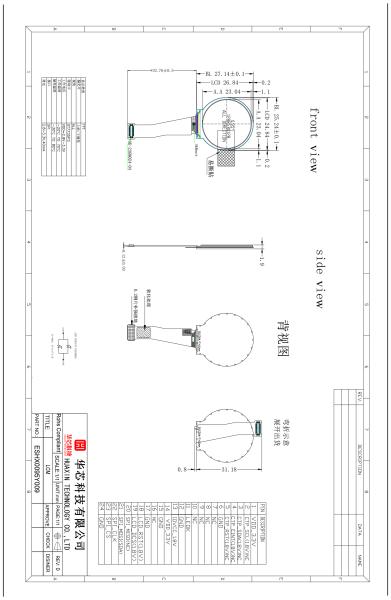

Drawing & Pin Definition
TFT Product Knowledge
Huaxin Advantages
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who work in LCD field for more than 20 years
  • Self design for customized product
Our Certifications:
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Company Information:
  • Huaxin Technology (Enshi) Co., LTD
  • Hubei, Enshi
  • Date of foundation: 2009
  • High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, LED backlight and other series
  • Register capital: twenty million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
  • Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.
  • Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.
  • Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions.
  • Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.
  • Size and Flexibility: TFT displays can be manufactured in various sizes, from small screens to large panels.
  • Backlighting: Most TFT displays require a backlighting system, such as LED backlighting.
  • Wide Applications: Suitable for numerous industrial and commercial uses.
TFT Display Limitations
  • Limited Viewing Angles: Some models may have restricted optimal viewing angles.
  • Limited Contrast Ratio: May not achieve the deepest blacks compared to other technologies.
  • Backlighting and Power Consumption: Requires backlighting which affects power usage.
  • Response Time and Motion Blur: Some models may exhibit motion blur in fast-moving images.
  • Limited Flexibility: Typically rigid compared to newer flexible display technologies.
  • Limited Color Gamut: May not reproduce the full range of colors as some other display types.
