Specifications
Brand Name :
HuaXin
Model Number :
HX0349S001T001
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$8.9
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
bar tft
name :
bar type lcd
size :
3.49 inch
resolution :
172x640
Brightness :
350c/d
Interface :
8bit/mipi/spi
Driving IC :
AXS15231B
Description
3.49 inch Bar Type TFT Display
Product Attributes
Attribute Value
Display Technology Bar TFT
Name Bar Type LCD
Size 3.49 inch
Resolution 172x640
Brightness 350c/d
Interface 8bit/MIPI/SPI
Driving IC AXS15231B
Technical Parameters
Part No. HX0349S001T001
Display Mode 3.49 inch bar type TFT display
Outline Size (mm) 24.989×88.692×2.16
AA Size (mm) 22.575×84
Display Dots 172x640
View Angle All
Interface 8bit/MIPI/SPI
Working Temperature -20~70°C
Storage Temperature -30~80°C
Driving IC AXS15231B
Brightness 350c/d

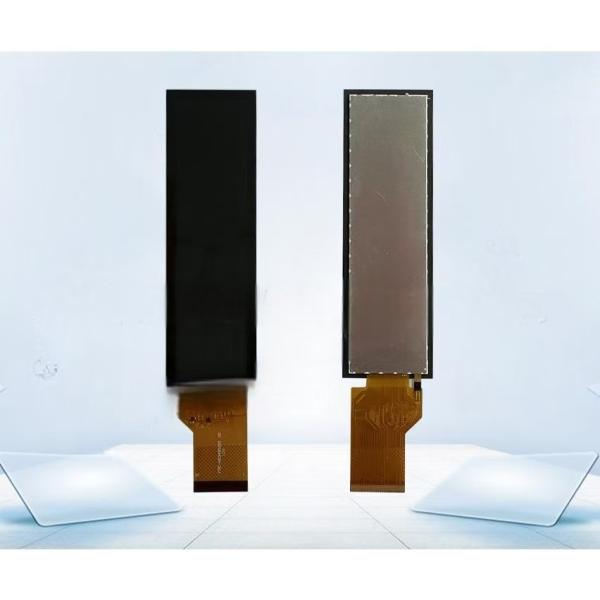

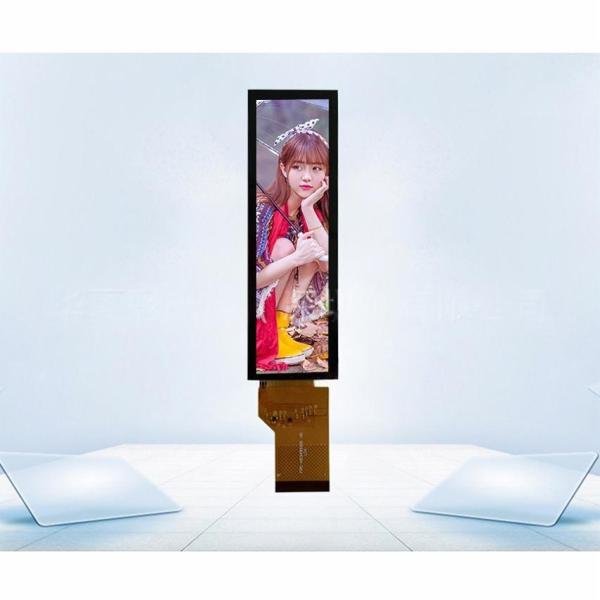

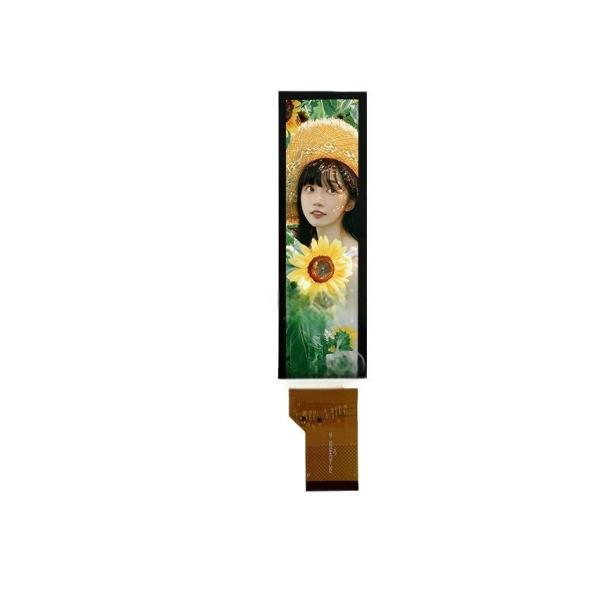

Product Images
3.49 Inch Bar Type TFT 172x640 MIPI/SPI Interface Driving IC AXS15231B 350c/D 3.49 Inch Bar Type TFT 172x640 MIPI/SPI Interface Driving IC AXS15231B 350c/D 3.49 Inch Bar Type TFT 172x640 MIPI/SPI Interface Driving IC AXS15231B 350c/D
TFT Product Knowledge

TFT substrate input and CF substrate input flow chart:

TFT structure:

Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who works in LCD field for more than 20 years
  • Self design for customized product
Our Certificates
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Huaxin Technology (Enshi) Co., LTD

Hubei.Enshi

Date of foundation: 2009

High technology enterprise mainly work on research and development, producing and sells LCD, LCM, TFT, backlight, OLED

LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series

LCM includes: COB, TBA, COG, TP, LED backlight and other series

Register capital: twenty million

Current staff: 500+

RD accounts for 10%

QC accounts for 15%

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
  • Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.
  • Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.
  • Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions.
  • Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.
  • Size and Flexibility: TFT displays can be manufactured in various sizes, from small screens to large panels.
  • Backlighting: Most TFT displays require a backlighting system, such as LED backlighting.
  • Wide Applications: Suitable for numerous industrial and commercial uses.
Limitations of TFT Displays
  • Limited Viewing Angles: Color and contrast may degrade at extreme angles.
  • Limited Contrast Ratio: May not achieve the deep blacks of other technologies.
  • Backlighting and Power Consumption: Requires constant backlight power.
  • Response Time and Motion Blur: May exhibit motion blur in fast-moving content.
  • Limited Flexibility: Rigid structure compared to newer flexible displays.
  • Limited Color Gamut: May not cover the full color spectrum of premium displays.
