8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D
8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D
8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D
8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D
8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D
8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D
8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D
8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D
Specifications
Brand Name :
HuaXin
Model Number :
HX0801920
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000pcs
Price :
$67.8~$66.8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
display type tft
Name :
tft display lcd
Display size :
8 inch TFT display
Resolution :
1920x1200
interface :
LVDS
view angle :
all
Brightness :
1000c/d
Description
8 Inch High Resolution High Brightness TFT Display Module

1920×1200 resolution LVDS interface with 1000cd/m² brightness and wide viewing angle

Product Specifications
Display Technology TFT LCD
Display Size 8 inch
Resolution 1920×1200 dots
Interface LVDS
Viewing Angle All directions
Brightness 1000cd/m²
Technical Parameters
Parameter Value
Part No. HX0801920
Outline Size (mm) 176.22×117.14
Active Area Size (mm) 172.22×107.64
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

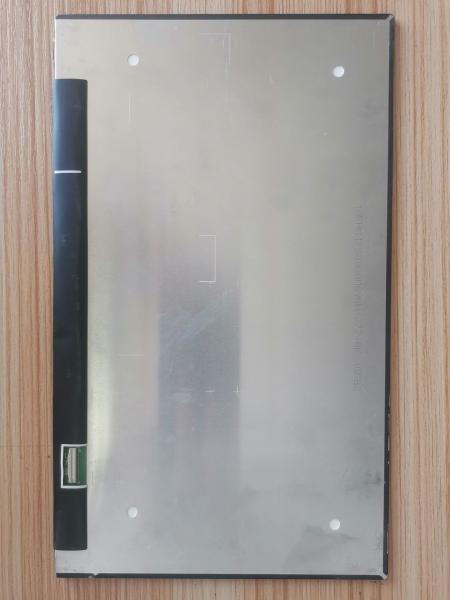

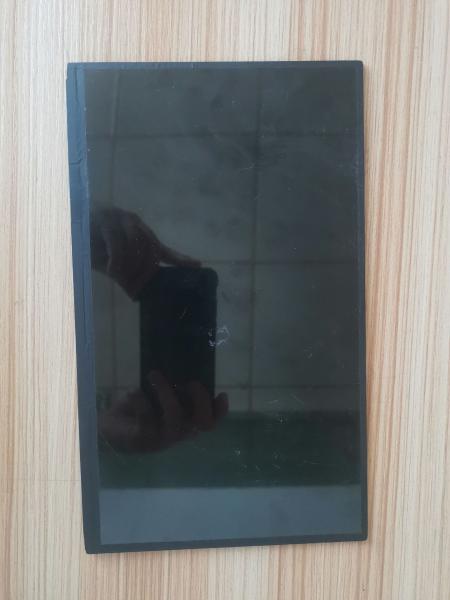

Product Images
8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D 8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D 8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D
Technical Diagrams
8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D
TFT Manufacturing Process
8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D 8 Inch Lcd Tft Display High Resolution 1920x1200 LVDS Interface 1000c/D
Manufacturer Advantages
  • Cost-effective inland manufacturing base
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency
  • 20+ years of LCD industry expertise
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD
Established: 2009
Location: Hubei, Enshi
Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, and OLED displays
Registered capital: 20 million
Employees: 500+ (10% R&D, 15% QC)

Production Capacity
Product 2021 2022 Goal 2023 Goal 2024 Goal 2025 Goal
LCD (k logs/day) 4.5 9 9 9 9
LCM (k pieces/day) 70 150 300 450 450
Backlight (k pieces/day) 100 200 300 500 500
OLED (k pieces/day) 10 20 30 40 50
Applications
  • Car navigation systems & printers
  • Video communication & digital signage
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial controls & home appliances
TFT Display Advantages
  • High resolution with excellent image quality and color accuracy
  • Fast response times for smooth motion display
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for diverse applications
  • LED backlighting for uniform illumination
TFT Display Considerations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio may be lower than alternative displays
  • Backlighting increases power consumption
  • Potential for motion blur in fast-moving content
  • Limited flexibility in screen shapes
  • Color gamut may be narrower than some alternatives
