Specifications
Brand Name :
HuaXin
Model Number :
HX35HD010A
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
TFT module
Name :
tft panel
Display size :
3.5 inch
Resolution :
720*1280
interface :
MIPI
Driving IC :
ST7703
Brightness :
380C/D
view angle :
all
Description
3.5 Inch High Resolution TFT Display - 720×1280 Dots with MIPI Interface (ST7703 Driving IC)
Product Specifications
Attribute Value
Display Technology TFT module
Display Size 3.5 inch
Resolution 720×1280
Interface MIPI
Driving IC ST7703
Brightness 380C/D
View Angle All
Product Overview

The HX35HD010A is a 3.5-inch high-resolution TFT display featuring 720×1280 dots resolution, all-view angle capability, MIPI interface, 380nits brightness, and ST7703 driving IC.

Technical Parameters
Part No. ESHX35HD010A
Display Mode 3.5 inch TFT display
Outline Size (mm) 51.32×87.01
AA Size (mm) 43.2×78.72
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

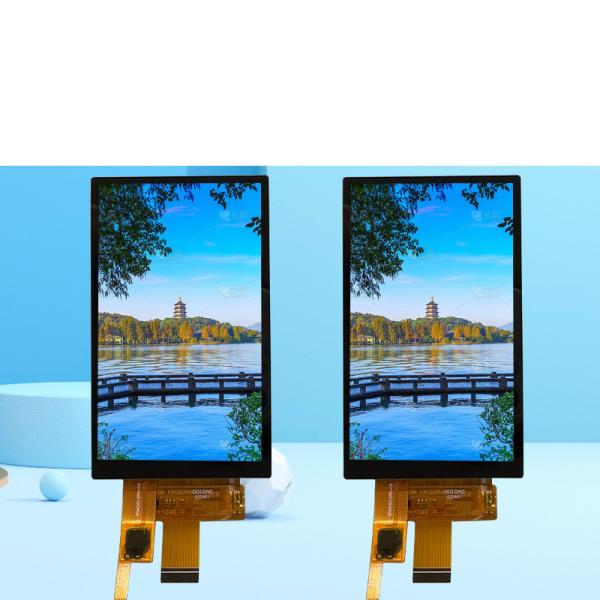

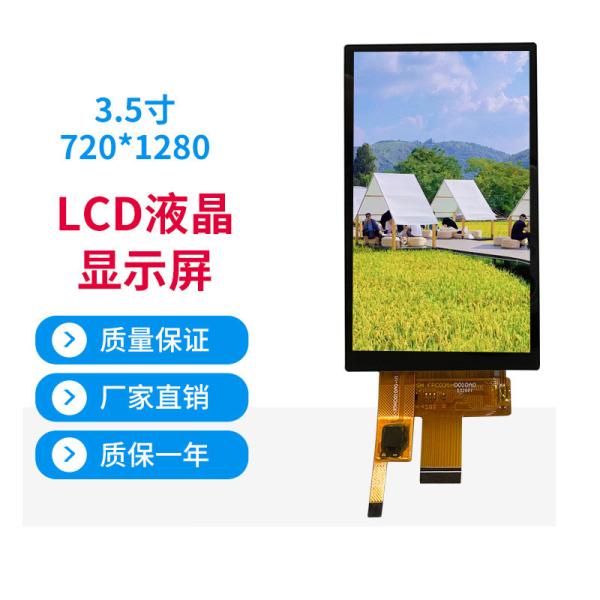

Product Images
3.5 inch high resolution tft display 720*1280 dots MIPI interface driving IC ST7703 3.5 inch high resolution tft display 720*1280 dots MIPI interface driving IC ST7703 3.5 inch high resolution tft display 720*1280 dots MIPI interface driving IC ST7703
TFT Product Knowledge

TFT substrate input and CF substrate input flow chart:

3.5 inch high resolution tft display 720*1280 dots MIPI interface driving IC ST7703

TFT structure diagram:

3.5 inch high resolution tft display 720*1280 dots MIPI interface driving IC ST7703
Manufacturer Advantages
  • Cost-effective factory location in inland city
  • Advanced equipment ensuring stable quality
  • Automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom design capabilities
Huaxin Technology (Enshi) Co., LTD

Located in Hubei Enshi, founded in 2009

High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production

Product range includes VA, TN, HTN, STN, FSTN, CSTN LCD series and COB, TBA, COG, TP, LED backlight LCM series

Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)

Certifications: ISO14001, ISO9001/IATF16949, SGS

Production Capacity
Product 2021 2022 2023 2024 2025
LCD (k/Day) 4.5 9 9 9 9
LCM (k/Day) 70 150 300 450 450
Backlight (k/Day) 100 200 300 500 500
OLED (k/Day) 10 20 30 40 50
Applications
  • Car navigation & printers
  • Video calls & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control & home appliances
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for different applications
  • LED backlighting for consistent illumination
TFT Display Limitations
  • Viewing angles may be limited compared to other technologies
  • Moderate contrast ratios
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
