6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
Specifications
Brand Name :
HuaXin
Model Number :
HX060R1SX01-1
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$16.6
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
TFT screen
Name :
high resolution lcd
Display size :
6 inch TFT display
Resolution :
1440*2560
interface :
50PINS MIPI
Brightness :
420c/d
Driving IC :
R63419
Description
6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
Technical Parameters
Part NO. HX060R1SX01-1
Panel size 6 inch TFT display
Resolution
1440*2560
Viewing Angle ALL
Operation Temperature -20~60
storage temperature -30~70
Panel Size(mm) 76.92(W)×140.20(H)×1.39 (D)
Active Area (mm) 74.52(W)×132.48(H)
Brightness(cd/m2) 420c/d
Interface 50PINS MIPI
driving IC R63419
Touch panel /

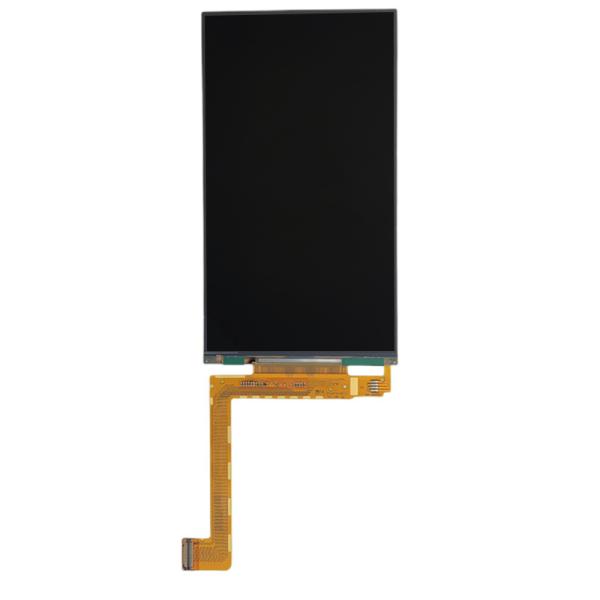

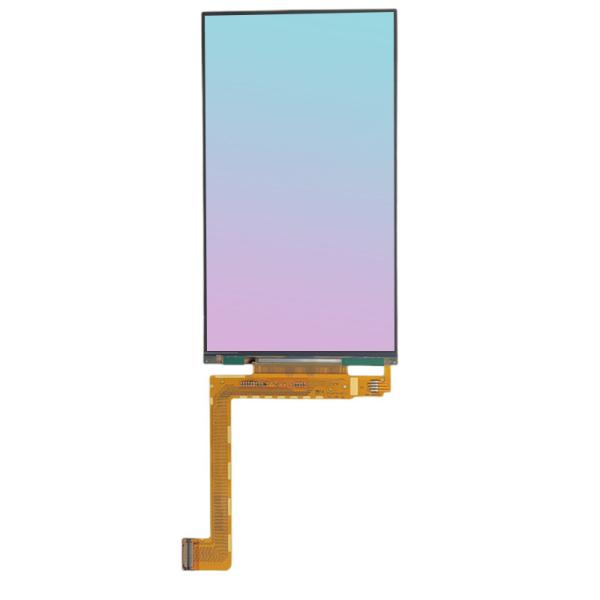

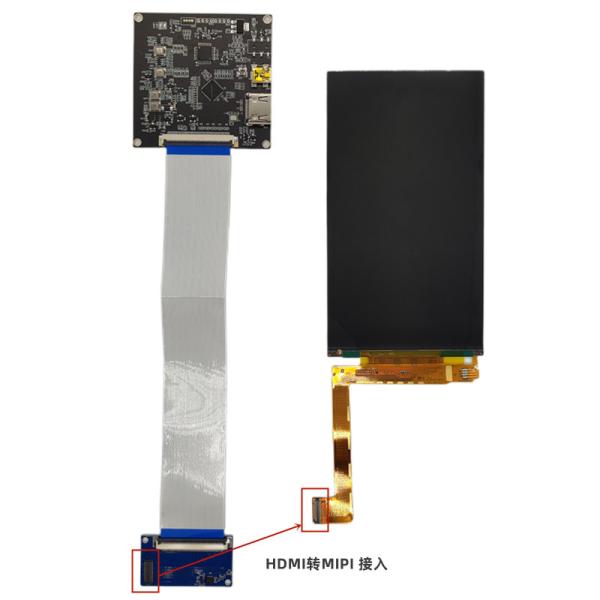

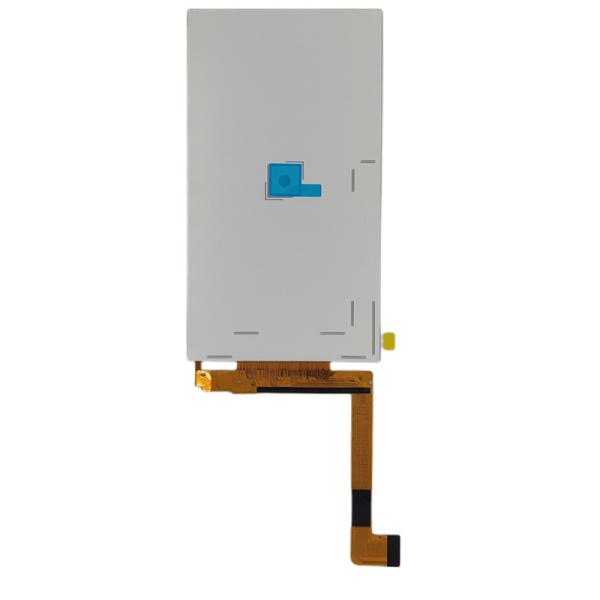

Product Images

6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d

6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d

6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d

6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d

6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d

Technical Drawing



TFT Technology Overview
6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
6 Inch FHD TFT Display High resolution Tft Display 1440*2560 Dots 50 pins MIPI Interface 420c/d
Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment ensuring stable quality
  • Automated processes for maximum efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities available
Certifications
  • ISO14001 Environmental Management
  • ISO9001/IATF16949 Quality Management
  • SGS certified LCD modules
TFT Display Characteristics
  • High resolution with excellent color accuracy
  • Fast response times for smooth visuals
  • Wide viewing angles for flexible positioning
  • Energy efficient LED backlight system
  • Available in versatile size options
Common Applications
  • Automotive: navigation systems, dash displays
  • Medical devices and diagnostic equipment
  • Industrial control systems and HMI
  • Consumer electronics and home appliances
  • Digital signage and information displays
Technical Considerations
  • Viewing angle limitations in some models
  • Contrast ratio constraints compared to newer technologies
  • Backlight power requirements
  • Potential motion blur in fast-moving content
  • Fixed panel structure with limited customization
Company Profile

Huaxin Technology (Enshi) Co., LTD - Founded 2009 in Hubei, China

  • Specializes in LCD, LCM, TFT, backlight, and OLED technologies
  • 500+ employees with dedicated R&D and QC teams
  • Registered capital: 20 million RMB
