4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d
4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d
4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d
4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d
4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d
4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d
4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d
4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d
4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d
4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d
Specifications
Brand Name :
HuaXin
Model Number :
ESHX043PIFHD001-01A
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$27.3
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
FHD tft
Name :
tft display
Display size :
4.3 inch TFT LCD
Resolution :
1920×1080
interface :
50 PINS LVDS
Brightness :
1000C/D
view angle :
all
Description
4.3 Inch High Resolution TFT Display

High brightness 1920×1080 resolution display with 50-pin LVDS interface and 1000cd/m² brightness.

Key Specifications
Display Technology FHD TFT
Display Size 4.3 inch
Resolution 1920×1080
Interface 50 PINS LVDS
Brightness 1000cd/m²
View Angle All directions
Technical Parameters
Part No. ESHX043PIFHD001-01A

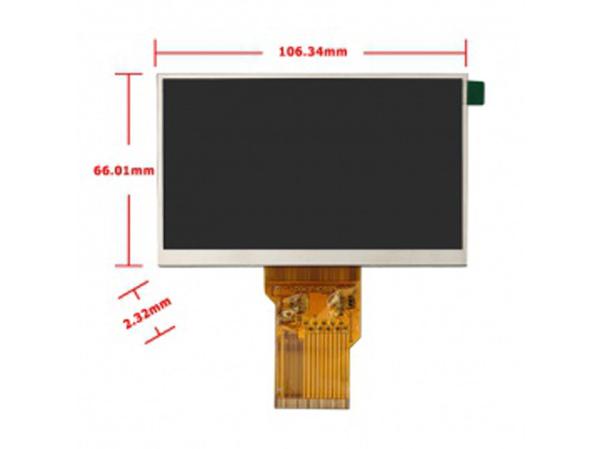

Outline Size 106.34 × 66.01 mm
Active Area 100.8 × 56.7 mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

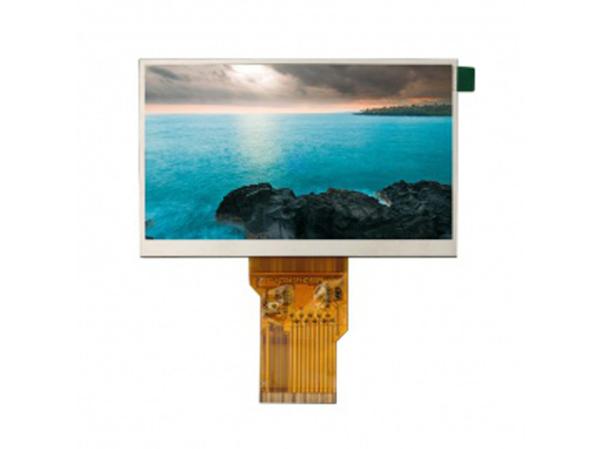

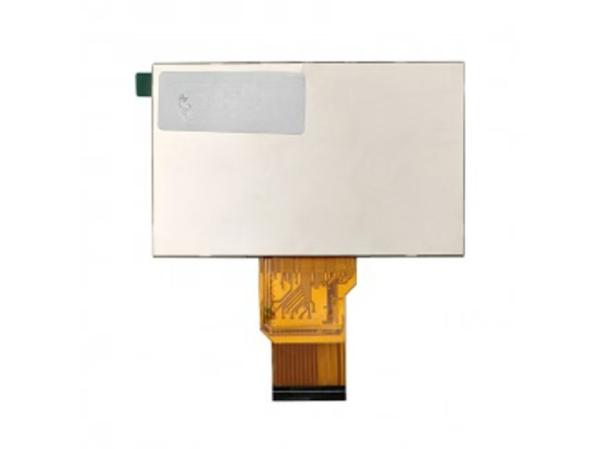

Product Images
4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d 4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d 4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d 4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d

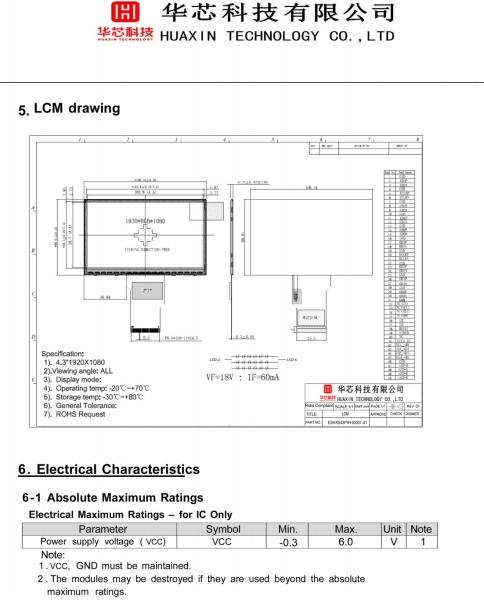

Technical Diagrams
4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d 4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d 4.3 inch high resolution high brightness tft display 1920×1080 dots 50 pins LVDS interface 1000c/d
TFT Display Characteristics
  • High image quality with excellent resolution and color accuracy
  • Fast response times for smooth image transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Versatile sizing options for various applications
  • LED backlighting for consistent illumination
Considerations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio limitations
  • Backlighting affects power consumption
  • Potential for motion blur in fast-moving content
  • Fixed panel structure with limited flexibility
  • Color gamut may be narrower than some alternatives
Applications
  • Car navigation systems and printers
  • Video communication and digital advertising
  • Automotive and medical devices
  • Fitness equipment and handheld devices
  • Industrial control systems and home appliances
Manufacturer Advantages
  • Cost-effective production facilities in inland China
  • Advanced equipment for consistent quality
  • Automated processes for efficiency and reliability
  • 20+ years of LCD industry expertise
  • Custom design capabilities
About Huaxin Technology

Founded in 2009 in Hubei Enshi, Huaxin Technology specializes in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Certifications: ISO14001, ISO9001/IATF16949, SGS

Product Range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs

Company Size: 500+ employees with 10% R&D and 15% QC staff

Production Capacity
Product 2021 2022 2023 2024 2025
LCD (thousands/day) 4.5 9 9 9 9
LCM (thousands/day) 70 150 300 450 450
Backlight (thousands/day) 100 200 300 500 500
OLED (thousands/day) 10 20 30 40 50
