Specifications
Brand Name :
HuaXin
Model Number :
ESHX156FHM-N81
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$10-20
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
TFT module
Name :
tft panel
Display size :
6.4 inch
Resolution :
1024×768
Contrast Ratio :
1200:1
view angle :
85/85/85/85(U/D/L/R)
Description

6.4-Inch TFT LCD Display


Our 6.4-inch TFT LCD display features 1024×768 resolution and is equipped with GH7013 source IC for stable performance. Adopting RGB vertical stripe pixel arrangement, it delivers vivid, uniform color reproduction. With a precise active area of 129.792(H) × 97.344(V) mm, this display is easy to integrate into industrial control panels, medical monitors, and embedded systems.

Compact design, reliable quality—ideal for your specialized device needs.
Key Specifications:
Part No. ESHX064FHM-N81
Display Technology TFT module
Display Size 6.4 inch
Resolution 1024*768
View Angle 85/85/85/85 (U/D/L/R)
Active area 129.792(H) × 97.344(V)
Touch Screen Optional
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

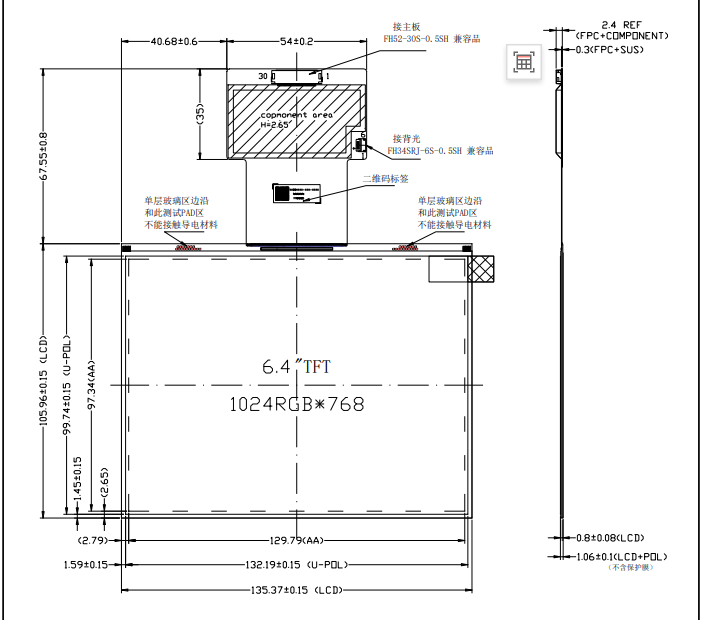

Technical Drawing:

  • 6.4-Inch LCD tft Display | 1024×768 Resolution ,Source IC GH7013 ,Pixel arrangement RGB Vertical stripe ,Active area 129.792(H) × 97.344(V)
    TFT Product Knowledge
    TFT Substrate Input and CF Substrate Input Flow Chart
    6.4-Inch LCD tft Display | 1024×768 Resolution ,Source IC GH7013 ,Pixel arrangement RGB Vertical stripe ,Active area 129.792(H) × 97.344(V)
    TFT Structure
    6.4-Inch LCD tft Display | 1024×768 Resolution ,Source IC GH7013 ,Pixel arrangement RGB Vertical stripe ,Active area 129.792(H) × 97.344(V)
    Our advantage
    • Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.
    • Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)

    • Certifications: ISO14001, ISO9001/IATF16949, SGS

    • Cost-effective production base located in inland city

      •Advanced equipment ensuring stable quality

      • Highly automated processes for efficiency and consistency

      • Experienced engineering team with 20+ years in LCD field

      •Custom product design capabilities

    Product Applications
    • Car navigation & printer
    • Video call & advertising
    • Automotive & medical devices
    • Fitness equipment & handheld devices
    • Industrial control and home appliance

    6.4-Inch LCD tft Display | 1024×768 Resolution ,Source IC GH7013 ,Pixel arrangement RGB Vertical stripe ,Active area 129.792(H) × 97.344(V)
