Specifications
Brand Name :
HuaXin
Model Number :
HXLCM040HD
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$3-10
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
TFT module
Name :
tft panel
Display size :
4 inch
Resolution :
720x960
Brightness(cd/m2) :
650
view angle :
85/85/85/85(U/D/L/R)
Active Area (mm) :
62.1X82.8
Panel size(mm) :
66X91.65X1.85
Description

4-Inch TFT LCD Display


4-inch TFT LCD display features 720×960 resolution and 650 nits high brightness, ensuring sharp visuals and clear display even in strong light. Equipped with a MIPI interface, it enables smooth signal transmission and easy integration into devices.
Suitable for portable instruments, smart terminals, and industrial control panels, it offers reliable performance and compact design for diverse application scenarios.

Compact design, reliable quality—ideal for your specialized device needs.

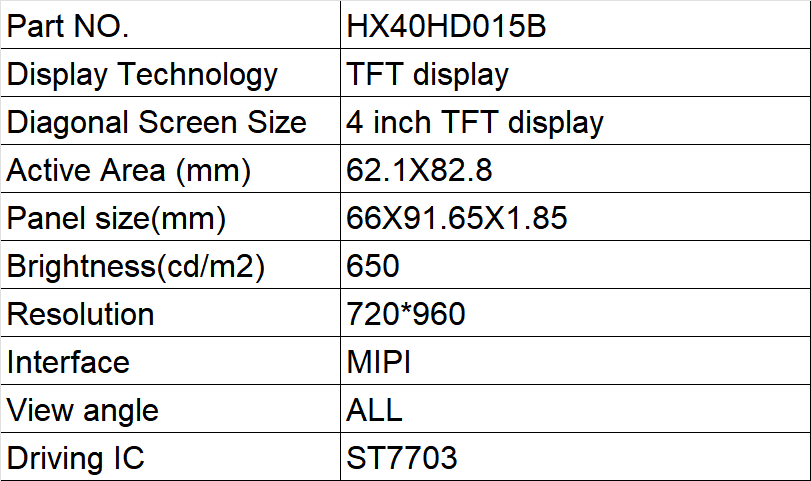

Key Specifications:
Part No. HX40HD015B
Display Technology TFT module
Display Size 4 inch
Resolution 720*960
Driving IC ST7703
View Angle 85/85/85/85 (U/D/L/R)
Active area 62.1X82.8
Panel size(mm) 66X91.65X1.85
Interface MIPI
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Technical Drawing:

  • 4.0-Inch LCD tft Display | 720*960 Resolution ,Source IC ST7703 ,Pixel arrangement RGB Vertical stripe ,Active area 62.1X82.8
    TFT Product Knowledge
    TFT Substrate Input and CF Substrate Input Flow Chart
    4.0-Inch LCD tft Display | 720*960 Resolution ,Source IC ST7703 ,Pixel arrangement RGB Vertical stripe ,Active area 62.1X82.8
    TFT Structure
    4.0-Inch LCD tft Display | 720*960 Resolution ,Source IC ST7703 ,Pixel arrangement RGB Vertical stripe ,Active area 62.1X82.8
    Our advantage
    • Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.
    • Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)

    • Certifications: ISO14001, ISO9001/IATF16949, SGS

    • Cost-effective production base located in inland city

      •Advanced equipment ensuring stable quality

      • Highly automated processes for efficiency and consistency

      • Experienced engineering team with 20+ years in LCD field

      •Custom product design capabilities

    Product Applications
    • Car navigation & printer
    • Video call & advertising
    • Automotive & medical devices
    • Fitness equipment & handheld devices
    • Industrial control and home appliance
