Specifications
Brand Name :
HuaXin
Model Number :
ESHX101WXM-NN0
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$10-50
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
TFT module
Name :
tft panel
Display size :
10.1 inch
Resolution :
1280×800
interface :
LVDS
Contrast Ratio :
1200:1
Brightness :
1000C/D
view angle :
89/89/89/89(U/D/L/R)
Description
10.1-Inch Large Industrial Widescreen Display
High-performance 1280*800 resolution display with LVDS interface and 1000cd/m² brightness, ideal for high-light workshops and portable monitoring devices.
Key Specifications:
Part No. ESHX101WXM-NN0
Display Technology TFT module
Display Size 10.1 inch
Resolution 1280*800
Interface LVDS
View Angle 89/89/89/89 (U/D/L/R)
Brightness 1000cd/m²
Touch Screen Optional
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

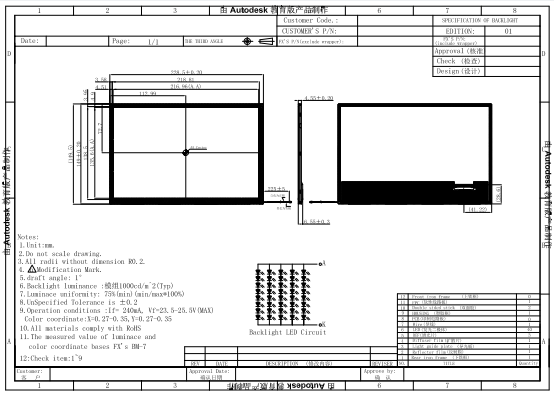

Technical Drawing:
10.1-Inch Widescreen TFT Display with 1280×800 Resolution and 1000cd/m² High Brightness for Industrial Applications
  • TFT Product Knowledge
    TFT Substrate Input and CF Substrate Input Flow Chart
    10.1-Inch Widescreen TFT Display with 1280×800 Resolution and 1000cd/m² High Brightness for Industrial Applications
    TFT Structure
    10.1-Inch Widescreen TFT Display with 1280×800 Resolution and 1000cd/m² High Brightness for Industrial Applications
    Our advantage
    • Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.
    • Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)

    • Certifications: ISO14001, ISO9001/IATF16949, SGS

    • Cost-effective production base located in inland city

      •Advanced equipment ensuring stable quality

      • Highly automated processes for efficiency and consistency

      • Experienced engineering team with 20+ years in LCD field

      •Custom product design capabilities

    Product Applications
    • Car navigation & printer
    • Video call & advertising
    • Automotive & medical devices
    • Fitness equipment & handheld devices
    • Industrial control and home appliance

    10.1-Inch Widescreen TFT Display with 1280×800 Resolution and 1000cd/m² High Brightness for Industrial Applications
