8.2 Inch Round TFT Display
8.2 Inch Round TFT Display
8.2 Inch Round TFT Display
8.2 Inch Round TFT Display
8.2 Inch Round TFT Display
8.2 Inch Round TFT Display
8.2 Inch Round TFT Display
8.2 Inch Round TFT Display
Specifications
Brand Name :
HuaXin
Model Number :
HX070THD8970ANT
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
round lcd display module
Name :
round tft display
Display size :
8.2 inch
Resolution :
1080*1080
interface :
MIPI
view angle :
all
Description
8.2 Inch Round TFT Display with 1080x1080 Resolution and 500c/d Brightness for High Clarity Applications
Technical Specifications
Part No. HX082YMO-E40
Display Size 8.2 inch round tft display
Outline Size (mm) 219X224X4
AA Size (mm) 208X208
Resolution 1080X1080
Interface 40 PINS MIPI
Brightness 500c/d
View Angle all
Touch oncel touch
touch IC FT8201P
Product Images

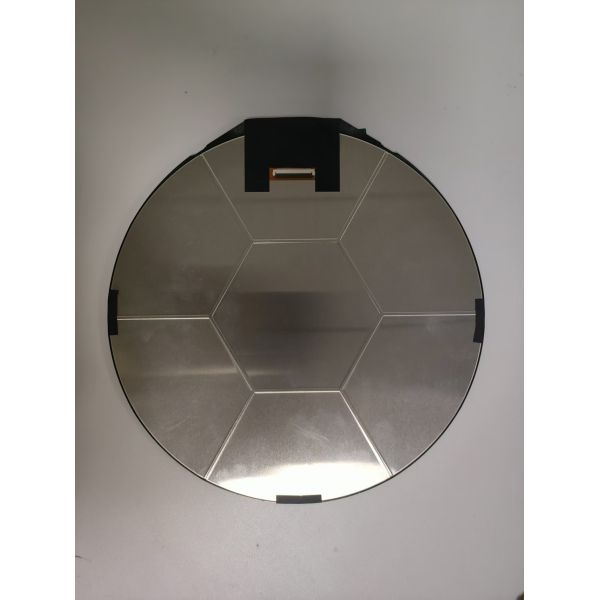

8.2 Inch Round TFT Display

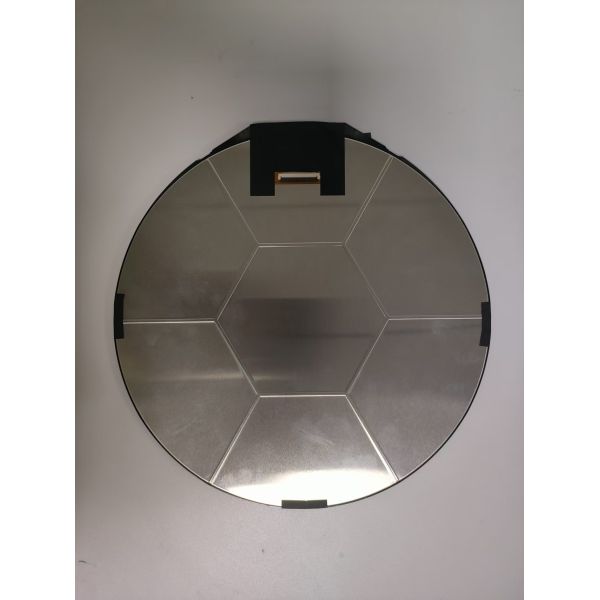

8.2 Inch Round TFT Display

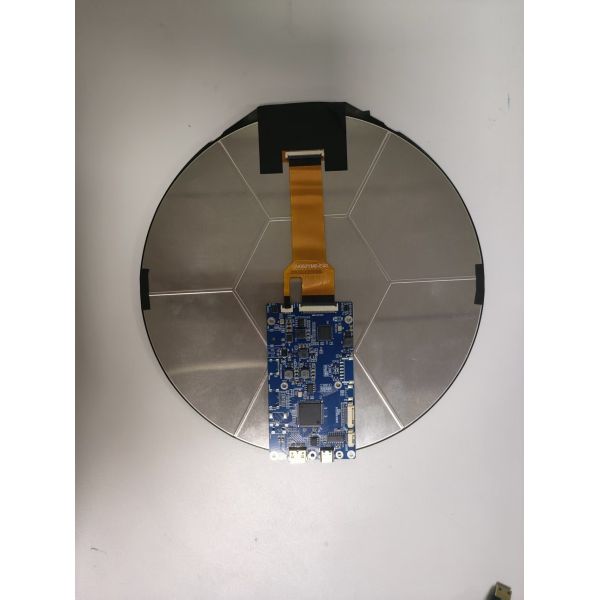

8.2 Inch Round TFT Display

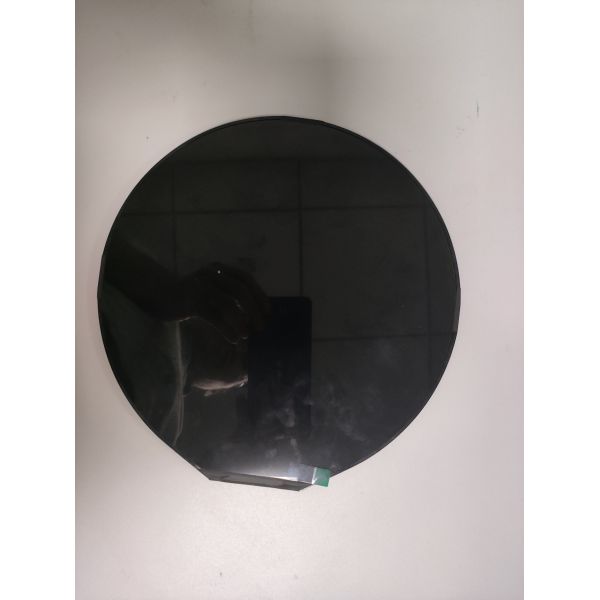

8.2 Inch Round TFT Display

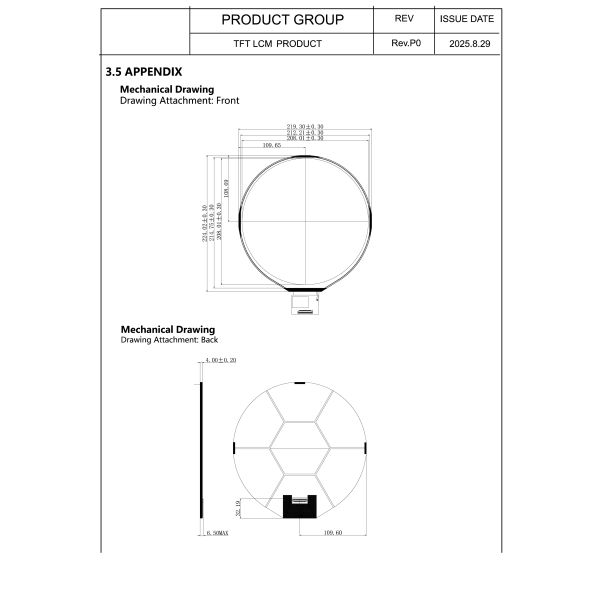

Technical drawing
8.2 Inch Round TFT Display
Manufacturer Advantages
  • Cost-effective production facility in inland China
  • Advanced equipment ensuring stable product quality
  • Automated manufacturing processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD technology
  • Custom design capabilities for specialized requirements
About Huaxin Technology (Enshi) Co., LTD
Established in 2009 and located in Hubei Enshi, Huaxin Technology is a high-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.
Product Range
  • VA, TN, HTN, STN, FSTN, CSTN LCD series
  • COB, TBA, COG, TP, LED backlight LCM series
Company Details
Registered capital 20 million
Staff 500+ (10% R&D, 15% QC)
Certifications ISO14001, ISO9001/IATF16949, SGS
Production Capacity (k/Day)
Product 2021 2022 2023 2024 2025
LCD 4.5 9 9 9 9
LCM 70 150 300 450 450
Backlight 100 200 300 500 500
OLED 10 20 30 40 50
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for different applications
  • LED backlighting for consistent illumination
TFT Display Limitations
  • Viewing angles may be limited compared to other technologies
  • Moderate contrast ratios
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
