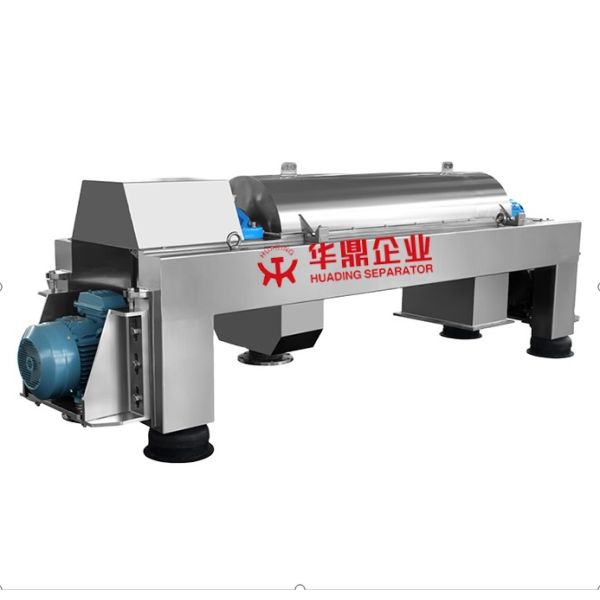

High Performance Horizontal Food Waste Used Oil Decanter Centrifuge
High Performance Horizontal Food Waste Used Oil Decanter Centrifuge
High Performance Horizontal Food Waste Used Oil Decanter Centrifuge
High Performance Horizontal Food Waste Used Oil Decanter Centrifuge
Specifications
Place of Origin :
Jiangsu, China
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Bearing, Gearbox, Motor
Brand Name :
HUADING
voltage :
110-480V customized
power(w) :
4-300KW customized
dimension(l*w*h) :
Depend on models
warranty :
1 Year
key selling points :
Long Service Life
MATERIAL :
SS304/316L/2205...
INVERTERS :
/ABB
Application :
Liquid Solid Separation
Electronic parts :
/SCHNEIDER/CHINT
Control cabinet :
PLASTIC SPRAY/STAINLESS STEEL
Type :
Centrifuge
Condition :
New
Warranty of core components :
1 Year
Showroom Location :
None
Applicable Industries :
Food & Beverage Factory, Factory
Weight :
2000
Marketing Type :
New Product 2022
MOQ :
1 set
Price :
$26,000-30,000 / set
Description
High Performance Horizontal Food Waste Used Oil Decanter Centrifuge
High Performance Horizontal Food Waste Used Oil Decanter Centrifuge High Performance Horizontal Food Waste Used Oil Decanter Centrifuge High Performance Horizontal Food Waste Used Oil Decanter Centrifuge
Product Features
The rotating part of these decanter tricanter centrifuges is mounted on a compact, in-line frame, with main bearings at both ends. Vibration dampers are placed under the frame. The rotating part is enclosed in a casing with a cover and a bottom section with integrated outlets for both solids and the liquid being removed.
Quality Assurance & Certifications
  • JB/T502-2015 Chinese national standard of decanter centrifuge
  • 2006/42/EC Machinery Directive
  • 2014/35/EU Low voltage Directive
  • 2014/30/EU Electromagnetic compatibility Directive
  • Quality management system of ISO9001-2000
Technical Specifications
Specification Range
Bowl Diameter 186-720mm
Bowl Length 744-3000mm
Bowl Speed 2000-6000rpm
G-Force 1600-4000g
Weight 600-8000kg
Primary Motor 5.5-132kw
Secondary Motor 2.2-45kw
Material AISI 304/316/316L/Duplex Steel
Noise Level <88db
Drive System Options
High Performance Horizontal Food Waste Used Oil Decanter Centrifuge
One Motor Drive
This is a very simple design that is cost-effective to purchase and operate. One motor drive systems are used when the solids volume is constant, the solids are easy to convey, and requirements regarding the residual water content of the solids are not very stringent. The input shaft of the drive is set in motion by the main motor via a second belt drive, generating the differential speed as a function of bowl speed and gear transmission.
High Performance Horizontal Food Waste Used Oil Decanter Centrifuge
Two Motor Drive
This system enables cost-effective regulation of differential speed under good operating conditions with wide regulating ranges. The secondary motor sets the input shaft of the gear in motion and generates the differential speed as a function of bowl speed and gear transmission. Two motor drives are used when solid volumes fluctuate significantly, when solids are conveyed under difficult conditions, and when stringent requirements apply to residual water content.
High Performance Horizontal Food Waste Used Oil Decanter Centrifuge
Hydro Drive
This system operates similarly to the two motor drive but features a different design. Instead of a mechanical gear, a rotating hydromotor is installed and supplied with hydraulic regulation by a pump unit. Since the differential speed is proportionate to the conveyed quantity of oil, automatic regulation can be provided without any problem.
High Performance Horizontal Food Waste Used Oil Decanter Centrifuge High Performance Horizontal Food Waste Used Oil Decanter Centrifuge High Performance Horizontal Food Waste Used Oil Decanter Centrifuge High Performance Horizontal Food Waste Used Oil Decanter Centrifuge
Frequently Asked Questions
How can we visit your factory?
International visitors arriving at Shanghai Airport or domestic visitors arriving at Yixing Station will be provided with transportation to our facility.
How do you guarantee the quality of your products?
With over 60 years of experience, we implement strict quality policies using advanced processing machines, certified operators, and internationally renowned components. Comprehensive testing and inspections are conducted throughout production.
What payment methods does your company accept?
We accept most payment methods, primarily T/T (Telegraphic Transfer).
How long is the warranty period of your products?
12 months warranty period.
What are your company's shipping terms and delivery time?
Each unit is customized with delivery times of 60-90 days.
