Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HUADING
MOQ :
1 set
Price :
$24,000-25,000 / set
product type :
/
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Bearing, Motor, Gear, bowl
voltage :
110`440V
power(w) :
customized
dimension(l*w*h) :
Depends on models
warranty :
1 Year
key selling points :
Competitive Price
Capacity :
/
Weight (KG) :
980
setting speed :
Adjustable
HMI :
SIEMENS
PLC :
SIEMENS
Frequency inverter :
SIEMENS/ABB
Material :
SS304/316L/2205
Centrifugal type :
Disc Separator
Machine type :
Separator
Advantage :
Cost-effective
Description :
New & High-quality
Showroom location :
Canada & Britain & America & Germany
Application :
Food & Beverage & Farms
Description

E Certificated High Configuration Self-cleaning Biodiesel Disc Centrifugal Separator

Company overview
Yixing Huading Machinery Co.,Ltd, is one of the market leaders in the field of centrifugal separation
technology in China.The company has over 60 years experience in the design and manufacturing.
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Why Choose Us

60+ experience accumulation

Separators and decanters from Huading Separator are used in food, beverage, pharmaceutical, chemical, marine, oilfield, energy,
mining, mechanical engineering and wastewater treatment etc.

40000+ installations

HuaDing separators has been installing in more than 50 countries/regions.

innovation is our tradition

More than 100 models have been created to apply broadly in many fields.
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Working principle
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Bowl diagrammatize
1. feeding pipe
2. centripetal pump
3. discharge port
4. sliding piston
5. small piston
6. sliding piston chamber
7. water room
Afterstarting and reaches the full speed, the operating water 7 gets into the sealed chamber 6 to make the piston 4 rise, close the outlet 3. Then the material to be separated is fed into the bowl from pipe 1. Due to the centrifugal force, the impurities gather on the periphery of the bowl. When at presentintervals, the operating water 7 flows into open chamber 5 and forces the sliding piston to drop down, open the outlet 3, the impurities is discharged outside the bowl from outlet 3 and outside the machine by impurities collection set; at the same time, the light phase gather in the center of the bowl, and is discharged outside the machine by centripetal pump 2, heavy phase was introduced to centripetal pump room via disc gland,and discharged out by centripetal pump, finish one cycle, operating water 7 enter into sealing chamber 6, raise up piston 4, ejection port 3 closed...cycle in this way.
Main parts
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Manufacturing standard
1. JB/T20139-2011
Centrifugal machinery requirements
2. JB/T8051-2008
Specification for strength calculation of centrifuge bowl
3. GB19815-2005
Safety requirements for centrifuges
4. JB/T6418-92
Centrifugal machinery - determination of cleanliness
5. JB/T7214-94
General technical specification for centrifugal machinery coating

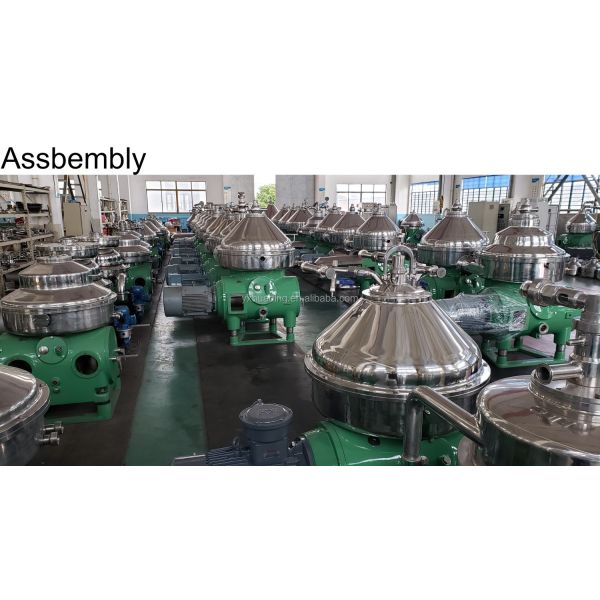

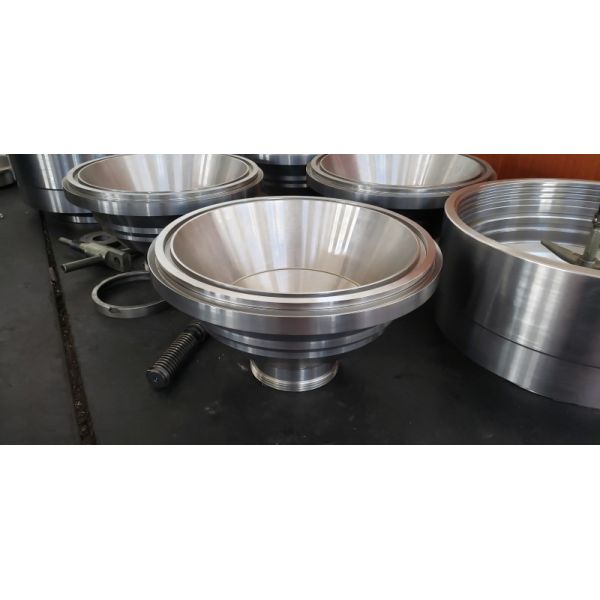

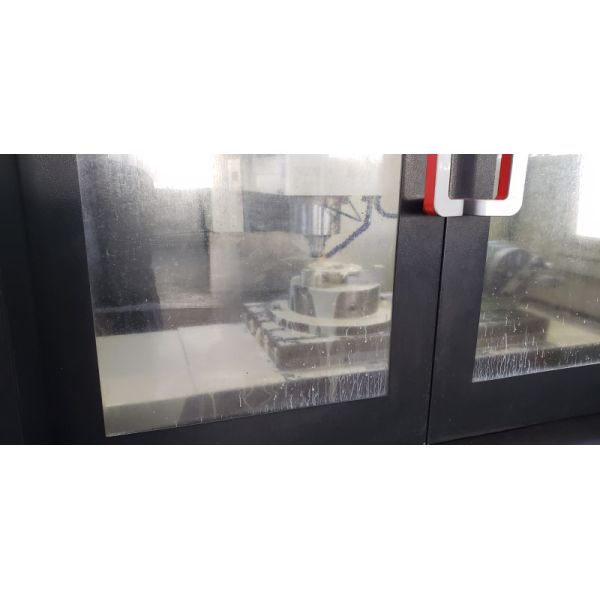

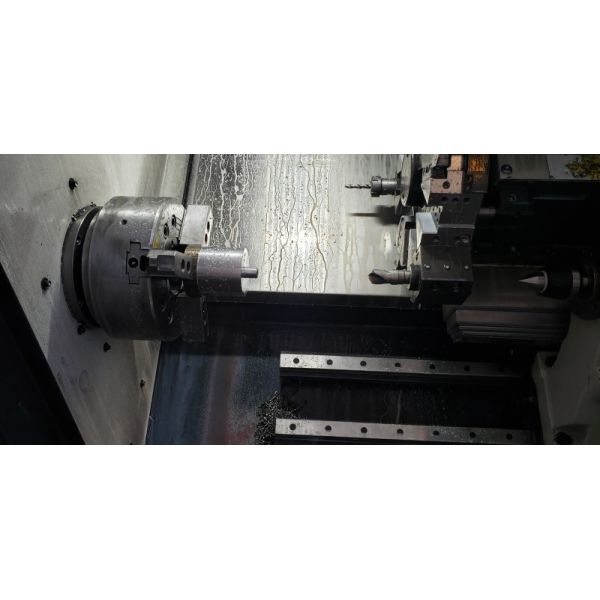

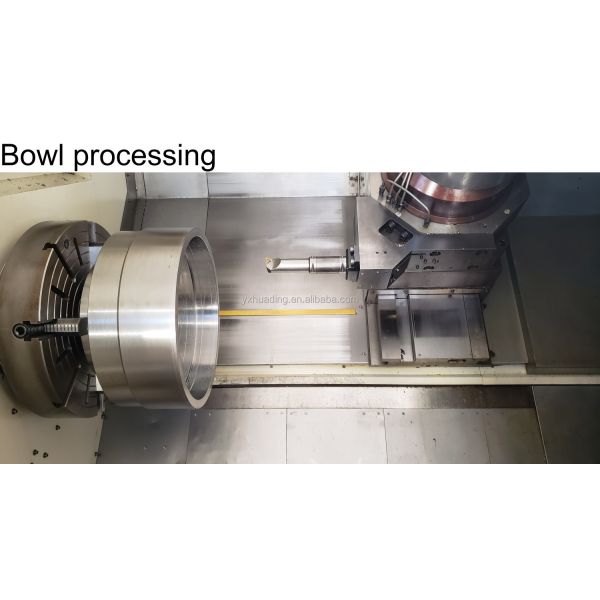

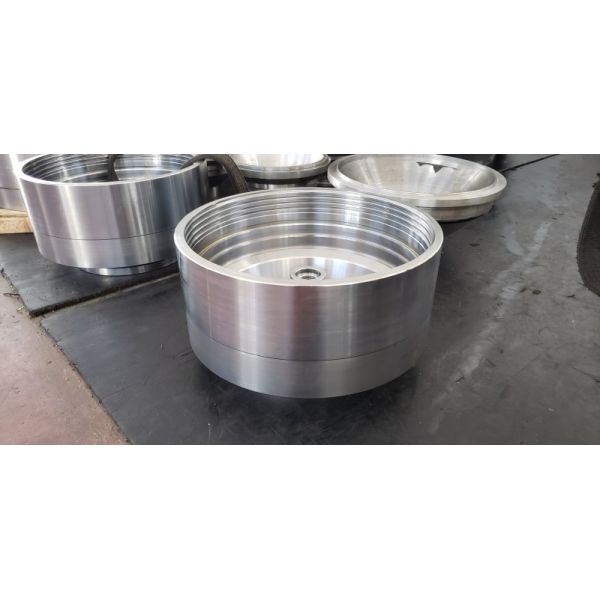

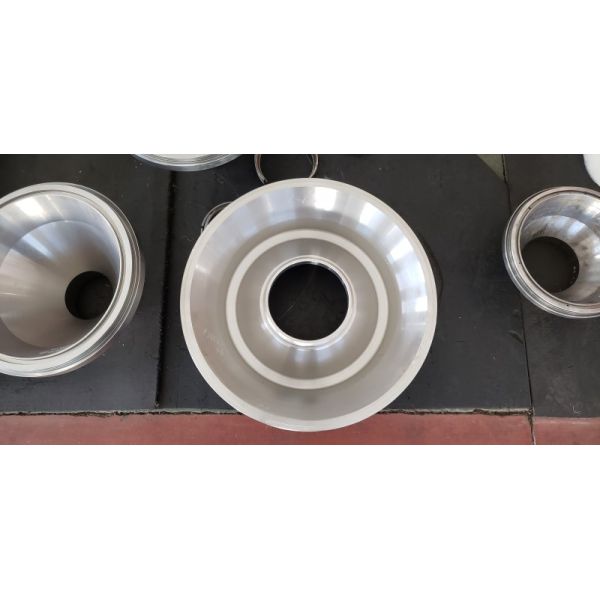

Manufacturing
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
Green Biodiesel Separator 110V - 440V Disk Stack Centrifuge Customized
