Huading separator BDSD, BDTD series disc stack biodiesel separator are specially designed for use in the production of biodiesel and are particularly suitable in the following applications:

= Separation of glycerol from methylesters after esterification and transesterification reactions
= Washing of methylesters
= Purification of glycerol

* inert gas system is also available

Working principle

The product flows through feed pipe (1) into the bowl and is separated into light and heavy liquid phases in the disc stack (5). The light liquid phase flows to the centre of the bowl from where it is discharged by centripetal pump (6). The heavy liquid phase is conveyed under pressure to centripetal pump (7).

The separated solids are collected in the sediment holding space from where they are instantly ejected at periodic intervals through ports by means of the hydraulically operated sliding piston, whereby the closing liquid is feed through piston valve. The ejection cycles are initiated via the control unit.

Capacity: 1000 - 50 000 L/h

Each biodiesel separator comes complete with control unit, flameproof electric motor, inlet and outlet connections, auxiliary equipment,a spare parts kit and a set of tools.

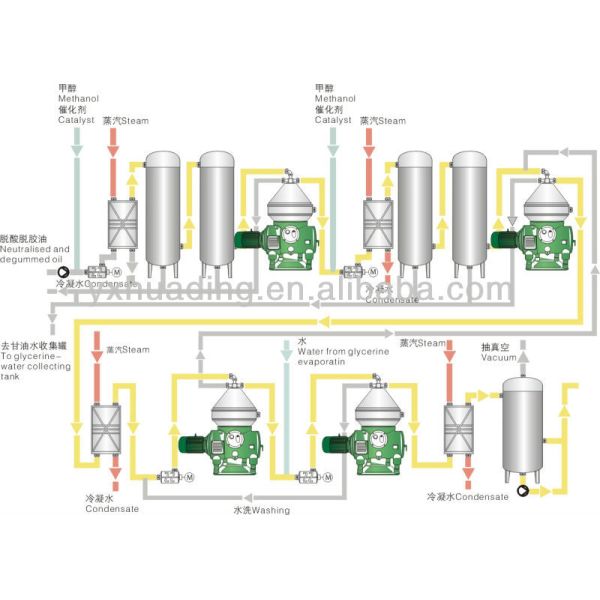

Biodiesel process flow with biodiesel separator

Quality guarantee
1.Separator manufactured in compliance with quality guaranteen system of ISO9001-2000.
2.The Seller shall guarantee that the separator manufactured in compliance with quality guarantee standard of JB/T8103-2005.

3.The guarantee period shall be 1 year counted from the date on which the commodity arrives at the port of destination.
