Specifications
Place of Origin :
China
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Motor
Brand Name :
HUADING
voltage :
110-480V customized
power(w) :
4-300KW customized
dimension(l*w*h) :
Depend on models
warranty :
1 Year
key selling points :
Competitive Price
MATERIAL :
SS304/316L/2205...
INVERTERS :
/ABB
Application :
Liquid Solid Separation
Electronic parts :
/SCHNEIDER/CHINT
Control cabinet :
PLASTIC SPRAY/STAINLESS STEEL
After-sales Service Provided :
Video technical support
Type :
Centrifuge
Condition :
New
Warranty of core components :
1 Year
Showroom Location :
None
Marketing Type :
New Product 2022
Weight :
500
Applicable Industries :
Food & Beverage Factory, Factory
MOQ :
1 set
Price :
$6,000-20,000 / set
Description
High Capacity Sludge Dewatering Decanter Machine
Yixing Huading Machinery Co., Ltd is a market leader in centrifugal separation technology with over 60 years of experience in design and manufacturing.
High Capacity Sludge Dewatering Decanter Machine
Why Choose Huading Separator
  • 60+ Years Experience: Our separators and decanters serve diverse industries including food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, and wastewater treatment.
  • 40,000+ Installations: HUADING separators have been installed in more than 50 countries worldwide.
  • Innovation Tradition: Over 100 specialized models created for broad application across multiple industries.
Working Principle
High Capacity Sludge Dewatering Decanter Machine
1. Frame
2. Gearbox
3. Primary motor
4. Secondary motor
5. Bowl
6. Screw
7. Hood
The feed enters the bowl through a stationary inlet tube and is accelerated smoothly by an inlet distributor. The centrifugal force from rotation causes sedimentation of solids on the bowl wall.
Separation occurs in a horizontal cylindrical bowl equipped with a screw conveyor that rotates in the same direction as the bowl but at a slightly different speed, moving solids toward the conical end where cake discharges through solids discharge openings.
The separation process runs through the entire cylindrical section, with clarified liquid separated by an adjustable overflow plate.
High Capacity Sludge Dewatering Decanter Machine
Design Features
Material Construction
All material contact surfaces are made of high-quality stainless steel or duplex stainless steel. Bowl body features centrifugal casting to ensure equipment durability and reliability.
Bowl and Screw Design
Specially designed bowl and spirals press against dewatered cake at the conical end in a high-pressure, two-way manner to maximize cake dryness and minimize moisture content.
Drive System
Double motor double frequency conversion with multi-stage planetary gear drive. The control system automatically adjusts speed differential between bowl and screw in real-time based on raw material characteristics and user requirements. Unique DC bus-powered design ensures strong spiral torque while significantly reducing power consumption. Multiple drive options available including full hydraulic drive.
High Capacity Sludge Dewatering Decanter Machine High Capacity Sludge Dewatering Decanter Machine
Lubrication System
Available with traditional manual grease lubrication or optional automatic grease lubrication (thin oil lubrication) for real-time lubrication of main bowl bearing and screw bearing, significantly improving bearing life and overall machine durability.
Control System
Standard PLC + HMI configuration fully integrates key operational parameters including speed, differential, current, torque, and vibration monitoring.
High Capacity Sludge Dewatering Decanter Machine
Wear Protection
Comprehensive wear protection options including welded hard facing, spray coating, ceramic ports, Zn carbide tiles, and chilled hard metal port castings. All wear protection elements (except welded hard facings or spray coatings) are field replaceable.
High Capacity Sludge Dewatering Decanter Machine

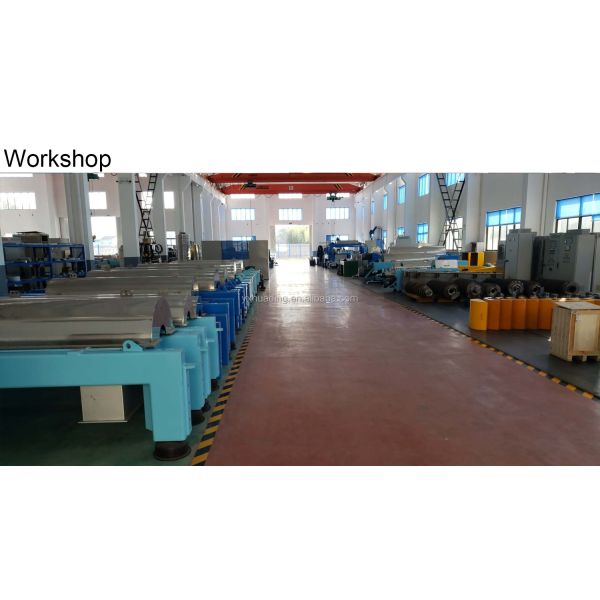

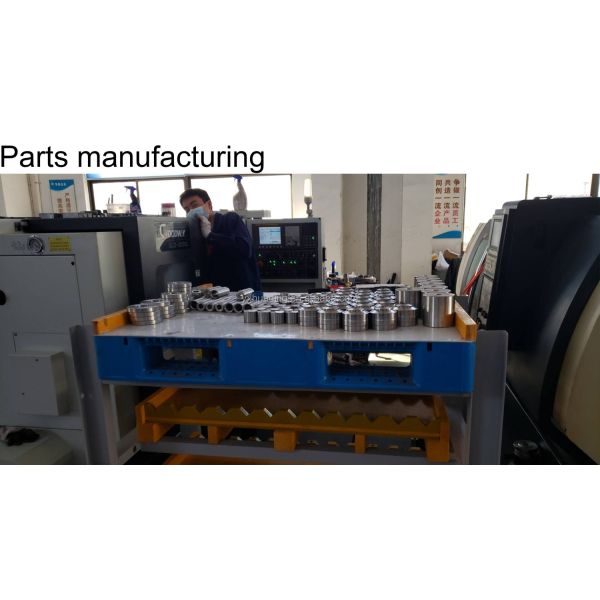

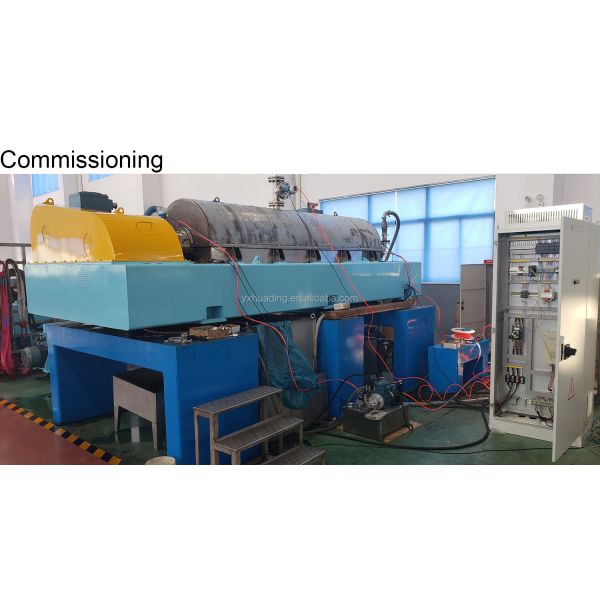

Manufacturing Excellence
High Capacity Sludge Dewatering Decanter Machine High Capacity Sludge Dewatering Decanter Machine High Capacity Sludge Dewatering Decanter Machine High Capacity Sludge Dewatering Decanter Machine High Capacity Sludge Dewatering Decanter Machine

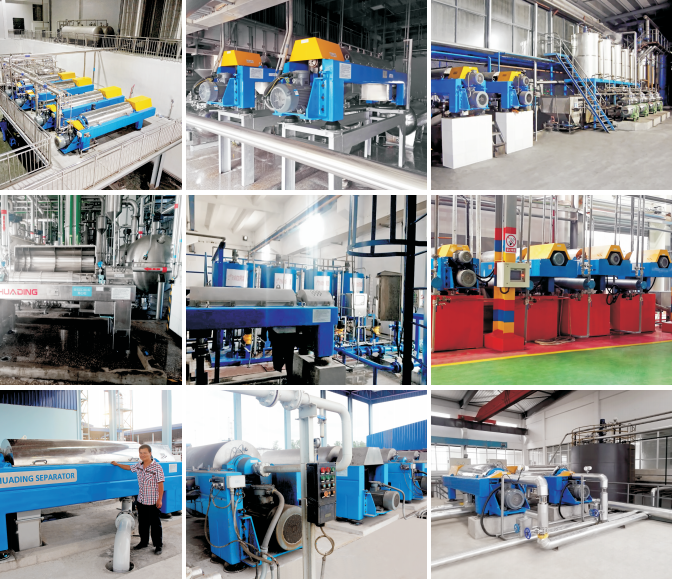

Global Installation References
High Capacity Sludge Dewatering Decanter Machine
