Specifications
Brand Name :
HUADING
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
$24,000-25,000 / set
Payment Terms :
T/T,Western Union
Supply Ability :
40 set / months
Delivery Time :
60 working days
Packaging Details :
Standard seaworthy package
Core Components :
Bowl
Bowl volume :
8 - 300 L
Bowl weight :
50-15000 Kg
Solids holding space :
2 - 50 L
Inlet pressure :
0-0.1 Mpa
core components :
PLC, Gearbox, Motor, motor, machien boday
Structure :
vertic disc type
Description

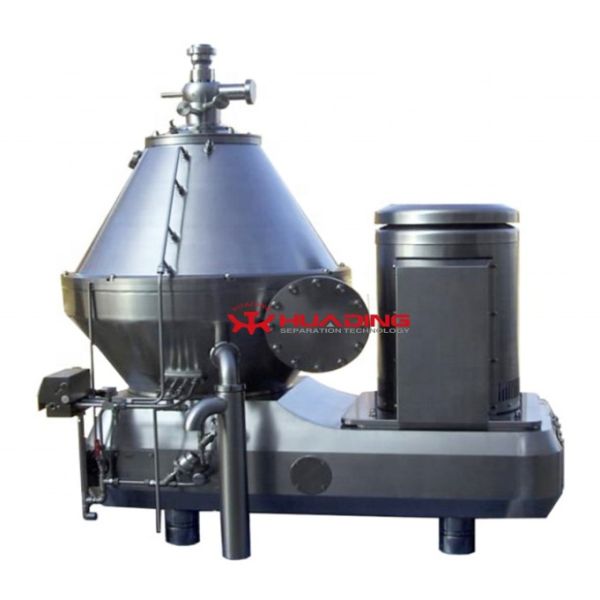

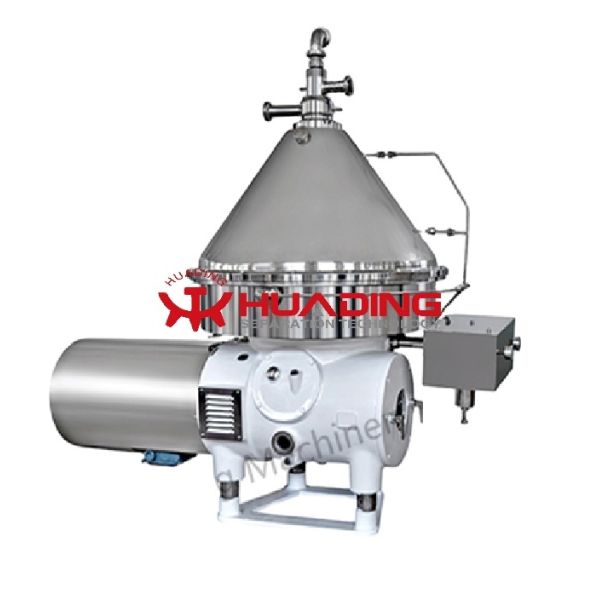

Industrial Grade Disc Oil Separator
Designed to enhance oil separation efficiency and reduce maintenance requirements for industrial applications.
Company Expertise
Huading Separator is a market leader in centrifugal separating technology with over 60 years of experience developing and manufacturing centrifugal separation equipment.
Process Components
  • Feed System
  • Discharge Mechanism
  • Inlet Tube
  • Disc Stack
  • Solids Holding Space
  • Centripetal Pump Chamber
  • Centripetal Pump
Technical Specifications
Parameter Specification
Drive System Gear / Belt
Bowl Speed 4000 - 10000 rpm
Centrifugal Force > 10,000 g
Bowl Volume 8 - 300 L
Bowl Weight 50 - 15000 Kg
Solids Holding Space 2 - 50 L
Inlet Pressure 0 - 0.1 Mpa
Liquid Outlet Pressure 0.2 - 0.6 Mpa
Starting Time 5 - 30 mins
Stopping Time (no brakes) > 40 mins
Compliance Standards
  • JB/T 8103 - Chinese National Standard for Disc Centrifuges
  • 2006/42/EC (Machinery Directive)
  • 2014/35/EU (Low Voltage Directive)
  • 2014/30/EU (Electromagnetic Compatibility)
  • ISO9001-2000 Quality Management System
Customized Crude Oil Drilling Equipment
Dimensions: 2000 × 1200 × 1800mm
Customized crude oil drilling equipment designed for factory use applications.
Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements
As China's leading manufacturer of disc separators since 1954, Huading Separator brings over 60 years of tradition and expertise to mechanical separating technology. Our developments serve diverse industries including beverage, dairy, oil and fat recovery, chemicals, , biotechnology, starch technology, marine engineering, energy, oil fields, and industrial applications.
Centrifugal Separation Technology
Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements
The disc stack separator efficiently separates solids and liquid phases in a continuous process using high centrifugal forces. Denser solids move outward against the rotating bowl wall while less dense liquids form concentric inner layers. The interface position between phases can be adjusted for maximum separation efficiency. The disc stack configuration dramatically accelerates separation through increased surface area.
2-Phase Separation Process
Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements
Separation occurs within a rotating bowl where feed enters via a stationary inlet pipe. The distributor ensures smooth acceleration before the feed enters the disc stack. Liquid phases move through the disc stack to the center and are pumped out via a paring disc, while solids collect in the periphery for intermittent discharge through a hydraulic system.
3-Phase Separation Process
Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements
In 3-phase separation, the suspension enters the disc stack with heavy phase and sludge moving toward the bowl periphery while light phase flows toward the center. Heavy phase is pumped out via a paring device, and solids discharge intermittently through a hydraulic system that opens solids ports at the bowl periphery.
60+ Years
Industry Experience
40,000+
Global Installations
100+
Centrifuge Models
Worldwide, many well-known food and pharmaceutical manufacturers rely on Huading centrifugal separation technology.
Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements
Quality Certifications
All products pass rigorous inspection standards including CE and ISO certifications with 100% quality assurance.
Manufacturing Process
Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements Industrial Grade Disc Oil Separator Designed to Enhance Oil Separation Efficiency and Reduce Maintenance Requirements
Packaging & Shipping
Package: Standard export carton packing
Delivery Time: 30-90 days after order confirmation, with exact dates determined by production season and order quantity
