Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HUADING
MOQ :
1 set
Price :
$6,000-8,000 / set
product type :
liquid separation
voltage :
Customized
power(w) :
3kw
dimension(l*w*h) :
600*900*1600
warranty :
1 Year
key selling points :
Low Maintenance Cost
Capacity :
501-1000l/h
Weight (KG) :
60
setting speed :
3000RPM
After-sales Service Provided :
Engineers available to service machinery overseas
Operation :
manual
Material :
Stainless Steel
Description

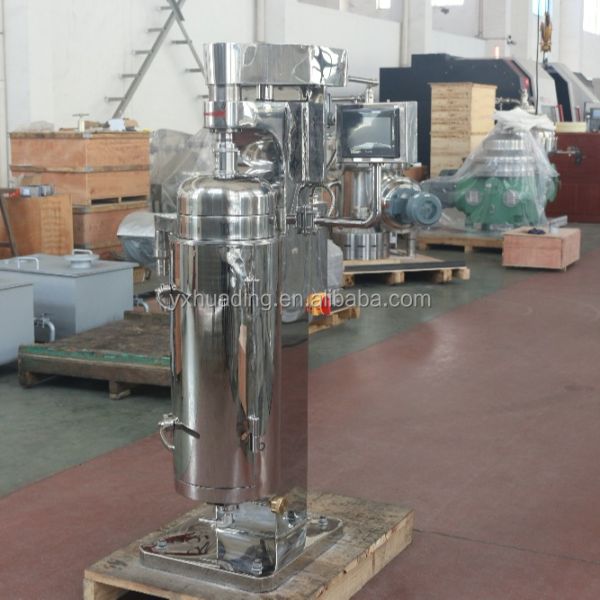

Tubular Centrifuge

Description:

Tubular centrifuge is a kind of vertical centrifuge with high speed and suitable for low solid content separation,The tubular centrifuge has its two types:GF,GQ

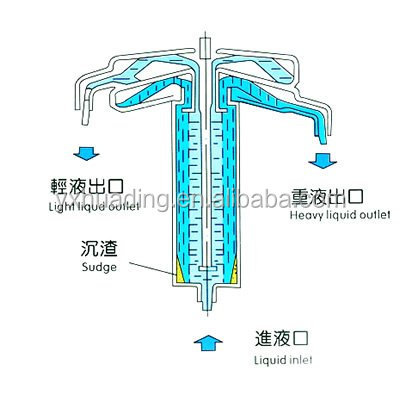

GF separation type: It is mainly used for the separation of all kinds of emulsion which is difficult to be separated in separation industry, especially suitable for liquid-liquid separation with very small gravity differential of two phases and separation of liquid-liquid-solid phases contained a little impurity.

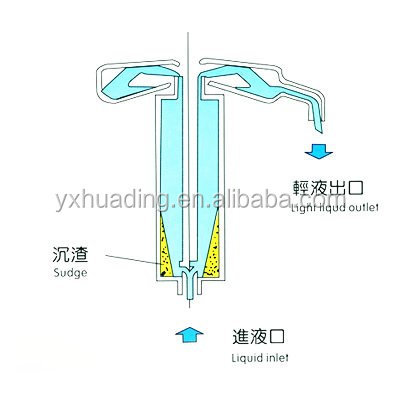

GQ--clarification type: It is mainly used for the separation of all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, fine particles and very small differential gravity of the two phase.

Main technical data:

Item

Model

GF/GQ75

GF/GQ105

GF/GQ125

GF/GQ150

Bowl

Diameter(mm)

75

105

125

150

Height (mm)

430

730

730

730

Volume(L)

2

6

8

11

Speed(r/min)

20000

18000

16000

14000

Separation ration(G)

16700

15700

15600

15000

Working pressure(Mpa)

≥0.05

Passing capacity(L/h)

500

1000

1500

2000

Motor(KW)

1.5

3

4

4

Dimension(L*W*H)

660×390×1200

700×450×1600

900×550×1600

900×580×1670

Weight(KG)

250

500

535

700

Main structure:

3000RPM Tubular Centrifuge 1600MM 3kw Tubular Bowl

1. bowl parts(5)

2. frame parts(16)

3. head parts(11)

4. pinch roller parts(13)

5. sliding bearing parts(3)

6. driving body parts(14).
