0.75KW Oil Tubular Centrifuge Filter 3KW Liquid Separation Tubular Bowl Centrifuge
0.75KW Oil Tubular Centrifuge Filter 3KW Liquid Separation Tubular Bowl Centrifuge
Specifications
Brand Name :
HUADING
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 Set
Price :
USD20,000-USD200,000 per set
Payment Terms :
T/T,L/C,Western Union
Delivery Time :
60 working days
Packaging Details :
fumigation wooden case
Usage :
Solid Liquid Liquid Separation
Material :
Food Grade Stainless Stel
Motor :
0.75-3 KW
Dimension :
According To The Model
Driving Mode :
Belt
Application :
Oil Water Separation
Description

GF Oil Tubular Centrifuge Filter Bowl 3KW Liquid Separation

Product description

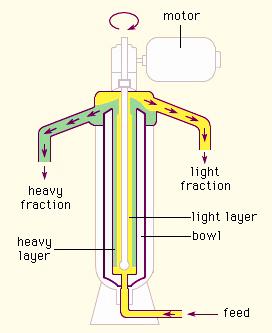

It is mainly used for various types of emulsions which are hard to separate in industries, especially suitable for liquid-liquid separation of those with little difference in the specificgravity of the two phases, or liquid-liquid-solid three phase separation of those containing small amounts of impurities. The liquid of high density will form an outer ring, and the liquid of light density wih form an inner ring. They will flow to their respective liquid outlets on the upper part of the bowl for discharging. The small amounts of solid will deposit on the bowl walls and be manually discharged after the machine stop.

Product features

The tubular centrifuge is a kind of centrifugal equipment with very high separation factor. The minimum separation particle is 1 micron. It is especially suitable for extraction, concentration and clarification of materials with little difference in the specific gravity of liquid and solid phases, fine solid particle size, low solid content and strong corrosive media. It is mainly used for solid liquid separation and liquid liquid solid separation of materials in such industries as food, chemical industry, beverage, biological pharmacy, blood products, etc. The machine has such features as good separation effect, high output, small floor space and convenient operation.

0.75KW Oil Tubular Centrifuge Filter 3KW Liquid Separation Tubular Bowl Centrifuge

Product parameter

GQ/GF75

GQ/GF105

GQ/GF150

Drum speed

20000R/min

16300 r/min

14000 r/min

Max centrifugal force

22500

21000

17000

Drum inner diameter

75 mm

105 mm

150 mm

Drum effective length

450mm

730 mm

730mm

Solid volume in drum

2.7L

6 L

10L

Stuff inlet pressure

<0.1Mpa

<0.1Mpa

<0.1Mpa

Output (water flux)

500L/H

1500 L/H

3000 L/H

Motor power

1.5kw

2.2KW

3 KW

Weight

300KG

480kg

550kg
Company Introduction

Huading Separator has been at the forefront in the field of centrifugal separation technology for more than 60 years, established in 1954, is the leader in mechanical separating technology in China. The machines produced by Huading Separator are used in a wide range of areas - in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields, water treatment, such as waste water treatment, sludge dewatering, etc.

0.75KW Oil Tubular Centrifuge Filter 3KW Liquid Separation Tubular Bowl Centrifuge

FAQ

1. Q: How can we visit your factory?
A: You are from abroad, and you are sitting at Shanghai Airport.
If you come from a domestic city, fly or train directly to Yixing Station. We will pick you up at the train station.
2.Q: How do you guarantee the quality of your products?
A: Our company is an enterprise with more than 60 years of experience, and implements strict business policies. Advanced processing machines ensure the accuracy of all parts, workers have operating licenses, parts have been processed many times, and transmission and electrical components use internationally renowned brands. A series of tests and inspections are carried out throughout the production state.
3. Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly T/T.
4. Q: How long is the warranty period of your products?
A: 12 months.
5. Q: I have not done business with your company before, how can I trust your company?
A: Our company has been in Alibaba for 14 years, providing various certificates
6. Q: What are your company's shipping terms and delivery time?
A: Each is customized 60-90days
7. Q: Do you give any discount?
A: I will definitely try my best to help you get the best deal
