Specifications
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
bowl
Place of Origin :
Jiangsu, China
Brand Name :
HUADING
warranty :
1 Year
productivity :
/
weight (kg) :
1200
Processing Type :
Centrifuge
Dimension(L*W*H) :
/
Power(W) :
5.5-132kw
Voltage :
220V Electrical Equipment, 380 V, 110 V
Bowl diameter :
186 - 720 mm
Bowl length :
744 - 3000 mm
Bowl speed :
2000 - 6000 rpm
G-forcee :
1600 - 4000 g
Weight :
600 - 8000 Kg
Primary motor :
5.5 - 132 Kw
Secondary motor :
2.2 - 45 Kw
Material :
AISI 304/ 316/ 316L/ duplex steel
Noise :
< 88 dB
Product Keywords :
decanter centrifuge handbook pdf
MOQ :
1 set
Price :
$25,000-30,000 / set
Description
Manufacturer Decanter Centrifuge Handbook Pdf of CE StandardManufacturer Decanter Centrifuge Handbook Pdf of CE Standard
Product Description

Manufacturer decanter centrifuge handbook pdf of CE Standard

Centrifugal separation solutions from technology leader, since 1954

Product Detail

Bowl diameter 186 - 720 mm
Bowl length 744 - 3000 mm
Bowl speed 2000 - 6000 rpm
G-forcee 1600 - 4000 g
Weight 600 - 8000 Kg
Primary motor 5.5 - 132 Kw
Secondary motor 2.2 - 45 Kw
Material AISI 304/ 316/ 316L/ duplex steel
Noise < 88 dB
Product Keywords decanter centrifuge handbook pdf

Features:

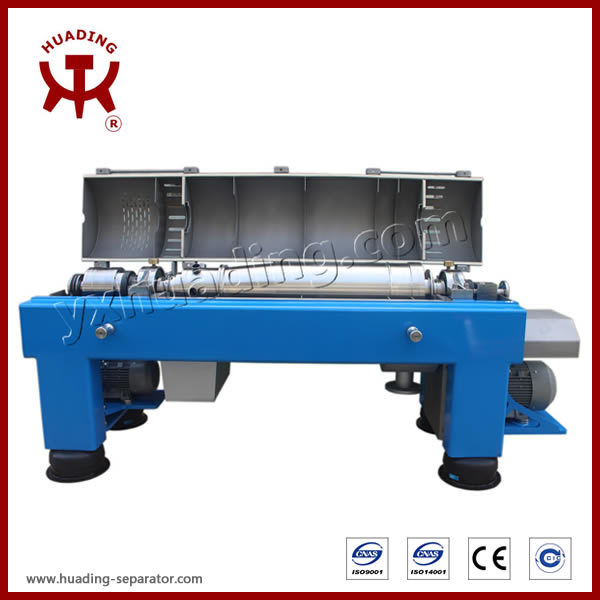

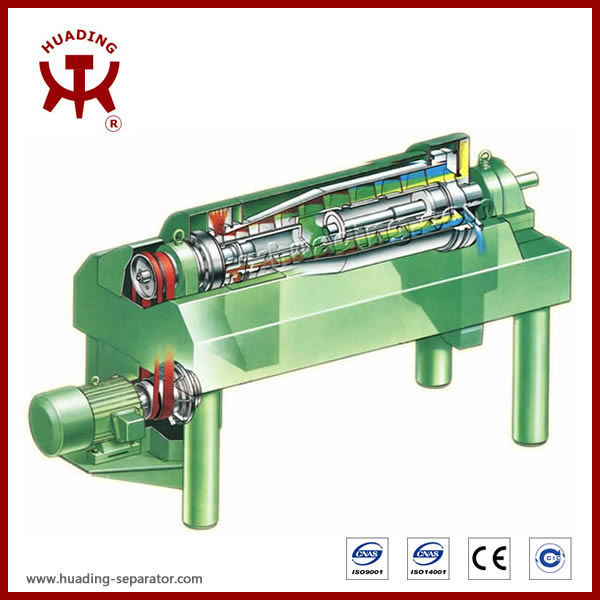

The rotating part of these decanter tricanter centrifuges is mounted on a compact, in-line frame, with main bearings at both ends. Vibration dampers are placed under the frame. The rotating part is enclosed in a casing with a cover and a bottom section with integrated outlets for both solids and the liquid being removed.

Quality assurance:

- JB/T502-2015 Chinese national standard of decanter centrifuge
- 2006/42/EC Machinery Directive
- 2014/35/EU Low voltage Directive
- 2014/30/EU Electromagnetic compatibility Directive
- Quality management system of ISO9001-2000

Material

The bowl, conveyor, inlet tube, outlets, cover and other parts in direct contact with the process media are all made of stainless steel. The discharge ports, conveyor flights and feed zone are protected with materials that are highly resistant to erosion. The frame is made of mild steel with an epoxy enamel finish.

Wear protection

Huading Separator supply a wide range of wear protection to meet the requirements of the many different applications, including:

- Welded hard facing or spray coating

- Ceramic

- Tungsten carbide tiles

- Chilled hard metal portcastings

- Plastic liners

Technical specification

Huading Separator has been developing and manufacturing decanters for decades and is one of the Chinese

leading decanter manufacturers.Huading Separator has more experience and expertise than any other decanter manufacturer when it comes to applying and using decanters for the purpose of industrial & municipal wastewater treatment.

bowl ID
(mm)		 bowl speed
(rpm)		 L / D g - force capacity
(m3/h)		 solids removal
(m3/h)		 primary motor
(Kw)		 Weight
(Kg)		 Dimension
(mm)
250 4800~5400 3.0~5.0 2000~3500 3~5 0.4 11 760 1600×1100×850
300 4200~4600 3.0~5.0 2000~3500 3~15 0.8 11~15 1500 2470×1230×850
350 3700~4200 3.0~5.0 2000~3500 5~20 1.2 5~22 2000 2790×1300×880
400 3200~3900 3.0~4.8 2000~3500 5~30 2 18.5~30 2600 2950×1400×850
450 3000~3700 3.0~5.0 2000~3500 5~45 2.5 22~37 3200 3300×1500×920
530 2700~3450 3.0~5.0 2000~3500 10~80 5 30~55 5200 3730×1600×1100
580 2600~3300 3.0~5.0 2000~3500 10~90 6 45~75 6900 4000×1400×1600
650 2400~3100 3.0~5.0 2000~3500 20~105 8 37~90 8200 4300×1900×1350
760 2200~2900 3.0~5.0 2000~3500 30~120 12 55~135 12000 5000×2500×1500
900 1800~2600 3.0~5.0 2000~3500 40~180 16 75~160 18000 6500×2700×1500

After service

Technical service:

- technical direction when installation, debugging

- training for operation and maintain worker

Training:

- separator working principle and structure

- operation regulation and attention

- machine maintains

Experience

Huading Separator has been developing and manufacturing centrifuges for nearly 60 years, and is one of the Chinese leading manufacturer. Huading Separator has more experience and expertise than any other separator manufacturer when it comes to applying and using decanter centrifuge for the purpose of continuous separation.

For more information, please refer to:huading-separator.com
