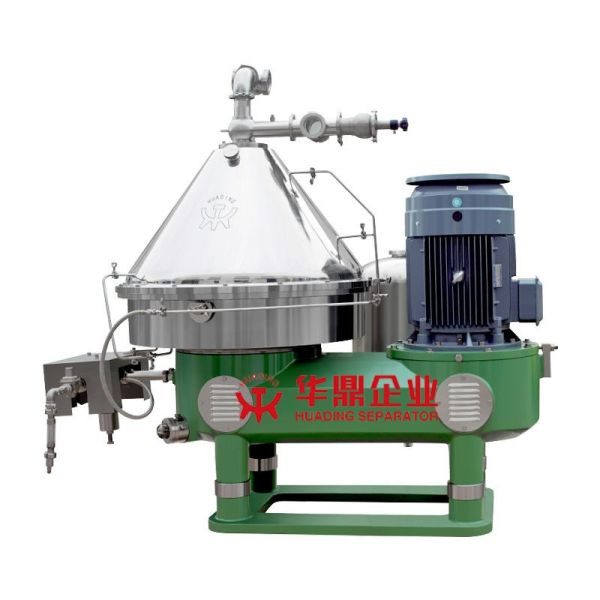

Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance
Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance
Specifications
Brand Name :
HUADING
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
$24,000-25,000 / set
Payment Terms :
T/T,Western Union
Supply Ability :
40 set / months
Delivery Time :
60 working days
Packaging Details :
Standard seaworthy package
Application :
Food chemicals, Fruit and vegetable beverages
Material :
Stainless Steel
Solids holding space :
2 - 50 L
Description :
Mechanical Separation Concentration
voltage :
Customizable
Inlet pressure :
0-0.1 Mpa
Liquid outlet pressure :
0.2-0.6 Mpa
Structure :
vertic disc type
Description

Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance

Centrifugal Separation Technology
The disc stack separator separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers.

Are oil separators necessary?
Installing an Air Oil Separator is a proactive step that can save you significant time and money on future maintenance. By preventing oil and carbon from building up on your intake valves—a common issue on direct-injection engines—you can avoid costly and labor-intensive valve cleaning services down the road.

Company Advantages
60+Years Experience
40000+Installations
100+Centrifuge Models
Huading Separator is one of the market leaders in centrifugal separating technology, with over 60 years of experience developing and manufacturing disc stack centrifuges. Our equipment is trusted by well-known manufacturers worldwide in food, pharmaceutical, and industrial applications
Technical Specifications
Dimensions 2000 × 1200 × 1800mm
Drive gear / belt
Bowl speed 4000 - 10000 rpm
Centrifugal force > 10,000 g
Bowl volume 8 - 300 L
Bowl weight 50-15000 Kg
Solids holding space 2 - 50 L
Inlet pressure 0-0.1 Mpa
Liquid outlet pressure 0.2-0.6 Mpa
Starting time 5 - 30 mins
Stopping time (no brakes) > 40 mins
Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance
Process Components

1 Inlet tube

2 Central bore

3 Distributor

4 Distributor bore

5 Rising channels

6 Light phase centripetal pump

7 Heavy phase centripetal pump

Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance
2-Phase Separation Process
Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe, and is accelerated in the distributor before entering the disc stack. The separation of liquid-solids takes place between the discs, with the liquid phase moving through the disc stack to the centre and pumped out via built-in paring disc.
Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance
3-Phase Separation Process
The suspension to be separated is fed into the separator bowl from the top through a feeding pipe and enters the disc stack. The heavy phase and heavy sludge are forced towards the periphery of the bowl, while the light phase flows towards the centre. Solids collects in the sludge space and is discharged intermittently and automatically.
Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance
Manufacturing Excellence
Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance
Packaging & Shipping
Package: Standard export carton packing
Delivery Time: 30-90 days after confirming order (varies by production season and order quantity)
Disc Oil Separator Providing Oil Separation to Maintain Cleaner Intake Valves and Reduce the Need for Frequent Engine Maintenance
