Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Specifications
Warranty :
3 years
Customized support :
OEM
Place of Origin :
Anhui, China
Brand Name :
ZHICE-ELEC
Material :
/
Color :
/
Power :
/
Product name :
multifunction loop calibrator
Application :
Measure, Simulate, Output process signal
Function :
voltage/mA/RTD/thermocouple/frequency/pulse and resistance
Feature :
provide 24V loop power
Communication :
HART, 232 and Bluetooth
Frequency :
1 Hz~1000MHz
Size :
208*95*45mm
Weight :
610g
Name :
Process Calibration
Display :
LCD
MOQ :
1 piece
Price :
$423.00/units 5-14 units
Description
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator

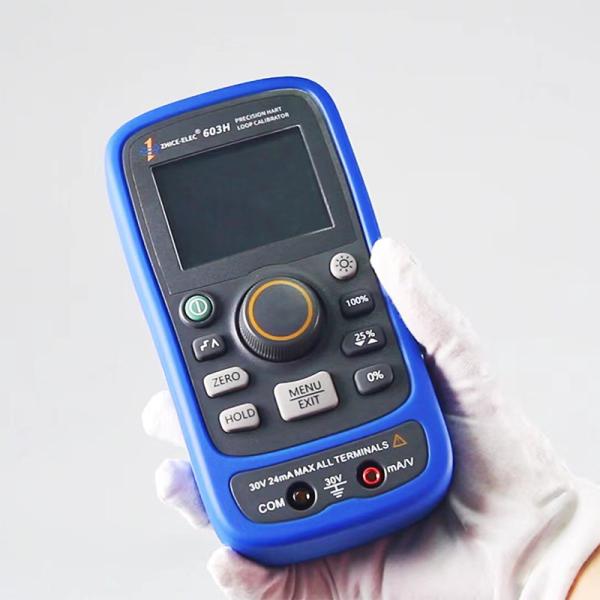

603H loop calibrator is a time-saving solution and generate high-quality results.
603H comes with HART communication function and supports one selected group of HART general instructions and general application instructions.
603H is a cost effective and compact loop calibrator; and a powerful HART communication tool.
603H has a built-in universal HART modem to execute the following commands:
read information; read tags, descriptors and calibration date; read sensor PV information; read PV output information;
read long tags; write PV range (upper and lower limit); write the main variable unit, short address and short label; enter/exit
the fixed current mode; adjust the zero point offset; fine-tune the DAC zero point (mA output: 4mA); fine-tune the DAC gain (mA output: 20mA)
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Measure
Range
Measuring
Range
Resolution
Accuracy
Current measurement with mA clamp
20.99mA
0-20.99mA
0.01mA
0.2% + 5LSD
100mA
21-100mA
0.1mA
1% + 5LSD
Current measurement
24mA
0-24mA
0.001mA
0.01% + 2LSD (23℃ +5℃ full range)
Current measurement
with 24V voltage
24mA
0-24mA
0.001mA
0.01% + 2LSD
(23°C+5°c full range)
Voltage measurement
30V
0-30V
0.001V
0.01% + 2LSD
(23°C+5°C full range)
Source
Range
Measuring
Resolution
Accuracy
Current sourcing
24mA
0-24mA
0.001mA
0.01% + 2LSD
(23°C+5°C full range)
Current simulating
24mA
0-24mA
0.001mA
0.01% + 2LSD
(23°C+5°C full range)
Voltage sourcing
10V
0-10V
0.001V
HART communication
603H comes with HART communication function
HART resistor
250Ω
Loop power voltage
24C DC@20mA
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator
Signal Generator 725 726 754 Replacement Resistance Calibration Lab Multifunction Loop Calibrator

Q: Are you a trading company or manufacture? A: We are a professional manufacture specialized in temperature humidity instrument and environment monitor system for 20 years.
Q: Who are we? A: We have a complete product line of precision temperature measurement and control such as temperature sensors, transmitters, temperature detection instruments and temperature calibration equipment.
Q: Is there any stock? A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:Why to choose Hefei Zhice-elec products ? 1.Instruments has been exported to over 50 countries. 2.100% QC inspection Before Shipment. 3.ISO,CE,SGS standard and factory price. 4.Our instruments has been 100% recognized by Bureau of National Metrology. 5.Excellent product quality and strong technical support capability.
