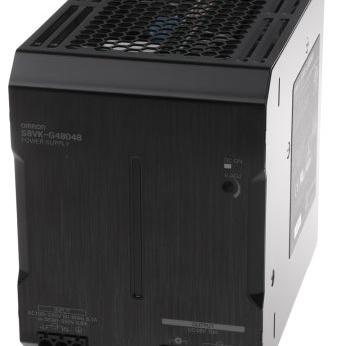

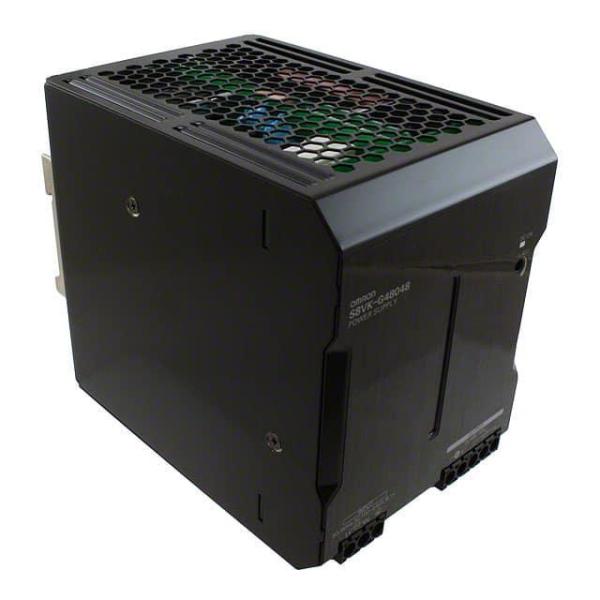

Switch Mode Power SupplyS8VK-G (15/30/60/120/240/480-W Models)

PLC controller DIN Rail Power Supplies 3A 100-240VAC S8VK-G series Switching power supply S8VK-G01505 S8VK-G48024 S8VK-G24048 S8VK-G12024 S8VK-G03012 S8VK-G06024

Reliable and Easy Operation-Worldwide Power SupplyResistant in tough environmentsEasy and fast installationThe most compact class on the market• Universal input for worldwide applications:100 to 240 VAC (85 to 264 VAC)• DC input can be available: 90 to 350 VDC• Possible for 2-phase input usage.• Wide operation temperature range: –40 to 70 °C• Power Boost function at 120%• Safety standards:UL508/60950-1, CSA C22.2 No. 107.1/60950-1EN50178, EN60950-1.Lloyd’s standards, EN60204-1 PELVSafety of Power Transformers: EN61558-2-16• ANSI/ISA 12.12.01 (excluding 480-W models)• CSA C22.2 No.213 (excluding 480-W models)• 15-W,30-W, and 60-W models conform toUL Class 2 output Standards• EMS: EN 61204-3EMI: EN 61204-3 Class B• Three years Warranty *1*1.Refer to Period and Terms of Warranty on page 22.

Overvoltage ProtectionConsider the possibility of an overvoltage and design the system sothat the load will not be subjected to an excessive voltage even if thefeedback circuit in the Power Supply fails. If an excessive voltage thatis approximately 130% of the rated voltage or more is output, theoutput voltage is shut OFF. Reset the input power by turning it OFFfor at least three minutes and then turning it back ON again.

Two phases application for Single phase modelsFor All Single phase Models, S8VK-GBasically OMRON single phase power supply can be used on twophases of a 3–phase-system when some of conditions satisfy likebelow.1. The supplying voltage is below the maximum rated input.OMRON Power supply allows the input voltage equivalent or lessthan 240 VAC+10%.Please confirm the input voltage between two lines if the inputvoltage satisfies this condition before connecting.2. The external protector is needed on N input line to secure a safety.N line has no protection of a fuse internally.An appropriate fuse or circuit breaker should be connected on Ninput line like the following.

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
