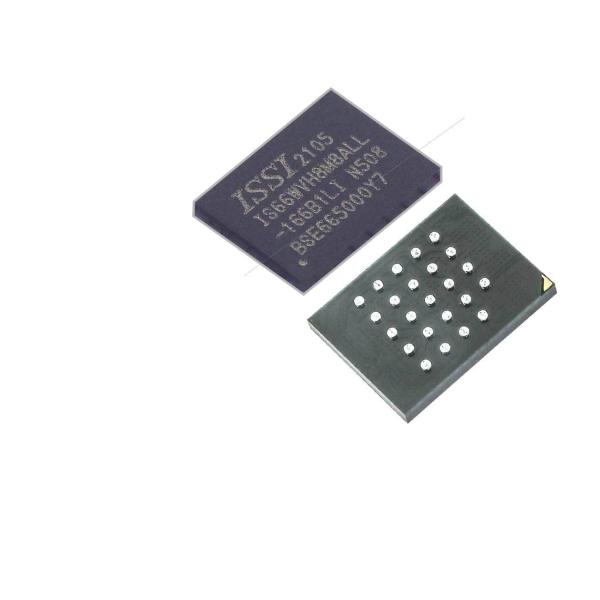

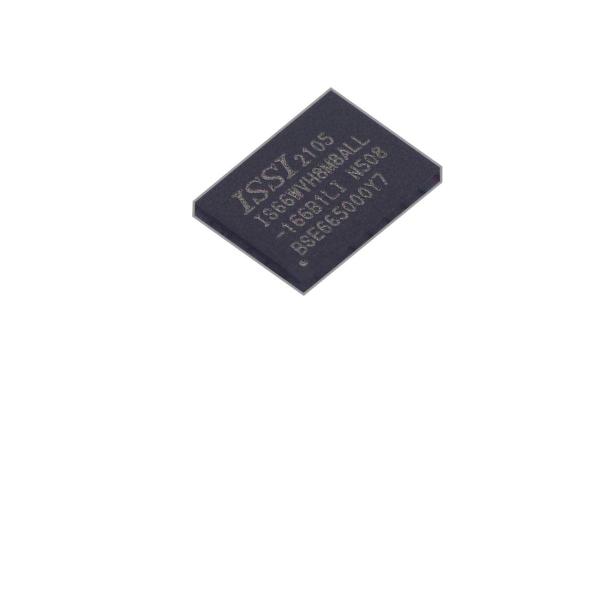

PSRAM DRAM 64Mb 8Mbx8 166MHz HyperRAM Pseudo Static RandomAccess Memory IS66WVH8M8ALL-166B1LI

OverviewThe IS66/67WVH8M8ALL/BLL are integrated memory device containing 64Mbit Pseudo Static RandomAccess Memory using a self-refresh DRAM array organized as 8M words by 8 bits. The device supports aHyperBus interface, Very Low Signal Count (Address, Command and data through 8 DQ pins), HiddenRefresh Operation, and Automotive Temperature Operation, designed specially for Mobile andAutomotive applications.

Distinctive CharacteristicsHyperBusTM Low Signal Count Interface

 3.0V I/O, 11 bus signals– Single ended clock (CK) 1.8V I/O, 12 bus signals– Differential clock (CK, CK#) Chip Select (CS#) 8-bit data bus (DQ[7:0]) Read-Write Data Strobe (RWDS)– Bidirectional Data Strobe / Mask– Output at the start of all transactions to indicate refreshlatency– Output during read transactions as Read Data Strobe– Input during write transactions as Write Data Mask RWDS DCARS Timing– During read transactions RWDS is offset by a secondclock, phase shifted from CK– The Phase Shifted Clock is used to move the RWDStransition edge within the read data eye

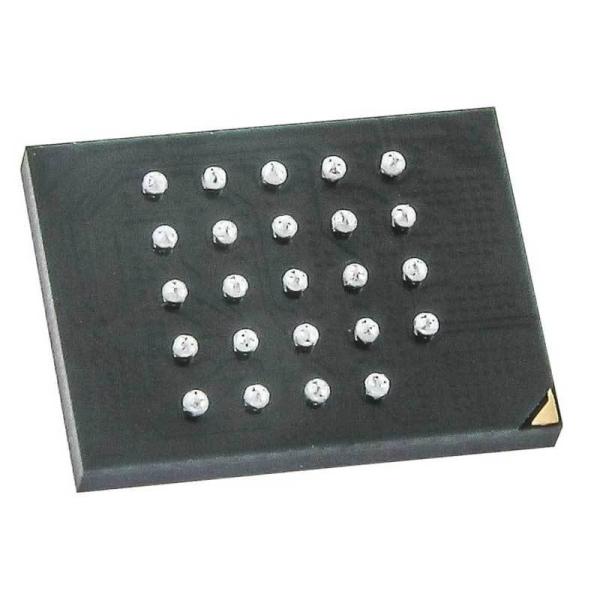

High Performance Up to 333MB/s Double-Data Rate (DDR) - two data transfers per clock 166-MHz clock rate (333 MB/s) at 1.8V VCC 100-MHz clock rate (200 MB/s) at 3.0V VCC Sequential burst transactions Configurable Burst Characteristics– Wrapped burst lengths:– 16 bytes (8 clocks)– 32 bytes (16 clocks)– 64 bytes (32 clocks)– 128 bytes (64 clocks)– Linear burst– Hybrid option - one wrapped burst followed by linear burst– Wrapped or linear burst type selected in each transaction– Configurable output drive strength Package– 24-ball FBGA

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Q&A

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit.

2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
